Description

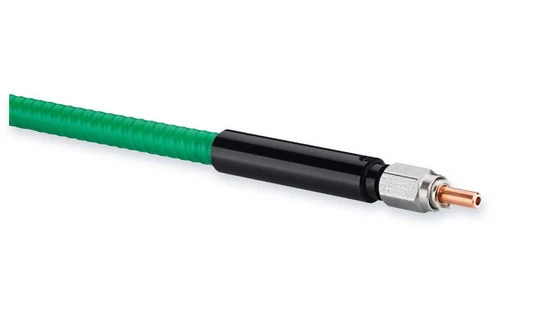

FiberTech® LD-80 Laser Cables are designed to meet the demands of industrial laser applications with precision and durability. These cables are engineered with LD-80 freestanding fiber connectors, ensuring a robust connection that can withstand the rigors of industrial environments. The PVC-coated steel-armored protection tube offers enhanced durability, protecting the delicate fibers within from physical damage and environmental factors.
The laser cables feature a copper-based high-accuracy fiber ferrule. This innovative design element is crucial for effective heat removal and maintaining high fiber centricity. The attention to detail in the construction of these cables ensures that they can handle laser beam delivery of up to 800 W, making them suitable for a wide range of industrial laser applications.
Construction and Design of the FiberTech® LD-80 cables incorporate VIS-IR all-silica step-index fibers with a numerical aperture (NA) of 0.22, although an NA of 0.12 is available upon request. The connectors, measuring Ø 4 mm x 10 mm, are equipped with keys to prevent twisting and feature a free-standing fiber tip. The hex nut design further contributes to the cable’s durability and ease of use. The squarelock design with a green PVC coating not only adds an extra layer of protection but also provides electrical isolation from end to end, ensuring safety and reliability in operation.
With fiber centricity maintained at less than 5 µm from the fiber core to the ferrule, these cables offer unmatched precision. All copper alloy parts are utilized to enhance heat dissipation, making these cables an ideal choice for high-power laser applications. Whether you need cables with lengths of 2 meters, 3 meters, or 5 meters, FiberTech® LD-80 laser cables provide the versatility and performance necessary for demanding industrial settings.
LD80 Laser Cable - FCL30-10200-2000
Specifications |
|
|---|---|
| Fiber Core Diameter: | 100 um |
| Cable Length: | 2 m |
Features
- High-Performance Laser Cable: The FiberTech® LD-80 laser cables are designed for industrial lasers, ensuring efficient laser beam delivery up to 800 W.
- Fiber Core Options: Available in multiple fiber core diameters: 100 µm, 200 µm, 400 µm, 600 µm, 800 µm, and 1000 µm to suit various applications.
- Customizable Cable Lengths: Choose from cable lengths of 2 m, 3 m, and 5 m to fit your specific needs.
- Advanced Connector Design: Features Ø 4 mm x 10 mm connectors with a key to prevent twisting, and a free-standing fiber tip for precision.
- Superior Heat Management: Copper-based high-accuracy fiber ferrule for effective heat removal and high fiber centricity, ensuring performance stability.
- Durable Protection: Equipped with a PVC-coated steel-armored protection tube, providing robust protection against environmental factors.
- Enhanced Fiber Alignment: Ensures fiber centricity of less than 5 µm from fiber core to ferrule for optimal performance.
- Electrical Isolation: Offers electrical isolation from end to end, enhancing safety during operation.
- Versatile Fiber Options: VIS-IR all-silica (silica/silica) step-index fiber with NA = 0.22, with options for NA = 0.12 and graded-index fiber on request.
Applications
- Industrial Laser Beam Delivery: Ideal for transmitting laser beams in cutting, welding, and marking processes.
- Automotive Manufacturing: Supports robotic and automated laser systems requiring durable and precise fiber cables.
- Material Processing: Suitable for laser machining, engraving, and surface treatments.
- Laser System Integration: Provides reliable fiber connections for industrial and research laser systems.
- High-Power Laser Applications: Designed for environments requiring laser power handling up to 800 W.
Frequently Asked Questions
The LD80 Laser Cable is composed of VIS-IR all-silica (silica/silica) step-index fiber with NA = 0.22 NA = 0.12 on request. Graded-index fiber on request, copper alloy parts for improved heat removal, and a green PVC-coated protection tube.
The fiber centricity of the LD80 Laser Cable is < 5 µm fiber core to ferrule.
The LD80 Laser Cable is used for laser beam delivery of up to 800 W.
The fiber core diameter of the LD80 Laser Cable is 100 µm.
The maximum length of the LD80 Laser Cable is 1000 cm.
