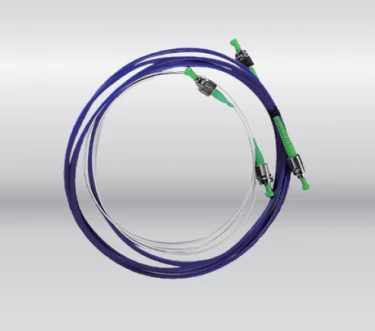

PMJ-D Series Short Wavelength Polarization Maintaining Fiber Patchcords

Description

Connet PMJ-D series short wavelength polarization maintaining fiber patchcords are specially designed for short wavelength applications, ranging from 350nm to 900nm. The typical working wavelength is 405nm, 488nm, 630nm and 780nm.

Connet PMJ-D series short wavelength polarization maintaining fiber Patchcords adopt PANDA type polarization maintaining fiber and the slow Axis alignment, along with high-precision FC fiber connectors and ceramic ferrules for high quality.

Connet uses each of the most demanding processes to carefully craft each polarization-maintaining fiber patchcords to ensure high return loss and high polarization extinction ratio(PER), concentricity deviation, control of shaft angle deviation and strict reliability experiments make these polarization-maintaining fiber patchcords meet the industry\'s highest quality standards.

Connet PMJ-D series short wavelength polarization maintaining fiber patchcords use Narrow Key (2.0mm) FC fiber optic connectors with multiple connection options, including FC / UPC, FC / APC, and hybrid FC / UPC to FC / APC patchcords.

Specifications

Insertion Loss:	1 dB
Return Loss:	55 dB
Polarization Extinction Ratio (PER):	20 dB
Wavelength Range:	400 – 1100 nm
Numerical Aperture (NA):	0.12
Max Optical Power:	Not Specified
Core Diameter:	3 um
Cladding Diameter:	Not Specified
Core Diameter (model Dependent):	3.0, 3.5, 4.5 um

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Narrow key FC connector
High PER
High return loss
Low insertion loss
PANDA PMF

Applications

Laser to PMF coupling
Fiber Optic sensing
Coherent communication
Component pigtails
Other scientific research

Request Quote

To: Connet Laser Technology Co., Ltd.
Re: PMJ-D Series Short Wavelength Polarization Maintaining Fiber Patchcords

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: China
Sold by:: Connet Laser Technology Co., Ltd. ✓ Verified Supplier
On FindLight:: since 2016

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the applications of the Connet PMJ-D series short wavelength polarization maintaining fiber patchcords?

The applications include laser to PMF coupling, fiber optic sensing, coherent communication, component pigtails, and other scientific research.

What are the features of the Connet PMJ-D series short wavelength polarization maintaining fiber patchcords?

The features include narrow key FC connector, high PER, high return loss, low insertion loss, and PANDA PMF.

What is the ordering information for the Connet PMJ-D series short wavelength polarization maintaining fiber patchcords?

The ordering information includes part number, fiber length, jacket size, connector type, and tolerance.

What is the typical working wavelength of the Connet PMJ-D series short wavelength polarization maintaining fiber patchcords?

The typical working wavelength is 405nm, 488nm, 630nm and 780nm.

What type of fiber and connectors are used in the Connet PMJ-D series short wavelength polarization maintaining fiber patchcords?

The Connet PMJ-D series short wavelength polarization maintaining fiber patchcords adopt PANDA type polarization maintaining fiber and high-precision FC fiber connectors with ceramic ferrules.
