Polarization Maintaining (PM) Fiber Patch Cable
Description
The Polarization Maintaining (PM) Fiber Patch Cable is engineered for high-precision optical applications requiring stable polarization control and minimal optical loss. Designed to meet Telcordia specifications, this cable utilizes high-quality Panda PM fiber and supports a wide range of industry-standard connectors, including FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, and LC/APC.
Spanning a broad wavelength range from 460 nm to 2000 nm, this cable delivers excellent performance in various photonic systems. It features low insertion loss—down to 0.2 dB typical at telecom wavelengths—and high extinction ratios of ≥20 dB (standard), ≥28 dB (high grade), and ≥30 dB upon request. The default configuration aligns the fiber's slow axis with the connector key, with fast axis alignment available as an option.
The cable is offered with multiple jacket types and customizable lengths, making it ideal for PM sensing systems, polarization-sensitive instrumentation, and other precision optical applications. Built for reliability, it ensures consistent operation across an extended temperature range from -5°C to +70°C, with tight polarization angle tolerances and excellent mechanical stability.
Polarization Maintaining (PM) Fiber Patch Cable
Specifications |
|
|---|---|
| Wavelength (nm): | 460, 630, 780, 830, 850, 980, 1060, 1064, 1310, 1550, 2000 |
| Connector: | None, FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, LC/APC, Custom … |
| Extinction Ratio @23°C (dB): | ≥20 (standard), ≥23 (medium), ≥28 (high), ≥30 (on request) |
| Return Loss (dB): | ≥50(UPC Type), ≥60(APC Type) |
| Fiber Type: | Panda Polarization-maintaining (PM) fiber |
| Key Orientation: | Slow axis aligned(default); Fast axis aligned |
| Polarization Angle Tolerance: | ±3 degrees (standard grade); ±1.5 degrees (high grade) |

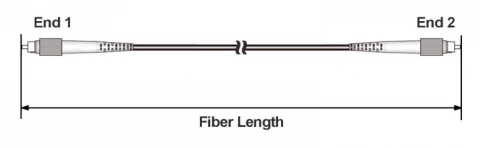

| Length Tolerance: | ±0.1 m or 10% of length, whichever is larger |
| Operating Temperature: | -5 to +70 °C |
| Storage Temperature: | -40 to +85 °C |
| Jacket Options: | Ø250 μm bare, Ø900 μm loose tube, Ø2.0 mm, Ø3.0 mm cable |
| Customization: | High ER, length, connector type, key alignment, jacketing – all available on request |
Features
- High Extinction Ratio: Standard ≥20 dB; up to ≥30 dB available on request
- Low Insertion Loss: As low as 0.2 dB typical at telecom wavelengths
- Industry Standard Connectors: FC, SC, LC (UPC/APC); custom options available
- High Reliability: Compliant with Telcordia performance standards
- Customizable Design: Length, fiber type, connector, and key orientation configurable
- Precision Alignment: Slow or fast axis alignment with tight angle tolerance (±3°/±1.5°)
Applications
- PM Fiber Sensing Systems: Maintains polarization for accurate signal transmission
- Optical Testing Instruments: Ensures high signal integrity for lab-grade measurements
- Quantum & Photonics Research: Supports sensitive polarization-dependent experiments
- Telecommunication Networks: Enhances PM fiber links with low loss and high ER
- Laser Systems and Interferometry: Suitable for stability-critical optical paths
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2021
Frequently Asked Questions
A Polarization Maintaining (PM) Fiber Patch Cable is a cable made from Panda polarization-maintaining fibers and high-quality connectors that are compatible with industry standards. It is used for high-performance applications and features low insertion loss, high extinction ratio, and stability.
The features of the Polarization Maintaining (PM) Fiber Patch Cable include being designed to meet Telcordia specifications, compatibility with industry standard connectors, the possibility of extinction ratio better than 30 dB on request, and high reliability and stability.
The typical specifications of the Polarization Maintaining Fiber Patch Cable include connector types such as FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, LC/APC, and others on request. It also includes wavelength ranges, insertion loss, extinction ratio, return loss, fiber type, key orientation, polarization angle tolerance, length tolerance, operating temperature, and storage temperature.
Yes, the Polarization Maintaining (PM) Fiber Patch Cable is customizable. Customers can contact the sales representative for product customization options, including high extinction ratios, custom ferrule terminations, and special connector types.
The Polarization Maintaining (PM) Fiber Patch Cable is commonly used in PM fiber sensing systems, PM-applications, and testing instruments.
