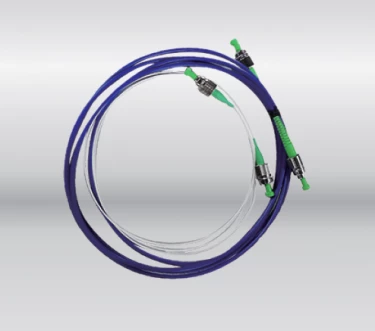

Thumbnail of PMJ-LMA Series Polarization Maintaining Fiber Patchcords photo 1

Description

Connet PMJ-LMA series polarization maintaining fiber patchcords adopt lager mode area (LMA) fiber, and specially designed for high power fiber laser and amplifier. Connet develops a wide range of lager mode area fiber patchcords in the 1µm, 1.5µm and 2µm bands for various applications.

Connet PMJ-LMA series polarization maintaining fiber patchcords adopt PANDA type lager mode area polarization maintaining fiber and the slow Axis alignment, along with high-precision FC fiber connectors and ceramic ferrules for high quality.

Connet uses each of the most demanding processes to carefully craft each polarization-maintaining fiber patchcords to ensure high return loss and high polarization extinction ratio(PER), concentricity deviation, control of shaft angle deviation and strict reliability experiments make these polarization-maintaining fiber patchcords meet the industry's highest quality standards.

Connet PMJ-LMA series polarization maintaining fiber patchcords use Narrow Key (2.0mm) FC fiber optic connectors with multiple connection options, including FC / UPC, FC / APC, and hybrid FC / UPC to FC / APC patchcords.

PMJ-LMA Series Polarization Maintaining Fiber Patchcords

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Insertion Loss: 0.5 dB
Return Loss: -65 dB
Polarization Extinction Ratio (PER): 18 dB
Wavelength Range: 1000 – 2000 nm
Numerical Aperture (NA): Not Specified
Max Optical Power: Not Specified
Core Diameter: Not Specified
Cladding Diameter: Not Specified
Wavelength Range: 1.0, 1.5, 2.0 um

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Narrow key FC connector
  • High PER
  • High return loss
  • Low insertion loss
  • PANDA PMF

Applications

  • Fiber laser
  • Linear polarized fiber amplifier
  • Coherent LIDAR
  • Component pigtails
  • Other scientific research

Frequently Asked Questions

What is the Connet PMJ-LMA series polarization maintaining fiber patchcord used for?
The Connet PMJ-LMA series polarization maintaining fiber patchcord is designed for high power fiber laser and amplifier applications, as well as other scientific research.
What type of fiber does the Connet PMJ-LMA series polarization maintaining fiber patchcord use?
The Connet PMJ-LMA series polarization maintaining fiber patchcord uses PANDA type lager mode area polarization maintaining fiber.
What are the connector options for the Connet PMJ-LMA series polarization maintaining fiber patchcord?
The Connet PMJ-LMA series polarization maintaining fiber patchcord uses Narrow Key (2.0mm) FC fiber optic connectors with multiple connection options, including FC / UPC, FC / APC, and hybrid FC / UPC to FC / APC patchcords.
What is the polarization extinction ratio (PER) of the Connet PMJ-LMA series polarization maintaining fiber patchcord?
The Connet PMJ-LMA series polarization maintaining fiber patchcord has a high polarization extinction ratio (PER) of greater than 18 dB.
What is the operating temperature range for the Connet PMJ-LMA series polarization maintaining fiber patchcord?
The Connet PMJ-LMA series polarization maintaining fiber patchcord has an operating temperature range of -20~+70 ℃.

Got more questions? Use the inquiry form to ask the supplier directly.
