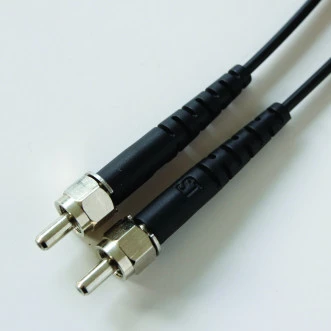

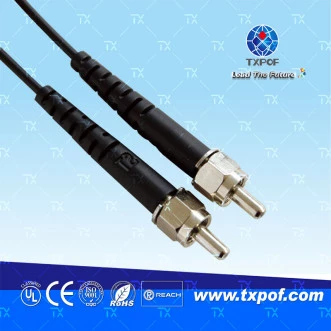

Industrial sensors SMA 905 Connector POF Patch Cords cables
Description
Industrial Fiber Optics manufactures standard product can be laid directly in the computer room and all kinds of bad environment, optical fiber connector is removable(activities)between optical fiber and optical fiber connection device,it connects two surfaces of fibers precisely,so that the optical fibers could receive maxmum light energy,
and minimize the impact on the system to intervene due to optical links,which is the basic requirement of optical fiber connector.To a certain extent,fiber optic connector affects the optical transmission reliability and the performance of the system.
Industrial sensors SMA 905 Connector POF Patch Cords cables
Specifications |
|
|---|---|
| Core Diameter: | 980 um |
| Wavelength Range: | 530-650um |
| Fiber Core Material: | Plastic |
| Cable Length: | 1/optional m |
| Transmission Loss(at 650nm): | ≤180 dB/km |
| Connectors: | SMA 905 |
| Inner Fiber Diameter: | 1.0mm |
| Outer Jacket Diameter: | 2.2mm |
| Core Material: | PMMA |
| Application : | Industrial control/data transmission |
| Product Code: | TX-SMA905/SMA905 |
| Jumper Length: | 1 meter/2meter/5meter/optional |
Features
1. Low insertion loss
2. Good repeatability
3. Good interchangeability
4. High transmission
5. Resistance to electromagnetic interference and electromagnetic radiation
Applications
1. Optical fiber communication system
2. Optical fiber sensor
3. Optical fiber access network
4. Optical fiber data transmission
5. Optical fiber test equipment
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Jiangsu TX Plastic Optical Fibers Co.,Ltd -
On FindLight:
since 2022
Frequently Asked Questions
The purpose of these cables is to provide a removable connection between optical fibers, ensuring maximum light energy transmission and minimizing system intervention.
The features of these cables include low insertion loss, good repeatability, good interchangeability, high transmission, and resistance to electromagnetic interference and radiation.
These cables are commonly used in optical fiber communication systems, optical fiber sensors, optical fiber access networks, optical fiber data transmission, and optical fiber test equipment.
Yes, these cables are designed to be used in all kinds of bad environments, including computer rooms.
Yes, these cables are designed to be compatible with standard optical fiber connectors, ensuring easy connectivity with existing systems.
