Description

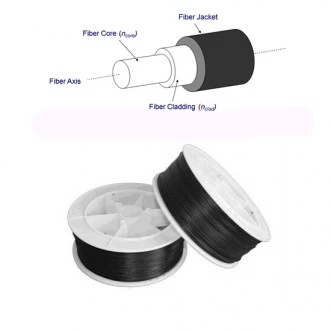

Our CCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable is used to replace Broadcom AFBR-HUD500Z duplex plastic optical fiber (POF) cable. It is a halogen-free, robust duplex plastic optical fiber (POF) cable, which comes in a single spool of 500m duplex POF consisting of two step-index fibers each sheathed in a black polyethylene jacket with an outer diameter of 2.2 mm. Inside the covering jacket has a diameter of 1 mm. The duplex POF is joined with a zipcord web.
The cable complies with UL VW-1 flame retardant specification.

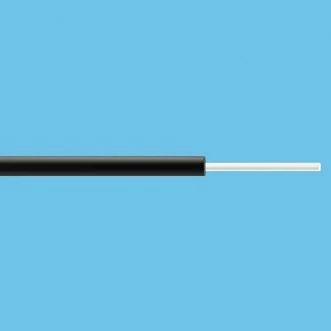

AFBR-HUS500Z Simplex Plastic Optical Fiber-POF Cable
Specifications
| Core Diameter: | 1000 um |
|---|---|
| Wavelength Range: | 525 – 650 um |
| Fiber Core Material: | Plastic |
| Cable Length: | 500 m |
| Cladding Material: | Fluorinated Polymer |
| Jacket Material And Color: | Polyvinyl chloride (Black) |
| Refractive Index Profile: | Step-index |
| Numerical Aperture: | 0.50 |
| Approximate Weight: | 5.5 g/m |
| Outer Diameter: | 2.2 ± .07 mm |
| Fiber Tensile Strength: | 70 N |
| Fiber Counts: | 1 |
Download Data Sheet
Features
- Compatible with the Broadcom Versatile Link family of connectors and fiber optic components as transmitters and receivers
- 1mm POF avaialbe in 1 grade with 0.19 dB/m typical attenuation (-40°C to +85°C)
- Halogen-free.
- Flame-retardant
Applications
- Industrial Data Links for Factory Automation and Plant Control
- Intra-system Links; Board-to-board, Rack-to-rack
- Telecommunications Switching Systems
- Computer-to-peripheral Data Links, PC Bus Extension
- Proprietary LANs
- Digitalized Video
- Medical Instruments
- Reduction of Lighting and Voltage transient Susceptibility
- High Voltage Isolation
Frequently Asked Questions
What is the AFBR-HUS500Z Simplex Plastic Optical Fiber-POF Cable used for?
The AFBR-HUS500Z Simplex Plastic Optical Fiber-POF Cable is used for industrial data links for factory automation and plant control, intra-system links, board-to-board, rack-to-rack telecommunications switching systems, computer-to-peripheral data links, PC bus extension, proprietary LANs, digitalized video, medical instruments, reduction of lighting and voltage transient susceptibility, and high voltage isolation.
What is the difference between the CCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable and the Broadcom AFBR-HUD500Z duplex plastic optical fiber (POF) cable?
The CCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable is a halogen-free, robust duplex plastic optical fiber (POF) cable, which comes in a single spool of 500m duplex POF consisting of two step-index fibers each sheathed in a black polyethylene jacket with an outer diameter of 2.2 mm. The duplex POF is joined with a zipcord web. The cable complies with UL VW-1 flame retardant specification. The Broadcom AFBR-HUD500Z duplex plastic optical fiber (POF) cable is not flame-retardant.
What are the features of the AFBR-HUS500Z Simplex Plastic Optical Fiber-POF Cable?
The AFBR-HUS500Z Simplex Plastic Optical Fiber-POF Cable is compatible with the Broadcom Versatile Link family of connectors and fiber optic components as transmitters and receivers. It has 1mm POF available in 1 grade with 0.19 dB/m typical attenuation (-40°C to +85°C). It is halogen-free and flame-retardant.
What is the diameter of the covering jacket of the CCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable?
The diameter of the covering jacket of the CCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable is 1 mm.
What certifications does the CCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable have?
The CCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable has passed ROHS and REACH certifications.
