Description
NeuLight BareFibers from WEINERT Fiber Optics are made for use with an open port medical laser system and are designed to be compatible with many of the most popular medical laser systems on the market.
These fibers are manufactured in an ISO13485 environment. They are designed to operating at wavelengths between 500nm and 2200nm, delivering up to100W depending on fiber size. Featuring a SMA-905connector, 3m length, and sterile packaging.

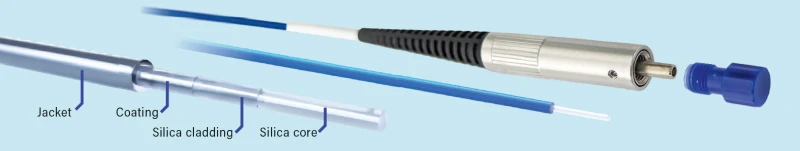

Neulight BareFiber Probes for Surgical Use
Specifications
| Core Diameter: | 200 um |
|---|---|
| Wavelength Range: | 0.5 – 2.2 um |
| Fiber Core Material: | Fused Silica |
| Cable Length: | 3 m |
| Core Diameter (model Based): | 200 - 940 um |
| Clad Diameter (model Based): | 240 - 1000 um |
| Max Input Power (model Based): | 20 - 100 W |
| Max Input Energy (model Based): | 1.5 - 4 J |
| Connector Type: | SMA-905 high power connector |
Download Data Sheet
Features
- Available in standard core sizes of: 200um, 273um, 365um, 400um, 550um, 600um, 800um, and 940um with doped silica cladding
- Power ranges from 20W-100W (depending on core size)
- Engineered and assembled by our teams in Europe and the United States in an ISO13485 environment
- Flat or rounded distal tips
- Disposable or reusable
- Designed with 4-layer all siica fiber and engineered to deliver the power and safety required for successful laser surgeries
- Customizations available
Applications
- Lithotripsy
- Urology
- Oncology
- Aesthetic Treatments
- General Surgery
Frequently Asked Questions
What is the operating wavelength range for NeuLight BareFibers?
The operating wavelength range for NeuLight BareFibers is between 400 nm and 2200 nm.
Are NeuLight BareFibers single-use or reusable?
NeuLight BareFibers are available in both single-use and reusable options.
What is the maximum power rating for NeuLight BareFibers?
NeuLight BareFibers are rated for high power medical laser systems up to 300 W, depending on the fiber size.
What type of connector do NeuLight BareFibers use?
NeuLight BareFibers use an SMA-905 high power connector.
How are NeuLight BareFibers packaged?
NeuLight BareFibers are packaged in an EZ deliver & protect packaging system for ease-of-use in the operating room.
Are NeuLight BareFibers compatible with all laser systems?
NeuLight BareFibers are compatible with most major brands of laser systems equipped with an open SMA-905 connector port.
Where can NeuLight BareFibers be purchased?
NeuLight BareFibers are available from trusted distribution partners in the United States and South America.
