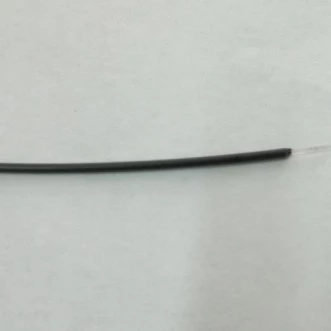

Name: Plastic Optical Fiber Cable - Simplex POF
Brand: Bones Electronics Co., Ltd

Description

Plastic optical fiber cable-simplex pof cable
Item: CC2-1000,equal to GHV 4001
Details：

Polymer Optical Fiber Cable - Simplex POF Cable

This simplex pof cable is also called Plastic Optical Fiber Cable,Polyethylene Jacketed Optical Fiber Cable,polymer optical fiber cable, plastic fiber optic cable, which is mainly used for short distance data transmission.

Basic properties:
Fiber Core Material: PMMA
Cladding Material: Fluorinated Polymer
Jacketing Material: Black PE or PVC
Optical Instruction: Step Index Model
Numerical Aperture: 0.5
Allowable Bend Radius: No less than ten times of optical fiber diameter
Core Refractive Index: 1.492

Specifications

Core Diameter:	1000 um
Wavelength Range:	0.4 – 0.8 um
Fiber Core Material:	Plastic
Cable Length:	10 m
Attenuation@525nm:	0.15 dB/M
Attenuation@650nm:	0.18 dB/M
Roll Length:	2700 m/roll

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

1. Attenuation: 0.15dB/m@525nm;
2. Theoretic bandwidth of 10~20MHz. 50m(Numerical aperture 0.5), 100~200MHz. 50m(Numerical aperture 0.3);
3. Diameter allowance ± 3% in actual production;
4. Working temperature: --20~70 Celsius Degrees;
5. Jacketing material: PE

Applications

1. Signal transmission of sensors;
2. High speed data transmission;
3. Industrial control data links;
4. Military communication;
5. Proprietary LANs or Access Network;
6. Multi-media data link and plant control in vehicles and airplanes;

Request Quote

To: Bones Electronics Co., Ltd
Re: Plastic Optical Fiber Cable - Simplex POF

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: China
Sold by:: Bones Electronics Co., Ltd
On FindLight:: since 2017

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is a simplex POF cable?

A simplex POF cable is a plastic optical fiber cable that is mainly used for short distance data transmission.

What are the basic properties of the fiber core material?

The fiber core material is made of PMMA and the cladding material is made of fluorinated polymer.

What is the numerical aperture of the cable?

The numerical aperture of the cable is 0.5.

What is the working temperature range of the cable?

The working temperature range of the cable is -20~70 Celsius Degrees.

What are some of the applications of the simplex POF cable?

Some of the applications of the simplex POF cable include signal transmission of sensors, high speed data transmission, industrial control data links, military communication, proprietary LANs or access network, and multi-media data link and plant control in vehicles and airplanes.
