MPO Detachable 8K Pure Fiber Optic HDMI2.1 Active Optical Cable-48Gbps-20m

Description

8K HDMI-MPO Fiber Optic Extension Kit: The FPHC-K2101 8K HDMI MPO Fiber Optic Extension Cable Kit is one of AOCFIBERLINK‘s cutting-edge 8K HDMI signal transmission member, which revolutionizes ProAV and installer practices. Its slim, flexible pure fiber optic design simplifies in-wall cable installations significantly.

Moreover, the MPO extender facilitates effortless upgrades, eliminating the need to redo wiring or reinstall pre-existing cables. This innovation streamlines installation processes, making it a game-changer for professionals in the audiovisual industry.

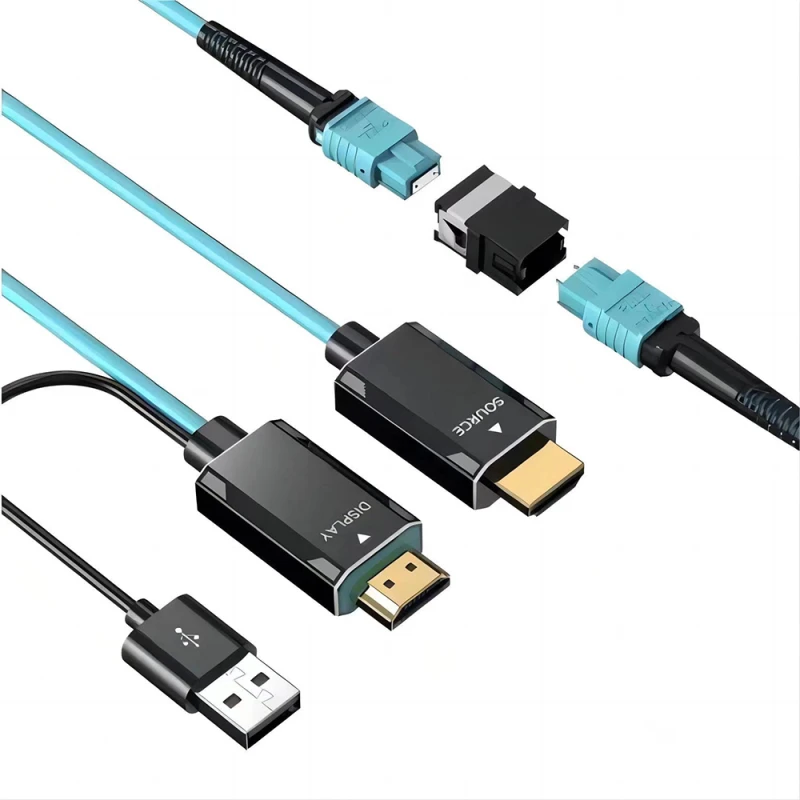

What's in the kit?

This 8K Pure Fiber Optic HDMI MPO Extension Cable comes with following accessories:

1x stainless steel armored, LSZH sheathed, 6-core OM3 Fiber Optic Extension Cable with pre-terminated MPO connections on both ends;
1x 5ft(1.5m) detachable 8K HDMI 2.1 to MPO AOC Cable for Source side;
1x 5ft(1.5m) detachable MPO to 8K HDMI 2.1 AOC Cable for Display side (with external USB-A 2.0 Power Supply)
2x MPO Adapters

Specifications

Core Diameter:	50 um
Wavelength Range:	850 – 1300 um
Fiber Core Material:	Other
Cable Length:	20 m
Interface Version:	HDMI 2.1 4K/120Hz or 8K/60Hz
Power Consumption:	500 mW
Input:	HDMI A Male
Output:	HDMI A Male
Housing:	Zinc Alloy

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Ultra High Speed: 6 cores ultra high speed multi-mode OM3 fiber optical cables supports up to 48Gbps Supporting 4K@144Hz / 8K@60Hz / 10K@30Hz resolution

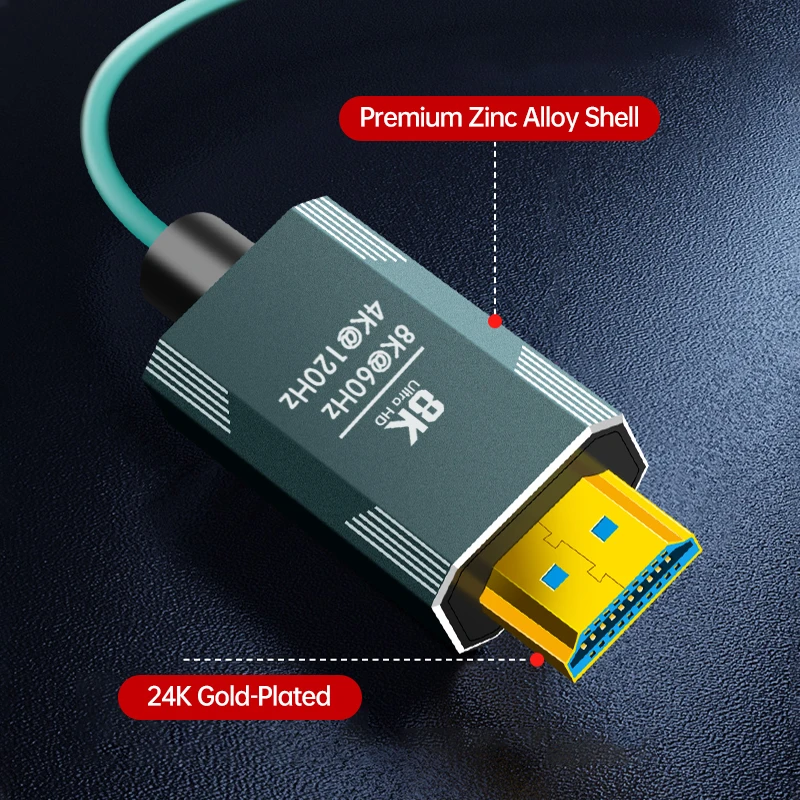

Premium Zinc Alloy Shell: 24K-Gold plated contacts ensure superior signal transmission

Flexible Cable Routing: The armored OM3 main fiber cable is designed to pass through conduits of varying diameters without risking damage to the HDMI connectors, providing more flexibility in installation.

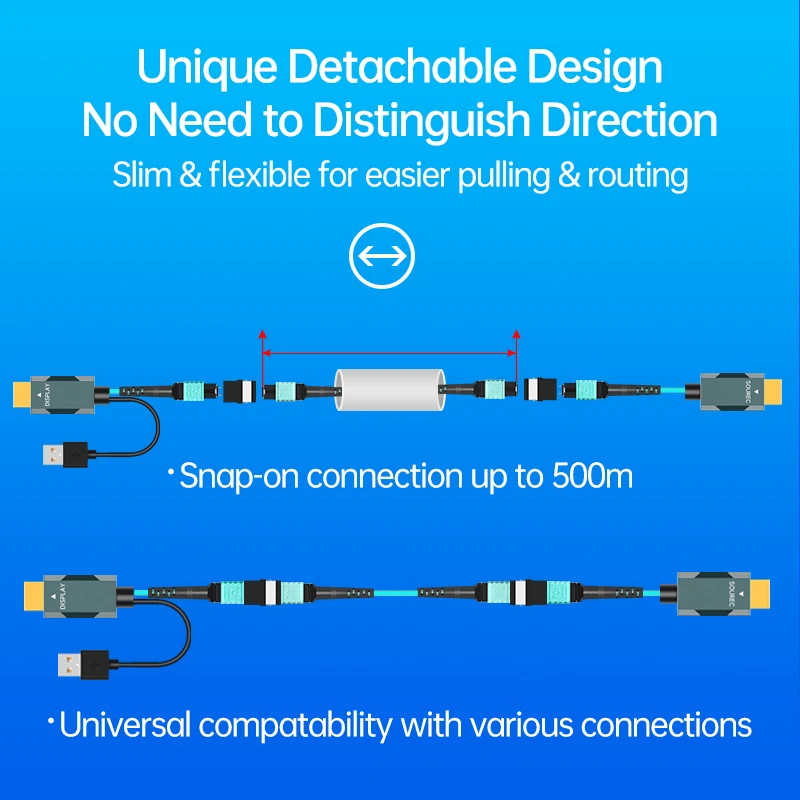

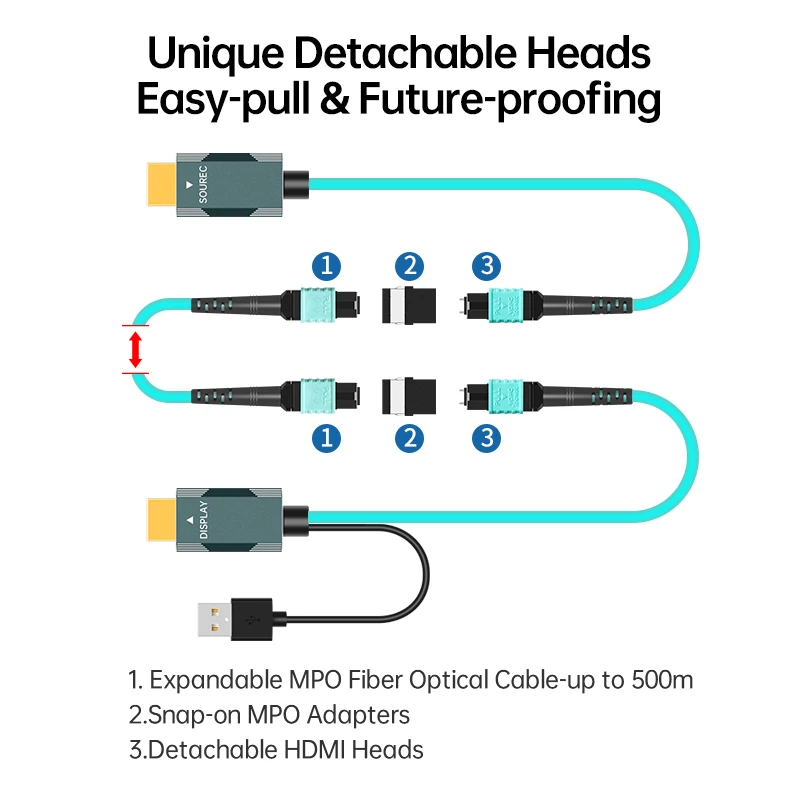

Detachable HDMI Ends: The extender kit enables simple installation and replacement of HDMI connectors without needing to replace the entire cable, improving convenience and reducing maintenance costs.

Pre-terminated MPO Connector: – 12 fiber MALE PC type standard MPO (with pins) – Use 6 Fibers 1 to 6 TYPE-A Straight on the main cable (not inverted)

Universal Compatibility: The unique MPO junction design offers universal compatibility with various connections including: MPO-HDMI, MPO-LC, MPO-DisplayPort, MPO-DVI, MPO-USB and Multi-mode Fiber Optics OM3 OM4 OM5 (incompatible with single mode fibers)

Unmatched Performance: Zero-Lag / Zero-Loss / Zero-Compression.4K/144Hz 8K/60Hz HDMI 2.1

4:4:4 full quality AV experience over fiber optics.

Applications

Digital signage
LED signs & monitors for stadiums,hospitals,shipping malls
Medical imaging equipment
On-board multimdia system
Home Theater, Blu-ray, 3D video, projector, set-top box, DVR, game console control and monitor connection
Radio and TV station
Video conference equipment
Security monitoring system

Request Quote

To: Shenzhen Fiberlink Tech Co., Ltd
Re: MPO Detachable 8K Pure Fiber Optic HDMI2.1 Active Optical Cable-48Gbps-20m

Name

Work Email

Organization

Country

Your message to supplier

Get quotes from similar suppliers (Recommended)

Thank you, your message was sent successfully.

Ships from:: China
Sold by:: Shenzhen Fiberlink Tech Co., Ltd
On FindLight:: since 2024

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is a Fiber Optic HDMI Cable?

Fiber optic HDMI cable is also called HDMI Active Optical Cable, which combines the best of fiber optic technology and the HDMI standard. The new fiber optic HDMI cables are often very slim, flexible, and light. They are designed with detachable connectors to attach the interface to the HDMI ports of your devices. To transmit the HDMI signals, your device will convert them into pulses of light first. The pulses travel through fiber optic at a very high speed. At their destination, the light pulses become electrical signals again.

What's the advantage of using Fiber Optic HDMI Cable?

Compared with conventional copper HDMI cables, a fiber optic HDMI cable can deliver top performance even in very long distances. There is no degradation of signals over large distances of transmission. For conventional HDMI cables, their signals usually start to attenuate at a distance of 25 feet/7.5 meters. At 50 feet/15 meters, the quality loss is evident. AOCFiberlink 8KH15 HDMI fiber optic cable can transmit 8K@60Hz resolution up to 15m/50ft, with no signal loss or delay. Besides, fiber optic HDMI cables are more versatile. In some variants, you can find the lower end of the cable detaches from the source to reveal a much shorter HDMI connector. This means you can establish a connection between small devices like mobiles and tablets and display devices such as monitors.

What's the advantage of using this detachable Fiber Optic HDMI Cable?

This AOCFiberlink PFHC-K2101 detachable 8k fiber optic hdmi cable utilize armored pure fiber optic cable with easy-snap on MPO connection as the main extension cable, offering advantages of easy installation & maintenance, undirectional, EMI-free

Can you customize the length?

Yes, the length can be 3m to 500m.
