Description

SideFire by NeuLight® is an improved, high-powered fiber optic delivery device suitable for laser driven prostate enucleation procedures. This re-imagined probe is built with comfort and precision in mind for Urologists and their staff.

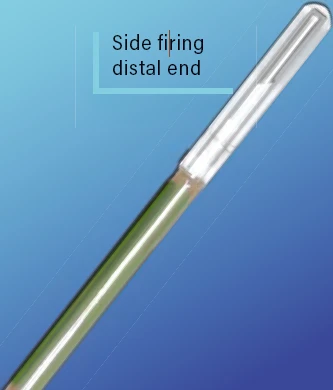

Our SideFire emits laser energy at a 90-degree angle from the axis of the fiber. The capillary tip is attached with the body of the probe using a proprietary process to maximize energy transmission. The aiming grip is ergonomically designed allowing for 365-degree rotation and increased durability.

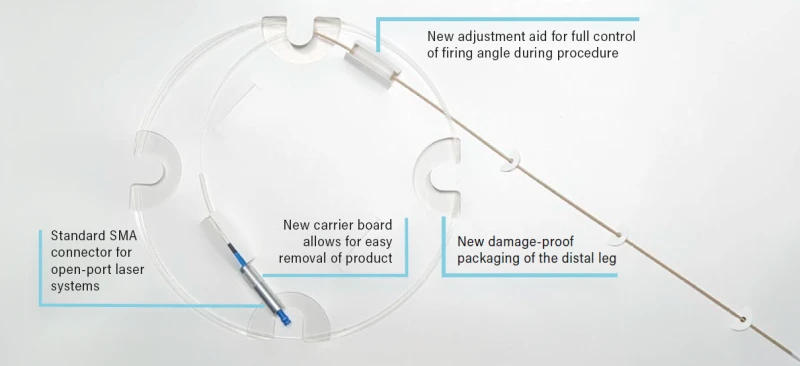

The packaging is damage-proof and easy to use to ensure each sterile device can be seamlessly passed off by the scrub technician to the surgeon.

The NeuLight SideFire Fiber Probe is based on a precision-engineered beam redirection mechanism that enables controlled lateral emission of laser energy at approximately 90 degrees relative to the fiber axis. This is achieved through a carefully designed distal tip geometry that redirects the guided laser beam using controlled reflection and refraction within a fused silica structure, allowing efficient and stable energy delivery to side-oriented tissue targets.

Unlike conventional forward-firing fibers, side-firing probes are specifically optimized for endoscopic and minimally invasive procedures where direct line-of-sight access is limited. This lateral emission geometry enables more uniform energy distribution along tissue surfaces, improving procedural control in applications such as laser ablation, vaporization, and enucleation.

The probe is engineered for high-power laser compatibility across a broad wavelength range, maintaining stable transmission efficiency while minimizing back reflection and thermal degradation at the distal tip. Its robust construction supports consistent optical performance under repeated sterilization and high-duty surgical use, making it suitable for demanding clinical environments where reliability and precision are critical.

NeuLight SideFire Fiber Probes

Specifications

Core Diameter: 600 um
Wavelength Range: 0.5 – 2.2 um
Fiber Core Material: Fused Silica
Cable Length: 3 m
Max Input Power: 200 W continuous wave for 2 minutes and 100 W continuous wave for 30 minutes
Clad Diameter: 660 um
Numerical Aperture: 0.22
Connector Type: SMA905

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Available in a standard core size of 600um with a 660um doped silica cladding
  • Power ranges from 200W CW (2 minutes) to 100W CW (30 minutes)
  • Engineered and assembled by our teams in Europe and the United States in an ISO13485 environment
  • Provided sterile and ready to use with open port lasers
  • Private label and integration of RFID technology is possible

Applications

The NeuLight SideFire Fiber Probe is designed for high-precision lateral laser energy delivery in minimally invasive surgical procedures where controlled tissue interaction and directional beam emission are critical. Its 90-degree emission geometry enables efficient energy transfer to lateral tissue surfaces, making it particularly effective in endoscopic environments where direct axial access is limited.

  • Urology and Laser Prostate Surgery
    Side-fire fiber probes are widely used in urology for procedures such as Benign Prostatic Hyperplasia (BPH) treatment and laser prostate enucleation. The lateral emission profile allows surgeons to precisely target prostatic tissue while preserving surrounding anatomical structures, improving procedural control and clinical outcomes.
  • Endoscopic and Minimally Invasive Laser Surgery
    These fibers are integrated into endoscopic laser systems for soft tissue ablation, vaporization, and coagulation. The side-firing geometry enables uniform energy distribution along tissue walls, making them suitable for procedures performed in confined or curved anatomical pathways.
  • Lithotripsy and Stone Management
    In laser lithotripsy applications, side-firing fibers assist in fragmenting urinary and biliary stones through controlled lateral energy delivery. This allows improved targeting efficiency within the urinary tract and enhances procedural flexibility in difficult-to-access regions.
  • Oncology and Soft Tissue Ablation
    Side-firing probes are increasingly used in laser-based tumor ablation and interstitial therapies, where precise directional energy delivery is required to selectively destroy abnormal tissue while minimizing damage to surrounding healthy structures.
  • Biomedical and Optical Research Systems
    Beyond clinical applications, side-fire fiber probes are used in biomedical optics research, laser-tissue interaction studies, and experimental photonics systems. Their controlled emission profile supports studies in energy distribution, tissue response, and minimally invasive optical delivery techniques.
  • Surgical Laser System Integration
    These probes are compatible with a wide range of medical laser platforms, enabling OEM integration into surgical laser systems used in hospitals and specialty clinics. Their standardized design and high-power handling capability make them suitable for both disposable and semi-reusable surgical workflows.

Frequently Asked Questions

What is the SideFire by NeuLight® used for?
The SideFire by NeuLight® is a high-powered fiber optic delivery device suitable for laser-driven prostate enucleation procedures, particularly for the therapeutic treatment of Benign Prostatic Hyperplasia (BPH).
How does the SideFire by NeuLight® emit laser energy?
The SideFire emits laser energy at a 90-degree angle from the axis of the fiber, allowing for precise targeting during procedures.
Is the SideFire by NeuLight® compatible with different laser systems?
Yes, the SideFire by NeuLight® exceeds OEMs laser system power requirements and is compatible with varying continuous treatment wavelengths, such as thulium.
What are the power specifications for the SideFire by NeuLight®?
The maximum input power is 200 W continuous wave for 3 minutes or 180 W continuous wave for 5 minutes.
Is the SideFire by NeuLight® FDA cleared?
Yes, the SideFire by NeuLight® is cleared by the FDA for high-power medical laser applications.
What are the design features of the SideFire by NeuLight®?
The SideFire features an ergonomically designed aiming grip allowing for 360-degree rotation, increased durability, and a capillary tip attached using a proprietary process to maximize energy transmission.
Can the SideFire by NeuLight® be customized?
Yes, the SideFire by NeuLight® can be customized with private labeling and the integration of RFID technology.

Got more questions? Use the inquiry form to ask the supplier directly.
