Description

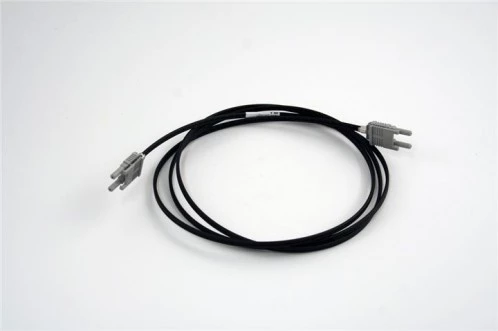

Equal to ABB TK812V150 POF Cable Assembly, 15m, Simplex
POF Cable: 980/1000UM SIMPLEX 2.2MM OD PE JACKET BLACK
HFBR connectors provide excellent retention force combined with easy snap-in action. Plastic fiber cable delivers high bandwidth and a tight bend bend radius when compared to traditional glass fiber.
ABB TK811V015 POF CABLE ASSEMBLY
Specifications
| Core Diameter: | 980 um |
|---|---|
| Wavelength Range: | 525 – 650 um |
| Fiber Core Material: | Plastic |
| Cable Length: | 15 m |
| Core Material: | PMMA |
| Fiber Strands: | Simplex |
| Connector A: | HFBR Latching |
| Connector B: | HFBR Non-Latching |
| Jacket Material: | Black PE |
| Outer Diameter: | 2.2 mm |
Download Data Sheet
Features
- Compatible with Avago Versatile Link Family of connectors
and fiber optic components
- 1 mm diameter Plastic Optical Fiber (POF)
Industrial POF with 0.22 dB/m typical attenuation
(-40°C to 85°C)
Applications
Typically used in automotive, industrial control, medical and gaming equipment, these cables are available in lengths ranging from 0.3 meters to 50 meters. Connectors are HFBR-4501 (gray) to HFBR-4511 (blue). Custom cable assemblies will be made in 2-3 days with no minimum requirements.
Frequently Asked Questions
What is the length of the ABB TK811V015 POF Cable Assembly?
What is the diameter of the Plastic Optical Fiber (POF) used in this cable assembly?
What is the typical attenuation of the Industrial POF used in this cable assembly?
What are the applications of the ABB TK811V015 POF Cable Assembly?
Are custom cable assemblies available for the ABB TK811V015 POF Cable Assembly?
