Description

CCVZ2-1000 UL rated Plastic Optical Fiber (POF), equals to Mitsubishi Rayon GHV 4001, which is an ideal solution for industrial data applications.

Mitsubishi Rayon Super ESKA®-SHV

Bones Electronics Co., Ltd

Specifications

Core Diameter: 980 um
Wavelength Range: 0.525 – 0.65 um
Fiber Core Material: Plastic
Cable Length: 1500 m
Core Material: PMMA
Fiber Strands: single core
Jacket Diameter: Flame Retardant PVC Black
Outer Diameter: 2.2 mm
Transmission Loss: @525nm 0.15dB/M
Transmission Loss: @650nm 0.19dB/M

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Simple to install
No special tools (bare fibre connection)
No software setup
Electrical (galvanic) isolation
Immune to data loss caused by electrical interference
Easy to conceal due to small size
Eye-safe fibre optic solution
Visible light transmitter enables intuitive install

Applications

1. Consumer: HDTV & Set-top box

2. Industrial Control:

l Controller board

l Frequency Inverters/Converters/Drives

l Networking

l Power distribution

l Power transmission

l Smart grids

3. Industrial Automation: Factory automation

4. Medical:

l Diagnostic equipment

l Optical sensors

l Telemedicine- and Telehealth devices

5. Sustainable Energy

l Optical Sensors

l Wind Industry

6. Telecommunications/Networking: Data communication

Frequently Asked Questions

What is the Mitsubishi Rayon Super ESKA®-SHV?
The Mitsubishi Rayon Super ESKA®-SHV is a CCVZ2-1000 UL rated Plastic Optical Fiber (POF) that is ideal for industrial data applications.
What are the features of the Mitsubishi Rayon Super ESKA®-SHV?
The Mitsubishi Rayon Super ESKA®-SHV is simple to install, requires no special tools for bare fiber connection, has no software setup, provides electrical (galvanic) isolation, is immune to data loss caused by electrical interference, is easy to conceal due to its small size, and is an eye-safe fiber optic solution with a visible light transmitter that enables intuitive install.
What are the applications of the Mitsubishi Rayon Super ESKA®-SHV?
The Mitsubishi Rayon Super ESKA®-SHV can be used in a variety of applications, including consumer applications such as HDTV and set-top boxes, industrial control applications such as controller boards, frequency inverters/converters/drives, networking, power distribution, power transmission, and smart grids, industrial automation applications such as factory automation, medical applications such as diagnostic equipment, optical sensors, telemedicine- and telehealth devices, sustainable energy applications such as optical sensors and the wind industry, and telecommunications/networking applications such as data communication.
What is the structure of the Mitsubishi Rayon Super ESKA®-SHV?

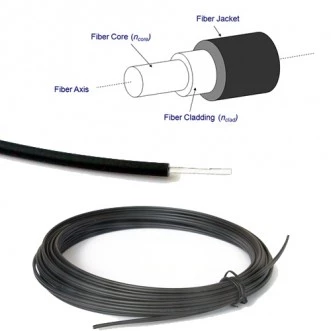

The Mitsubishi Rayon Super ESKA®-SHV is a simplex plastic optical fiber cable with a core material of polymethylmethacrylate and a cladding material of fluorinated polymer. It has a step index refractive index profile, a numerical aperture of 0.5±0.05, a core diameter of 980±60 μm, a cladding diameter of 1000±60 μm, and a jacket made of flame retardant PVC with a diameter of 2.2±0.07 mm and a black color.
What are the performance specifications of the Mitsubishi Rayon Super ESKA®-SHV?
The Mitsubishi Rayon Super ESKA®-SHV has an attenuation of ≤0.15 dB/m at 650nm and T=25℃, a bandwidth of ≥10 MHz•100m, a 4% tensile strength of ≥56 N, a short-term tensile force of ≤50 N, a short-term bend radius of ≥25 mm, a long-term bend radius of ≥35 mm, a crush strength of 700N/100mm, an impact energy of 0.2N•m, a twisting length of 250mm, a torsion angle of ±1800, and can operate in temperatures ranging from -55℃ to +85℃.
