  5. TK811v015 Plastic Optical Fiber Cable with Latching Duplex Connector – 1.5m

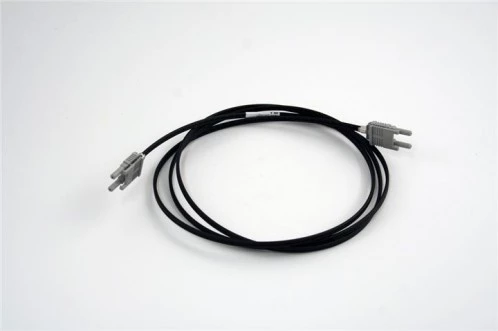

TK811v015 Plastic Optical Fiber Cable with Latching Duplex Connector – 1.5m

Bones Electronics Co., Ltd
REQUEST QUOTE
TK811v015 Plastic Optical Fiber Cable with Latching Duplex Connector – 1.5m

OVERVIEW

TK811V015 POF CABLE ASSEMBLY, 1.5M, DUPLEX L=1.5M LATCHING DUPLEX CONNECTOR DUPLEX PLASTIC OPTICAL FIBRE


Part Number: 3BSC950107R1


Fully customizable Plastic Optical Fiber (POF) assemblies and harnesses are a rugged, cost-effective solution offering maximum flexibility for optical cabling in many industrial, medical, transportation, renewable energy, smart grid and consumer applications. Custom PLASTIC OPTICAL FIBRE-POF CABLE ASSEMBLY available.

SPECIFICATION

  • Core Diameter: 980/1000 um
  • Wavelength Range: 525 - 650 um
  • Fiber Core Material: Plastic
  • Cable Length: 1.5 m
  • Outer Diameter: 2.2x4.4 ± .07 mm
  • Core Material: Polymethyl-Methacrylate Resin
  • Fiber Tensile Strength: 70 N
  • Cladding Material: Fluorinated Polymer
  • Core Refractive Index: 1.49
  • Refractive Index Profile: step-index
  • Numerical Aperture: 0.50
  • Fiber Counts: 1
  • Jacket Material And Color: Polyvinyl chloride (Black)
Download Data Sheet

Applications

1. Consumer: HDTV & Set-top box


2. Industrial Control:


l Controller board


l Frequency Inverters/Converters/Drives


l Networking


l Power distribution


l Power transmission


l Smart grids


3. Industrial Automation: Factory automation


4. Medical:


l Diagnostic equipment


l Optical sensors


l Telemedicine- and Telehealth devices


5. Sustainable Energy


l Optical Sensors


l Wind Industry


6. Telecommunications/Networking: Data communication

KEY FEATURES

lLess applied cost than copper and glass fiber


lLower installation labor cost


lLow-power optical POF switch means no mechanical air flow fans required


lLess infrastructure support required from up-stream high-speed switches and routers


lCost savings due to fewer physical ports


l50% less power to operate than copper


l80% reduction of carbon dioxide than copper


lSecure, robust, reliable data transfer


lNo cross talk interference


lNo electromagnetic interference


lLightweight with excellent toughness and durability


lWaterproof, moisture-proof, magnetic-free


lROHS & UL certified
