Description

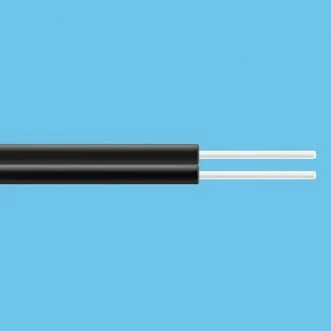

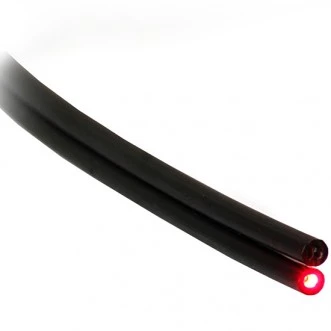

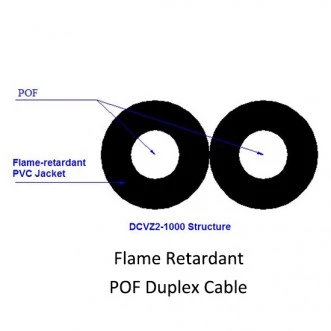

Our DCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable is used to replace Broadcom AFBR-HUD500Z duplex plastic optical fiber (POF) cable. It is a halogen-free, robust duplex plastic optical fiber (POF) cable, which comes in a single spool of 500m duplex POF consisting of two step-index fibers each sheathed in a black polyethylene jacket with an outer diameter of 2.2 mm. Inside the covering jacket has a diameter of 1 mm. The duplex POF is joined with a zipcord web.
The cable complies with UL VW-1 flame retardant specification.
AFBR-HUD500Z Duplex Plastic Optical Fiber-POF Cable
Specifications
| Core Diameter: | 1000 um |
|---|---|
| Wavelength Range: | 525 – 650 um |
| Fiber Core Material: | Plastic |
| Cable Length: | 500 m |
| Fiber Core Material: | Polymethyl-Methacrylate Resin |
| Cladding Material:: | Fluorinated Polymer |
| Jacket Material And Color:: | Polyvinyl chloride (Black) |
| Fiber Counts:: | 2 |
| Outer Diameter:: | 2.2x4.4 ± .07 mm |
| Fiber Tensile Strength:: | 110 N |
| Approximate Weight:: | 10 g/m |
| Core Refractive Index:: | 1.49 |
| Refractive Index Profile:: | Step-index |
| Numerical Aperture:: | 0.50 |
Download Data Sheet
Features
- Compatible with the Broadcom Versatile Link family of connectors and fiber optic components as transmitters and receivers
- 1mm POF avaialbe in 1 grade with 0.19 dB/m typical attenuation (-40°C to +85°C)
- Halogen-free.
- Flame-retardant
Applications
- Industrial Data Links for Factory Automation and Plant Control
- Intra-system Links; Board-to-board, Rack-to-rack
- Telecommunications Switching Systems
- Computer-to-peripheral Data Links, PC Bus Extension
- Proprietary LANs
- Digitalized Video
- Medical Instruments
- Reduction of Lighting and Voltage transient Susceptibility
- High Voltage Isolation
Frequently Asked Questions
What is the AFBR-HUD500Z Duplex Plastic Optical Fiber-POF Cable used for?
The AFBR-HUD500Z Duplex Plastic Optical Fiber-POF Cable is used for industrial data links for factory automation and plant control, intra-system links, board-to-board, rack-to-rack telecommunications switching systems, computer-to-peripheral data links, PC bus extension, proprietary LANs, digitalized video, medical instruments, reduction of lighting and voltage transient susceptibility, and high voltage isolation.
What is the difference between the AFBR-HUD500Z Duplex Plastic Optical Fiber-POF Cable and the DCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable?
The DCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable is a halogen-free, robust duplex plastic optical fiber (POF) cable that is used to replace the AFBR-HUD500Z duplex plastic optical fiber (POF) cable. It comes in a single spool of 500m duplex POF consisting of two step-index fibers each sheathed in a black polyethylene jacket with an outer diameter of 2.2 mm. Inside the covering jacket has a diameter of 1 mm. The duplex POF is joined with a zipcord web. The cable complies with UL VW-1 flame retardant specification.
What are the technical specifications of the DCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable?
The technical specifications of the DCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable include a core material of polymethylmethacrylate, a cladding material of fluorinated polymer, a core refractive index of 1.49, a cladding reflective index of 1.41, a step-index refractive index profile, a numerical aperture of 0.50±0.05, a core diameter of 980±60 μm, a cladding diameter of 1000±60 μm, a jacket material of polyvinylchloride, and a VW-1 pass burning test.
What is the unit weight of the DCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable?
The unit weight of the DCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable is 10.5 g/m.
What certifications does the DCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable have?
The DCVZ2-1000 Flame-retardant duplex plastic optical fiber-POF cable has passed ROHS and REACH certifications.
