Description

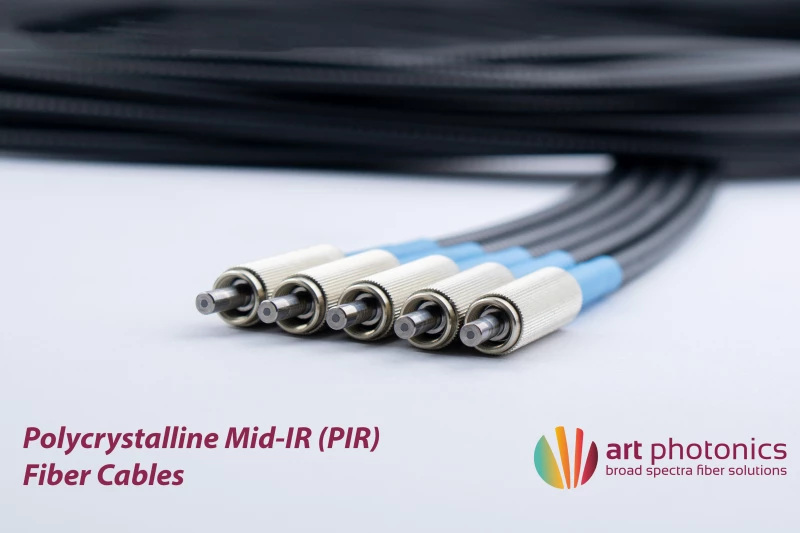

art Photonics offers FlexiRay® Fiber Cables designed specifically for a wide Mid-Infrared spectral range spanning from 3 to 17 μm. These fiber cables utilize Polycrystalline InfraRed (PIR) fibers and find applications in various fields, including Mid-IR light delivery, spectroscopy, remote temperature sensing, and more.

The PIR-fiber cables are available in different standard fiber diameters and can be equipped with various connectors such as SMA-905, FC/PC, and FC/APC. Additionally, they are offered with different types of protective sheathing to suit specific requirements.

At Art Photonics, we employ advanced manufacturing technologies to ensure precise positioning of the fibers inside the connector ferrule, as well as a flawless surface quality of the fiber end. Each fiber cable undergoes a meticulous Quality Control procedure before being shipped to our customers, ensuring the highest standards of performance and reliability.

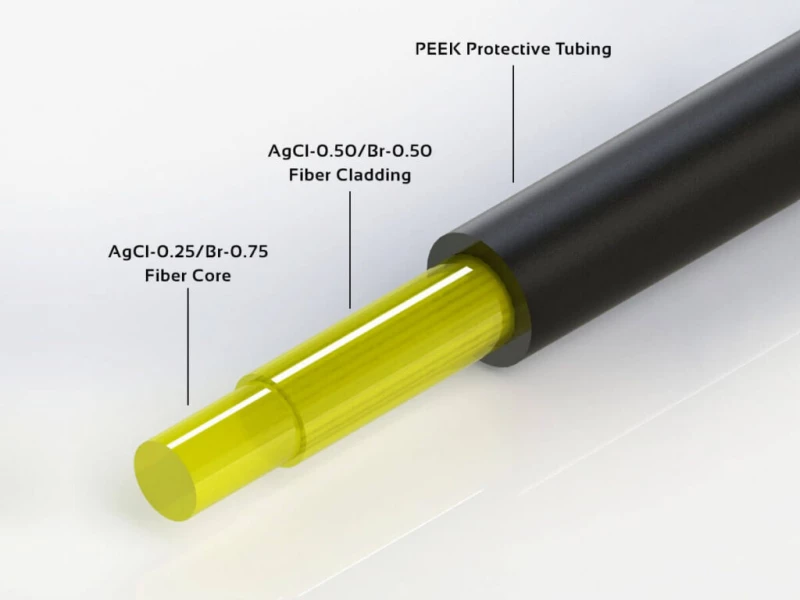

FlexiRay Polycrystalline IR-Fiber Cables PIR-400/500

Specifications

Core Diameter: 400 um
Wavelength Range: 3 – 18 um
Fiber Core Material: AgCl (0.25) Br (0.75)
Cable Length: 0 m
Cladding Diameter: 500 um
Cladding Material: AgCl (0.50) / Br (0.50)
Protective Tubing: PEEK
Core Refractive Index: 2.15
Effective NA: 0.30±0.03
Operating Temperature, °C: -50 to + 80°C (customized to higher range)
Maximum Transmitted Power, W: 50 (CW)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Optical Fiber Type: Polycrystalline Step Index Multimode
  • Wavelengths Range: 3 - 17 µm
  • Fiber Core/Cladding Sizes (μm): See standard fiber parameters
  • Effective Numerical Aperture (NA): 0.30 ± 0.03
  • Minimum Bending Radius (depending on protective sheathing):
    • PEEK tubing: 130mm
    • Metal PVC coated tubing: 80mm
    • Stainless steel tubing: 80mm
    • Stainless steel silicone coated tubing: 130mm
  • Connectors: SMA-905, FC-PC, or FC-APC with Titanium ferrule
  • Temperature Range: -50°C to +80°C
    • For high- or cryogenic temperature applications, please send a custom inquiry. The temperature range for cables may differ from that of fibers.
  • Length: ≤ 15m (depending on fiber diameter)

Applications

  • Mid-IR spectroscopy
  • Flexible IR pyrometry
  • Flexible IR-Imaging systems
  • Power delivery for Quantum Cascade Lasers
  • Power delivery for CO- and CO2-Lasers

Frequently Asked Questions

What is FlexiRay?
FlexiRay is a polycrystalline IR-Fiber Cable with a 400um core diameter that is used for flexible beam delivery of CO and CO2 laser radiation.
What is the transmission range of FlexiRay?
FlexiRay has a wide transmission range of 3 to 18um.
What are the features of FlexiRay?

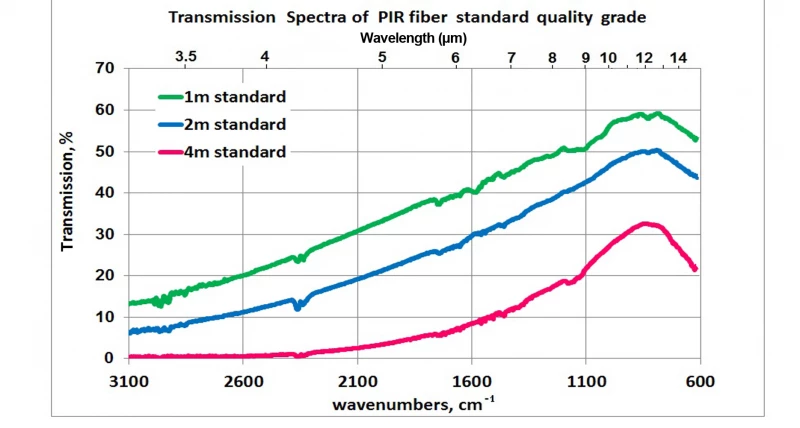

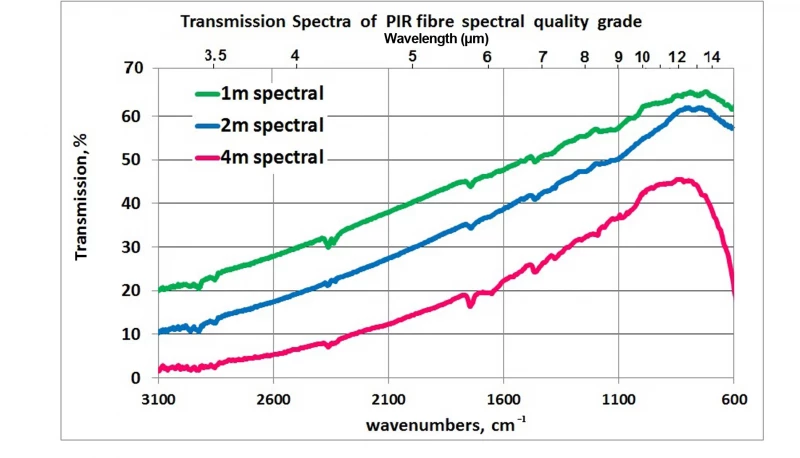

FlexiRay is a resilient PIR fiber cable with high transmittance from 4 μm up to 18μm, high flexibility and no toxicity, suitable for CO2-laser power delivery up to 50W, low attenuation at 10.6μm (0.1-0.5 dB/m), standard fiber diameters from 0.3 to 1.0mm, and no aging effect.
What are the applications of FlexiRay?
FlexiRay series cables have found applications in Spectroscopy Probes for Gases & Liquids, Flexible Radiometry, Flexible IR-imaging Systems, and Power delivery for CO & CO2-Lasers.
What is the temperature range that FlexiRay can operate in?
FlexiRay is capable of operating over the wide temperature range from 4 degree K to 420 degrees K.

Got more questions? Use the inquiry form to ask the supplier directly.
