PMMA Industrial Fiber Optic Cable Duplex (0.15dB/m@525nm)

Description

Product: plastic optical fiber cable(pof cable)
Item: pof duplex cable
P/N: DC2-1000(pure black)
DCW2-1000(white bar colored for easy identification)

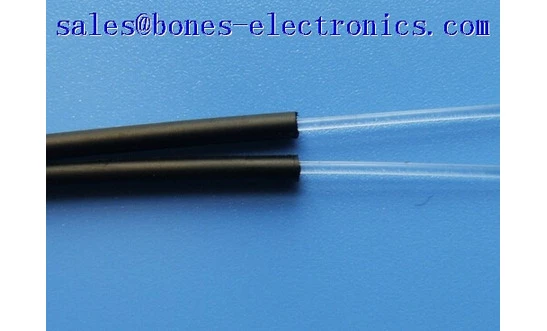

This 1 mm PMMA fiber duplex zipcord, 70deg.C, 2.2 mm x 4.4 mm - 1500 feet spool is made of two paralleled 1.0mm cores,2*2.2mm POF Cable for the following applications:
1. Signal transmission of fiber optic sensors;
2. High speed data transmission;
3. Industrial control data links;
4. Military communication;
5. Proprietary LANs or Access Network;
6. Multi-media data link and plant control in vehicles and airplanes;

Specifications

Core Diameter:	1000 um
Wavelength Range:	0.525 – 0.65 um
Fiber Core Material:	Plastic
Cable Length:	5 m
Attenuation Loss:	0.17dB/M @650nm
Operating Temperature:	-55~85 ℃

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Basic properties:
Fiber Core Material: PMMA
Cladding Material: Fluorinated Polymer
Jacketing Material: PE
Optical Instruction: Step Index Model
Numerical Aperture: 0.5
Allowable Bend Radius: No less than ten times of optical fiber diameter
Core Refractive Index: 1.492
HS Code: 9001100090

Applications

Power system

Industrial automation control system

Industrial robot system and servo system

Communication system

Digital multimedia systems

Medical sensor system

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Ships from:

China

Sold by:

Bones Electronics Co., Ltd

On FindLight:

since 2015

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the PMMA Industrial Fiber Optic Cable Duplex used for?

The PMMA Industrial Fiber Optic Cable Duplex is used for signal transmission of fiber optic sensors, high speed data transmission, industrial control data links, military communication, proprietary LANs or Access Network, and multi-media data link and plant control in vehicles and airplanes.

What is the allowable bend radius of the PMMA Industrial Fiber Optic Cable Duplex?

The allowable bend radius of the PMMA Industrial Fiber Optic Cable Duplex is no less than ten times of optical fiber diameter.

What is the numerical aperture of the PMMA Industrial Fiber Optic Cable Duplex?

The numerical aperture of the PMMA Industrial Fiber Optic Cable Duplex is 0.5.

What is the core material of the PMMA Industrial Fiber Optic Cable Duplex?

The core material of the PMMA Industrial Fiber Optic Cable Duplex is PMMA.

What is the length of the spool for the PMMA Industrial Fiber Optic Cable Duplex?

The PMMA Industrial Fiber Optic Cable Duplex comes in a 1500 feet spool.
