Description

art photonics offers FlexiRay® Fiber Cables designed specifically for a wide Mid-Infrared spectral range spanning from 3 to 17 μm. These fiber cables utilize Polycrystalline InfraRed (PIR) fibers and find applications in various fields, including Mid-IR light delivery, spectroscopy, remote temperature sensing, and more.

The PIR-fiber cables are available in different standard fiber diameters and can be equipped with various connectors such as SMA-905, FC/PC, and FC/APC. Additionally, they are offered with different types of protective sheathing to suit specific requirements.

At Art Photonics, we employ advanced manufacturing technologies to ensure precise positioning of the fibers inside the connector ferrule, as well as a flawless surface quality of the fiber end. Each fiber cable undergoes a meticulous Quality Control procedure before being shipped to our customers, ensuring the highest standards of performance and reliability.

FlexiRay Polycrystalline IR-Fiber Cables PIR-240/300

Visit the Art photonics GmbH Store

Specifications

Core Diameter: 240 um

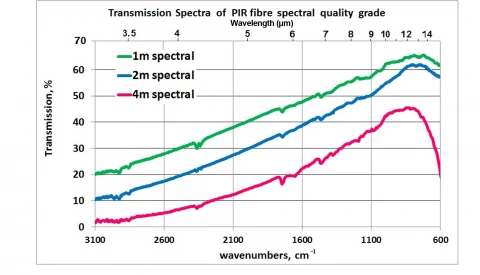

Wavelength Range: 3 – 18 um

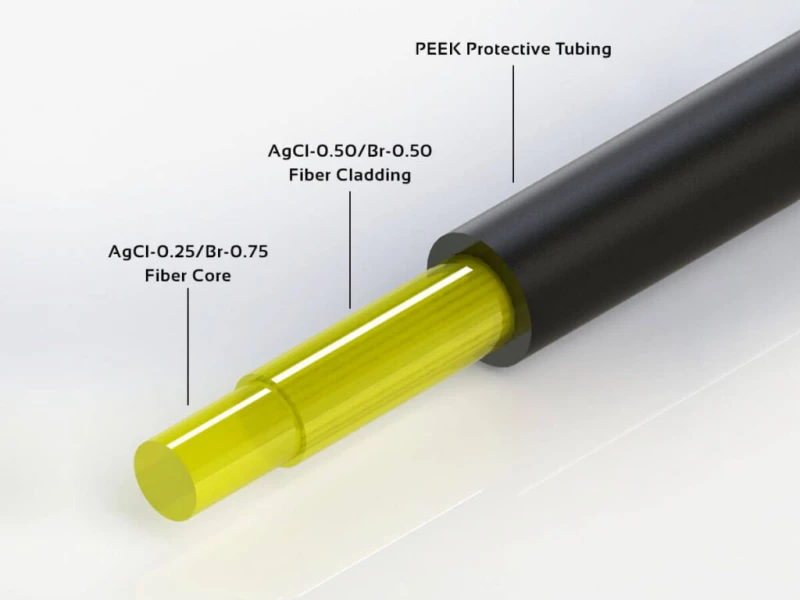

Fiber Core Material: AgCl (0.25) Br (0.75)
Cable Length: 0 m
Cladding Diameter: 300 um
Cladding Material: AgCl (0.50) / Br (0.50)
Protective Tubing: PEEK
Core Refractive Index: 2.15
Effective NA: 0.30±0.03
Operating Temperature, °C: -50 to + 80°C (customized to higher range)
Maximum Transmitted Power, W: 50 (CW)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Optical Fiber Type: Polycrystalline Step Index Multimode
  • Wavelengths Range: 3 - 17 µm
  • Fiber Core/Cladding Sizes (μm): See standard fiber parameters
  • Effective Numerical Aperture (NA): 0.30 ± 0.03
  • Minimum Bending Radius (depending on protective sheathing):
    • PEEK tubing: 130mm
    • Metal PVC coated tubing: 80mm
    • Stainless steel tubing: 80mm
    • Stainless steel silicone coated tubing: 130mm
  • Connectors: SMA-905, FC-PC, or FC-APC with Titanium ferrule
  • Temperature Range: -50°C to +80°C
    • For high- or cryogenic temperature applications, please send a custom inquiry. The temperature range for cables may differ from that of fibers.
  • Length: ≤ 15m (depending on fiber diameter)

Applications

  • Mid-IR spectroscopy
  • Flexible IR pyrometry
  • Flexible IR-Imaging systems
  • Power delivery for Quantum Cascade Lasers
  • Power delivery for CO- and CO2-Lasers

Frequently Asked Questions

What is the FlexiRay Polycrystalline IR-Fiber Cable PIR-240/300?
The FlexiRay Polycrystalline IR-Fiber Cable PIR-240/300 is a specialty fiber for the Mid-Infrared region that is non-toxic, very flexible, transparent across a broad spectral range 4 -18 μm and capable of operating over the wide temperature range from 4K to 420K.
What are the applications of the FlexiRay Polycrystalline IR-Fiber Cable PIR-240/300?
The FlexiRay Polycrystalline IR-Fiber Cable PIR-240/300 can be used for spectroscopy probes for gases and liquids, flexible radiometry, flexible IR-imaging systems, and power delivery for CO and CO2 lasers.
What is the spectral range of the FlexiRay Polycrystalline IR-Fiber Cable PIR-240/300?
The FlexiRay Polycrystalline IR-Fiber Cable PIR-240/300 is transparent across a broad spectral range of 4 -18 μm.
What is the temperature range that the FlexiRay Polycrystalline IR-Fiber Cable PIR-240/300 can operate in?
The FlexiRay Polycrystalline IR-Fiber Cable PIR-240/300 can operate over the wide temperature range from 4K to 420K.
Is the FlexiRay Polycrystalline IR-Fiber Cable PIR-240/300 toxic?
No, the FlexiRay Polycrystalline IR-Fiber Cable PIR-240/300 is non-toxic.

Got more questions? Use the inquiry form to ask the supplier directly.
