Chalcogenide IR-Fiber Cables CIR-250/300

Art photonics GmbH

OVERVIEW

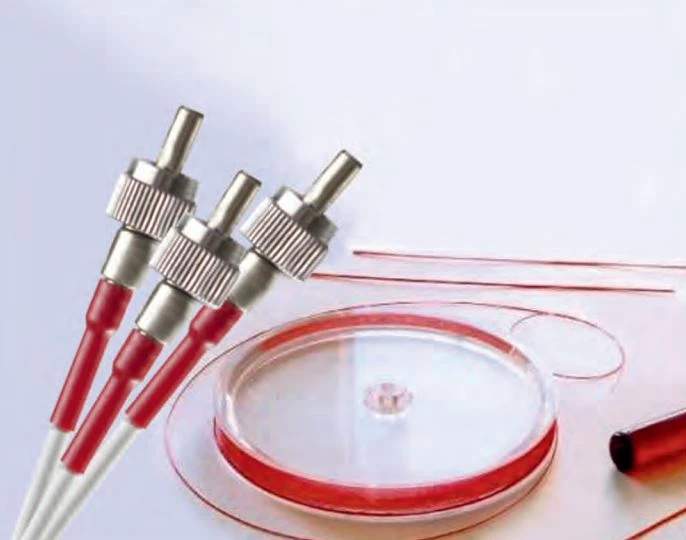

This is a Chalcogenide IR-Fiber Cable produced by art photonics GmbH.

art photonics development of specialty fibers for the Mid-Infrared region has resulted in a unique product – Chalcogenide Infra-Red (CIR-) fibers. Based on chalcogenide glasses (As₂ S₃) they transmit IR-radiation in the spectral gap between Silica fibers (0.2-2.4μm) and Polycrystalline InfraRed (PIR) fibers (4-18μm) in the range of 1.5 - 6μm.

Our single- and multimode CIR fibers are drawn in core/clad structure with double polymer coating and characterized by a low optical loss.

The advantage of chalcogenide IR-fibers: Chalcogenide glasses are an amalgam of chalcogen elements: typically selenium (Se), sulfur (S), and tellurium (Te). Arsenic (As), Germanium, and other elements might be added to facilitate the cross linking between the chains of chalcogens and render a resilient glass material. Chalcogenide IR fibers made of such glass offer useful physical characteristics including low optical loss transmission in the mid-IR and far IR wavelength regions, high refractive index, and relatively large nonlinearities compared to their silica alternatives.

SPECIFICATION

Core Diameter: 250 um
Wavelength Range: 1.5 - 6 um
Fiber Core Material: As₂ S₃
Cable Length: > 0 m
Cladding Diameter: 300
Cladding Material: As-S
Primary Protective Tubing: PTFE
Secondary Protective Tubing: PVC
Core Refractive Index: 2.4
Effective NA: 0.25 – 0.28
Minimum Bending Radius: 200 x Fiber diameter
Operating Temperature, °C: -200 < T < 100
Maximum Transmitted Power, W: 1 (CW)

Download Data Sheet

Applications

Thank to excellent transmission and low loss characteristics, Chalcogenide IR-Fiber Cables have found applications in many areas:

- Flexible IR-imaging systems
- Remote non-contact pyrometry in the 200-600K range
- Fiber probes for remote process IR - spectroscopy
- Fiber amplifiers and lasers

KEY FEATURES

Chalcogenide IR-Fiber Cables come with the following key features:

- High transmittance from 1.5μm to 6μm

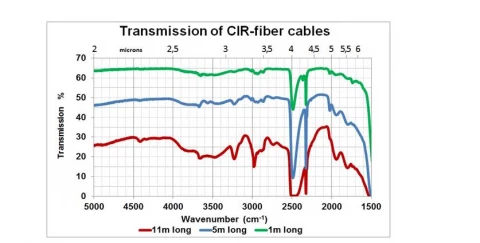

- Optical losses 0.2 dB/m at 2 - 4 μm
- Double polymer coating for high flexibility
- Standard fiber diameters from 8 to 500µm
