Description
Plastic Optical Fiber Cable for automotive and industrial applications
Automotive Fiber-Automotive Polymer Optical Fiber(POF) Cable-Automotive POF MOST application

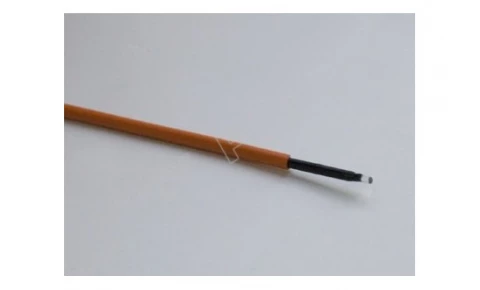

Product: High Performance Automotive Polymer Optical Fiber(POF) Cable
Part No.: CCA2-1000
Core Material: PMMA
Core Diameter: 0.98mm
Cladding Material: Fluorinated Polymer
Core Refractive Index: 1.49
Clad Reflective Index: 1.41
Refractive Index Type: Step Index
Plastic Optical Fiber Cable for automotive and industrial applications
Specifications
| Core Diameter: | 1000 um |
|---|---|
| Wavelength Range: | 525 – 650 um |
| Fiber Core Material: | Plastic |
| Cable Length: | 1500 m |
| Operating Temperature: | -55~85 ℃ |
Download Data Sheet
Features
Compared with general Plastic Optical Fiber(POF) Cable, this special POF cable is jacketed with heat resistant Nylon, which assures the Max. temperature of this Automotive POF Cable can reach 105 Celsius Degrees.
Applications
Applications:
1. High temperature working enviroment
2. Vehicle-mounted telephones
3. GPS navigation system
6. Automotive Multimedia entertainment system
Frequently Asked Questions
What are the applications of this cable?
The applications of this cable include high temperature working environment, vehicle-mounted telephones, GPS navigation system, Audi 3G/4G MMMI, BMW MOST TV FREE, and automotive multimedia entertainment system.
What is the diameter of the core and clad of the cable?
The diameter of the core is 980±60μm and the diameter of the clad is 1000±60μm.
What is the maximum temperature that the cable can withstand?
The cable can withstand a maximum temperature of 105 Celsius Degrees.
What is the core material of the cable?
The core material of the cable is Polymethyl-methacrylate (PMMA).
What is the product name?
The product name is Heat Resistant POF Cable.
