Customize High Precision Optical Lens PV
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Changchun Sunday Optics Co., ltd -
On FindLight:
since 2024
Description

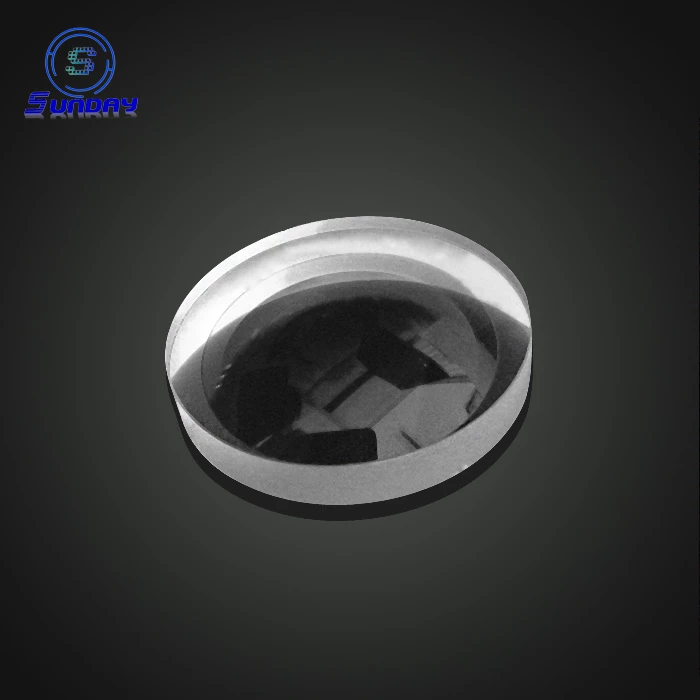

Discover the precision and quality of our Bi-Concave Lenses, meticulously crafted to meet the highest standards in optical performance. These lenses are designed with a biconcave structure, making them ideal for a variety of optical applications where light divergence is required. The use of premium materials ensures that each lens delivers exceptional clarity and durability, making them a reliable choice for professionals in the field.
Our Bi-Concave Lenses are available in a wide range of diameters, from 0.35mm to 700mm, allowing for versatile use across different projects. The diameter tolerance is maintained at an impressive +0.00/-0.01mm, ensuring precise measurements and consistency. The surface quality of these lenses is rated at 10-5, providing a flawless finish that enhances optical performance. With a surface irregularity of λ/10 at 632.8nm, or customized to your specifications, these lenses offer superior wavefront accuracy.
Constructed from a variety of high-quality optical materials, including Optical Glass, BK7, H-K9L, UVFS, Germanium, Silicon, CaF2, MgF2, ZnSe, ZnS, and Sapphire, these lenses are engineered to meet diverse optical needs. The thickness tolerance is precisely controlled at +0/-0.02mm, and the clear aperture exceeds 90% of the diameter, ensuring maximum light transmission and minimal distortion. The chamfer ranges from 0.05 to 0.5mm, and the centration is less than 30 arcseconds, further enhancing the lens's precision.
Our Bi-Concave Lenses are available with a variety of coating options to suit different wavelength requirements. Choose from Single Mag2 or Multiple Layers AR Coating, with options for wavelength ranges of 350-650nm, 650-1050nm, and 1050-1585nm. For specialized needs, custom coating designs are also available, ensuring that your specific optical requirements are met with precision and efficiency.
Customize High Precision Optical Lens PV
Specifications |
|
|---|---|
| Material: | BK7 |
| Diameter: | 0.35 mm |
| Lens Type: | Plano-Convex |
| Material: | Optical Glass,BK7,H-K9L,UVFS,Germanium,Silicon,CaF2,MgF2,ZnSe,ZnS,Sapphire. |
| Dia.: | 0.35-700mm |
| Dia.Tol.: | +0.00/-0.01mm |
| Surface Quality: | 10-5 |
| Surface Irregulatiry: | λ/10 @632.8nm or customer design |
| Clear Aperture: | >90% of diameter |
| Centeration: | Centeration |
Features
- Structure: Bi-Concave Lens
- Material Options: Optical Glass, BK7, H-K9L, UVFS, Germanium, Silicon, CaF2, MgF2, ZnSe, ZnS, Sapphire
- Diameter Range: 0.35 - 700 mm
- Diameter Tolerance: +0.00 / -0.01 mm
- Surface Quality: 10-5
- Surface Irregularity: λ/10 @ 632.8 nm or customer design
- Thickness Tolerance: +0 / -0.02 mm
- Clear Aperture: Greater than 90% of diameter
- Chamfer: 0.05 - 0.5 mm
- Centeration: Less than 30 arcsec
- Coating Options: Single Mag2, Multiple Layers AR Coating
Applications
- Microscopy: Ideal for enhancing image clarity and resolution in various microscopy applications.
- Laser Systems: Suitable for use in laser systems requiring precise beam shaping and control.
- Optical Instruments: Essential component for telescopes, binoculars, and other optical devices.
- Imaging Systems: Enhances performance in cameras and imaging systems by improving focus and reducing aberrations.
- Spectroscopy: Used in spectroscopic equipment for accurate light dispersion and analysis.
- Medical Devices: Utilized in medical imaging and diagnostic equipment for improved accuracy and detail.
- Research and Development: Supports various R&D projects requiring high precision optical components.
- Custom Optical Solutions: Can be tailored to specific customer requirements for unique optical applications.
Frequently Asked Questions
The Bi-Concave Lens is made from various optical glasses including BK7, H-K9L, UVFS, Germanium, Silicon, CaF2, MgF2, ZnSe, ZnS, and Sapphire.
The diameter of the Bi-Concave Lens ranges from 0.35mm to 700mm.
The surface quality of the lens is rated at 10-5.
The surface irregularity is λ/10 at 632.8nm or can be customized as per customer design.
The thickness tolerance of the lens is +0/-0.02mm.
The lens can be coated with Single Mag2 or Multiple Layers AR Coating, with options for wavelength ranges A: 350-650nm, B: 650-1050nm, C: 1050-1585nm, or a custom design.
The clear aperture is greater than 90% of the diameter.
