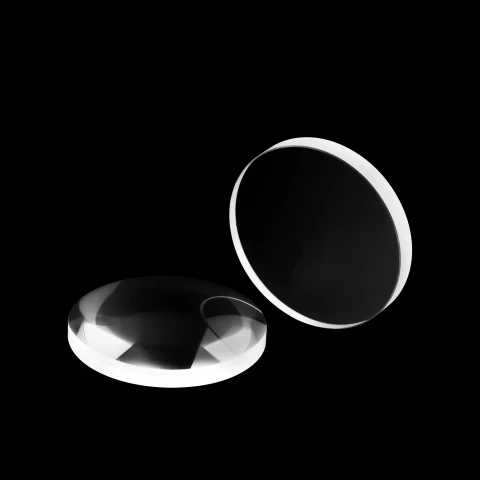

Manufacturer Custom High Transmittance Optical BaF2 Barium Fluoride Plano-convex Lens for Infrared Detector and Sensor

Name: Manufacturer Custom High Transmittance Optical BaF2 Barium Fluoride Plano-convex Lens for Infrared Detector and Sensor
Brand: Henan UM Optics Ltd
Availability: InStock

Description

UM Optics BaF₂ Plano-Convex Lenses are precision optical components crafted from high-grade barium fluoride crystal. Engineered with one flat surface and one convex surface, these positive focal length lenses deliver efficient light focusing, collimation, and beam expansion across an ultra-broad wavelength range (0.15–14 μm). Combining exceptional transmission, high-energy radiation resistance, and tailored surface quality, they serve as critical elements in UV, Visible, and IR optical systems.

Specifications

Material:	BaF2
Diameter:	20 mm
Focal Length:	50 mm
Edge Thickness, Te:	2 mm
Lens Type:	Plano-Convex
Dimension Tolerance:	+0/-0.1mm
Surface Quality:	60-40,40-20,or better
Flatness:	1/4λ

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Ultra-Broad Spectral Transmission: Boasts an exceptional transmission range of 0.15μm to 14μm (from DUV to mid-IR)
High-Purity Optical Material: Crafted from high-purity synthetic BaF₂ crystal with excellent optical homogeneity, low internal stress, and minimal impurities, ensuring low light scattering and stable optical performance even in extreme conditions
Superior Radiation Resistance: Exhibits stronger resistance to high-energy radiation compared to calcium fluoride, making it suitable for use in high-radiation environments such as nuclear detection, high-energy physics experiments, and aerospace optical systems
Stable Thermo-Mechanical Performance: Features a moderate thermal expansion coefficient (18.1×10⁻⁶/°C @ 273K), high melting point (1280°C), and good thermal conductivity (11.72 W·m⁻¹·K⁻¹ @ 286K), ensuring stable operation in a wide temperature range (-40℃ to 100℃)
Good Scintillation Properties: Possesses fast scintillation response with dual emission peaks (220nm fast component and 310nm slow component), making it suitable for radiation detection and particle counting applications in addition to optical imaging

Applications

Laser Systems: Used in laser beam expansion (Galilean structure), beam divergence, and aberration compensation for DUV, visible, and IR lasers; suitable for laser cutting, welding, marking, and high-power laser systems where broad spectral transmission and radiation resistance are required
Thermal Imaging & Cryogenic Systems: Integrated into cryogenic refrigeration imaging systems and thermal cameras for MWIR (3-5μm) thermal imaging, widely used in aerospace, defense, and industrial temperature monitoring applications
Spectroscopy & Scientific Research: Applied in spectrophotometers, monochromators, and spectrometers for DUV to mid-IR spectroscopy; used in high-energy physics, material science, and atmospheric research due to its broad transmission and radiation resistance
Aerospace & Defense: Utilized in aerospace optical systems, satellite-borne sensors, and defense equipment (e.g., night vision devices, missile guidance systems) for its stability in extreme temperatures and radiation resistance
Radiation Detection: Used in scintillation detectors, nuclear radiation monitoring equipment, and particle detectors, leveraging its fast scintillation response and high radiation resistance
Optical Communication & Fiber Optics: Employed in fiber coupling systems and IR optical communication devices to adjust beam divergence angles and improve coupling efficiency, especially in mid-IR communication bands
Medical & Biomedical Optics: Used in IR diagnostic equipment, medical spectroscopy, and endoscopic systems where broad spectral transmission and biocompatibility (in dry environments) are required
