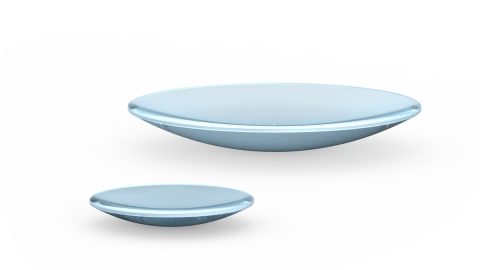

The OPTOMAN PCX-F100-UVFS-12.7-ET1.56-AR551-AR551 is a 12.7 mm diameter plano-convex lens manufactured from UV fused silica (UVFS) and designed for precision beam focusing in demanding laser and photonics applications. With a +100 mm focal length, the lens provides controlled optical focusing while maintaining excellent surface quality and low wavefront distortion.

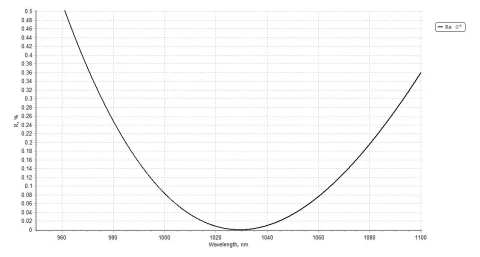

Both optical surfaces feature an IBS anti-reflective coating optimized for 1030 nm, with reflectance below 0.1% at normal incidence. The coating and UVFS substrate are suited to high-intensity ultrafast laser environments, offering low optical loss and compatibility with Yb:YAG laser systems. The lens has a 2.0 mm center thickness, minimum 10 mm clear aperture, and surface irregularity below λ/6 at 633 nm.

PCX-F100-UVFS-12.7-ET1.56-AR551-AR551 100mm UVFS Plano-Convex Lens

Visit the Optoman Store

Specifications

Lens Type: Plano-Convex
Material: UVFS
Diameter: 12.7 mm
Focal Length: 100 mm
Edge Thickness, Te: 2 mm
Surface Quality, S1/S2 (scratch-dig): 20-10
Surface Irregularity, S1/S2: <= Lambda/6
Manufacturer Part Number (MPN): PCX-F100-UVFS-12.7-ET1.56-AR551-AR551
FindLight SKU: FL-24762

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • UV Fused Silica (UVFS) Plano-Convex Lens
  • 12.7 mm Diameter Precision Optical Element
  • 100 mm Positive Effective Focal Length
  • 1030 nm Broadband-Optimized Anti-Reflective Coating
  • Less Than 0.1% Surface Reflectance at 1030 nm
  • 1.56 Refractive Index Optical Material
  • 20-10 Scratch-Dig Surface Quality Specification
  • Less Than λ/6 Surface Irregularity at 633 nm
  • 10 mm Minimum Centered Clear Aperture
  • 2.0 mm Center Thickness for Compact Optical Integration
  • Less Than 3 Arcmin Centration Error
  • High-Precision Optical Surface Finishing
  • Suitable for 1030 nm Ultrafast Laser Systems
  • Designed for Precision Laser Beam Focusing and Optical Applications

Applications

  • Yb:YAG Ultrafast Laser Systems
  • Femtosecond and Picosecond Laser Beam Focusing
  • Ultrafast Laser Beam Delivery
  • Micromachining and Laser Processing
  • Scientific and Research Optical Setups
  • Nonlinear Optics Experiments
  • Precision Optical Instrumentation
  • Laser-Based Imaging and Spectroscopy

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.4000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What type of lens is the PCX-F100-UVFS-12.7-ET1.56-AR551-AR551?
It is a plano-convex lens made from UV fused silica, featuring a 12.7 mm diameter and a positive 100 mm focal length.
What wavelength is the lens coating optimized for?
The anti-reflective coating is optimized for 1030 nm operation, with reflectance below 0.1% at 0° angle of incidence on both optical surfaces.
Is this lens suitable for ultrafast lasers?
Yes. Its UVFS substrate and ultrafast-laser-oriented AR coating make it suitable for femtosecond and picosecond laser systems operating around 1030 nm.
What are the main optical specifications of this lens?
The lens has a +100 mm focal length with a tolerance of ±1%, a 12.7 mm diameter, 2.0 mm center thickness, minimum 10 mm centered clear aperture, and surface irregularity below λ/6 at 633 nm.
Which laser systems can use this 100 mm plano-convex lens?
The lens is intended for 1030 nm Yb:YAG ultrafast laser applications and can be integrated into systems such as Light Conversion PHAROS and CARBIDE, Coherent Monaco, Lumentum FemtoBlade, TRUMPF TruMicro, Spectra-Physics IceFyre FS, Amplitude Satsuma and Tangor, EKSPLA FemtoLux, Thorlabs FSL1030X2, Fluence Jasper X1, and Photonics Industries FS-series systems.
