What is the difference between Galilean and Keplerian beam expanders?

Galilean beam expanders use a negative (diverging) lens followed by a positive (converging) lens, producing a compact design without an internal focal point and typically lower back-reflections. Keplerian expanders use two positive lenses, creating an internal focus where spatial filters or pinholes can be added for beam cleanup, at the cost of longer length and higher sensitivity to contamination at the focus. Galilean designs are common for high-power and compact systems, while Keplerian designs are preferred when beam quality and spatial filtering are critical.

What is the difference between fixed, zoom, and variable beam expanders?

Fixed beam expanders provide a single discrete magnification (e.g., 2x, 5x, 10x) defined by a fixed lens spacing, offering high stability and simpler alignment. Zoom beam expanders allow continuous magnification adjustment over a range (e.g., 2–8x) using movable lens groups but require more precise mechanical design and may introduce magnification-dependent aberrations. Some variable designs are optimized for a specific wavelength band, while others are achromatic and cover multiple lines or broadband sources.

Which key specifications matter most when selecting a beam expander for a given laser?

Critical parameters include input and output clear aperture, magnification, design wavelength or wavelength range, and input beam type (collimated vs. divergent). For laser applications, you must also consider maximum input power or energy density, coating type and damage threshold (LIDT), input beam diameter tolerance, and allowable wavefront error. Mechanical factors such as mount type, interface threads, and environmental sealing may be important for integration into industrial or laboratory setups.

How do I match divergence, M², and clear aperture when comparing beam expanders?

The expander should accept the full input beam diameter (typically 1–2× 1/e² diameter) without clipping, taking into account pointing and alignment tolerances. Output divergence is approximately input divergence divided by the magnification, but real beams with M² > 1 will show residual divergence and potentially increased aberration sensitivity; check specified wavefront error and design M² range. When comparing products, ensure the clear aperture, magnification, and specified wavelength range are compatible with your beam parameters and required far-field or focus performance.

What are typical lead times, customization options, and pricing drivers for beam expanders?

Standard catalog beam expanders at common wavelengths (e.g., 532 nm, 633 nm, 1064 nm, 1550 nm) often ship in a few weeks, while custom designs with nonstandard magnifications, materials, or coatings can range from 6–12 weeks or more. Customization may include different magnification ratios, extended wavelength ranges, higher LIDT coatings, mechanical interface changes, or integration of alignment features. Pricing is mainly driven by optical complexity (zoom vs. fixed), coating type and performance, tolerances on wavefront and centration, and mechanical robustness or environmental qualification.

Filter Products

Optics
Lenses
Beam Expanders

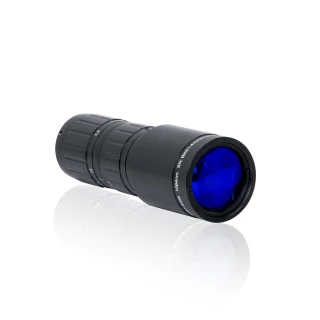

Beam Expanders for Laser Beam Conditioning

Q: What is a beam expander and how does it work in a laser or imaging setup?

A beam expander is an optical assembly that increases the diameter of a collimated beam, typically using a pair of lenses arranged as a Galilean or Keplerian telescope. By enlarging beam diameter, it reduces divergence and can improve focusing to smaller spots or enable long-distance propagation. Magnification is defined as the ratio of output to input beam diameter and is set by the focal length ratio of the lenses.

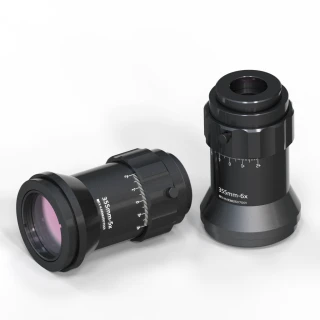

355 nm Laser Beam Expander

Request Quote

Sold by: Fuzhou Min-Optronics Technology Co.,Ltd Ships from: China

Specifications
Magbification:	From 2X to 12X
Max. Input Aperture [mm]:	8mm
Max. Output Aperture [mm]:	31mm
Pointing Stability [µrad]:	<1
Wavelength:	355nm

Scanner Optics Beam Expander

Request Quote

Sold by: Scanner Optics Co., Ltd. Ships from: China

Specifications
Wavelength Range:	355 – 1064 nm
Magniﬁcation:	1–4X, 3–6X, 2X, 2.2X, 3X
Clear Input Aperture (mm):	Φ10, Φ14
Max. Input Beam Aperture (mm):	Φ6, Φ8.5, Φ10, Φ12,Φ32
Max. Output Beam Aperture (mm):	Φ32, Φ38

Did You Know?

A common misconception is that a beam expander always improves beam quality: linear optics cannot reduce M², but expanding a Gaussian beam (e.g., 2×–10×) does reduce divergence by the same factor and allows tighter focusing downstream. In high-power systems, even a modest 3× expander dramatically lowers on-optic fluence (by ~9×), which is often the difference between safe operation and coating damage. Keplerian expanders (two positive lenses) provide access to a real focal plane for spatial filtering, while Galilean designs (positive + negative lens) avoid internal foci and are preferred for high-peak-power pulsed lasers to mitigate nonlinear effects and air breakdown.

Related Resources

Frequently Asked Questions

A beam expander is an optical assembly that increases the diameter of a collimated beam, typically using a pair of lenses arranged as a Galilean or Keplerian telescope. By enlarging beam diameter, it reduces divergence and can improve focusing to smaller spots or enable long-distance propagation. Magnification is defined as the ratio of output to input beam diameter and is set by the focal length ratio of the lenses.

Overview of Beam Expanders

Beam Expanders are optical assemblies used to increase or decrease the diameter of a collimated laser beam while preserving wavefront quality. By changing beam size, they enable tighter focusing, lower divergence, improved pointing stability, and better matching of the beam to downstream optics such as scanners, objectives, or spatial filters.

Most Beam Expanders are built from lens groups in Galilean (negative-positive) or Keplerian (positive-positive) configurations. They are typically designed for a specific wavelength or spectral band with appropriate anti-reflection coatings to minimize loss and back reflections in high-sensitivity or high-power laser setups.

Typical Specifications and Use Cases

Key specifications for Beam Expanders include expansion ratio (e.g., 2×, 3×, 5×, 10×), input and output clear aperture, input beam diameter range, wavelength or spectral range, and optical coatings (e.g., 355 nm, 532 nm, 1064 nm, 10.6 μm). Additional parameters often listed are input/output thread type, transmission, wavefront error, and allowable beam divergence.

Many Beam Expanders offer fixed or variable magnification. Variable designs allow continuous zoom between ratios, supporting flexible R&D setups. Focusing or collimation adjustment is frequently provided to compensate for slight input beam divergence. Some models are explicitly rated for high-power lasers, with specifications for maximum CW power or pulse energy, and materials such as fused silica or ZnSe.

Beam Expanders are used in laser material processing, free-space optical communication, LIDAR, laser scanning, microscopy, holography, and beam delivery lines for scientific experiments. By tailoring the beam size, they optimize spot size on the workpiece or detector and control Rayleigh range in tightly focused systems.

Buyer Guidance on FindLight

When selecting Beam Expanders on FindLight, compare expansion ratio, wavelength compatibility, clear aperture, and power handling against your laser source and downstream optics. Check mechanical interface details such as input/output threads, housing length, and mountability to ensure straightforward integration into your existing beam path.

Use the platform to review datasheets, then request quotes or technical clarifications directly from manufacturers and distributors. Multiple Beam Expanders can be evaluated side by side, and you can send RFQs without registration, streamlining sourcing for both prototype and production beam delivery systems.
