Aspherical Lenses for Precision Light Transport

Did You Know?

Did you know an aspherical lens can cut spherical aberration by an order of magnitude compared to a spherical lens of the same diameter and focal length, often reducing rms spot size from tens of micrometers to just a few micrometers? By using a surface profile described by a conic constant (k) and higher-order aspheric coefficients, designers can correct off-axis coma and astigmatism in a single element that would otherwise require a multi-lens spherical assembly. This is why compact imaging and focusing systems frequently replace 2–3 spherical lenses with a single molded or polished asphere while maintaining NA and MTF performance.

Frequently Asked Questions

An aspherical lens has at least one surface whose curvature varies with radial distance from the optical axis, rather than being part of a sphere. This non-spherical profile is designed to correct spherical aberration and other off-axis aberrations more effectively than a simple spherical lens, enabling improved image quality, reduced element count, or more compact optical systems.

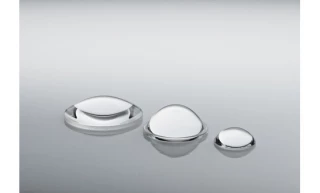

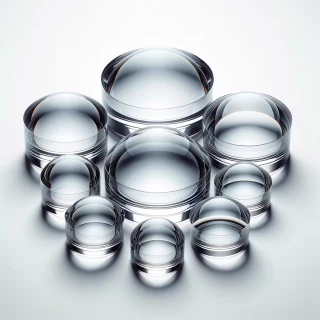

Aspherical lenses for controlled light transport

Aspherical lenses use non-spherical surface profiles to correct spherical aberration and other monochromatic errors in light transport systems. By deviating from a simple spherical geometry, an Aspherical element can maintain tight focus, improve edge sharpness, and reduce the number of elements required in a lens assembly.

On FindLight, Aspherical components in this category are designed for collimation, beam shaping, and imaging where high numerical accuracy and compact form factors are required. They are commonly integrated into diode laser collimators, fiber coupling modules, illumination optics, and compact imaging systems.

Typical specifications for Aspherical optics

Products listed under Aspherical lenses span a range of materials and mechanical formats. Typical parameters you will encounter include:

  • Substrate materials: Fused silica, BK7, other optical glasses, molded plastic, and infrared substrates for extended wavelength performance.
  • Wavelength range: UV (200–400 nm), visible (400–700 nm), NIR (700–1600 nm), and selected MIR bands depending on material and coatings.
  • Optical form: Plano-convex or bi-aspherical profiles, often with defined sag equations or even full asphere coefficients for precision design integration.
  • Key performance metrics: Focal length, numerical aperture, surface roughness, surface figure, slope error, and form tolerance specific to the Aspherical surface.

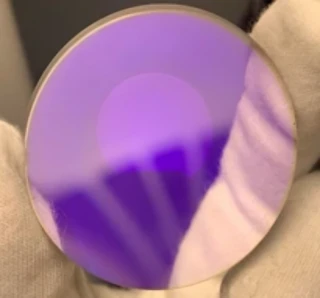

  • Coatings: Single- or multi-layer AR coatings matched to laser lines or broadband light transport applications.

Use cases and selection guidance

Aspherical lenses are frequently used to collimate laser diodes, compress or expand beams, and optimize coupling into fibers or light guides. In imaging, an Aspherical element can reduce distortion, improve MTF across the field, and minimize weight in portable or embedded optical systems.

When selecting an Aspherical lens on FindLight, compare clear aperture, effective focal length, numerical aperture, design wavelength, and coating bandwidth against your system requirements. Also examine CAD data or asphere coefficients if you plan to model the Aspherical surface in optical design software.

For procurement, you can request quotes directly from multiple suppliers listed under Aspherical lenses without registration. Use the provided datasheets to verify tolerances and environmental limits, then contact vendors for customization of curvature, diameter, coatings, or mounting options to align the Aspherical component precisely with your light transport architecture.
