Description
Using MPNICS\'s unique micro molding method, we offer new customized design in shortest lead-time at the lowest cost. We offer short turnaround for new designs and prototypes while keeping development costs among the lowest in the industry.

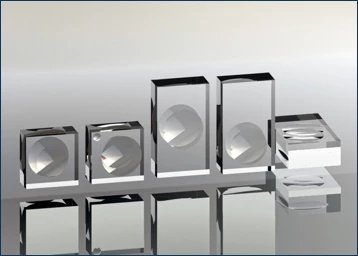

Micro Square Lens SGCD-0001-01
Specifications
| Diameter: | 1 mm |
|---|---|
| Material: | N-BK7 |
| Effective Focal Length: | 0.5 mm |
| Numerical Aperture (NA): | 0.5 |
| Wavelength Range: | 1550 – 1550 nm |
| Beam Diameter: | 0.5 mm |
| Type: | Collimator |
Features
Configuration: Aspherical Glass lens
Material:optical glass(RoHS compliant)
Coupling efficiency:-1.0dB under
Transmittance: 99.5% over
Size: 0.4 mm over
Material:optical glass(RoHS compliant)
Coupling efficiency:-1.0dB under
Transmittance: 99.5% over
Size: 0.4 mm over
Applications
Optical Transceivers of CWDM, LAN WDM
Tunable Optical module
Laser module and optical sensor module
Autonomous car industries (ADAS, LIDAR, HUD)
IoT industries
Tunable Optical module
Laser module and optical sensor module
Autonomous car industries (ADAS, LIDAR, HUD)
IoT industries
Frequently Asked Questions
What is the Micro Square Lens SGCD-0001-01 used for?
The Micro Square Lens SGCD-0001-01 is used for optical transceivers of CWDM, LAN WDM, tunable optical modules, laser modules, optical sensor modules, autonomous car industries (ADAS, LIDAR, HUD), and IoT industries.
What is the material used to make the Micro Square Lens SGCD-0001-01?
The Micro Square Lens SGCD-0001-01 is made of optical glass that is RoHS compliant.
What is the coupling efficiency of the Micro Square Lens SGCD-0001-01?
The coupling efficiency of the Micro Square Lens SGCD-0001-01 is -1.0dB over.
What is the manufacturing tolerance of the Micro Square Lens SGCD-0001-01?
The manufacturing tolerance of the Micro Square Lens SGCD-0001-01 is H±10㎛, CA±5㎛.
What is the operating temperature range of the Micro Square Lens SGCD-0001-01?
The operating temperature range of the Micro Square Lens SGCD-0001-01 is -40°C to 85°C.
