Lenticulars

Lenticular LN 760

Lenticular LN 760

The FRESNEL OPTICS LN 760 ist a lenticular by ORAFOL Fresnel Optics. Lenticulars are linear arrays of cylindrical lenses. Each groove has a tight radius. It provides multiple line images. Possible applications ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Radius: 0.077 mm
Facet Spacing: 0.127 mm
Clear Aperture (X): 61.5 mm
Clear Aperture (Y): 61.5 mm
Lenticular Length: 61.5 mm
Lenticular LN 611

Lenticular LN 611

The FRESNEL OPTICS LN 611 ist a lenticular by ORAFOL Fresnel Optics. Lenticulars are linear arrays of cylindrical lenses. Each groove has a tight radius. It provides multiple line images. Possible applications ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Radius: 0.157 mm
Facet Spacing: 0.187 mm
Clear Aperture (X): 99.2 mm
Clear Aperture (Y): 99.2 mm
Lenticular Length: 99.2 mm
Lenticular LN 615

Lenticular LN 615

The FRESNEL OPTICS LN 615 ist a lenticular by ORAFOL Fresnel Optics. Lenticulars are linear arrays of cylindrical lenses. Each groove has a tight radius. It provides multiple line images. Possible applications ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Radius: 0.38 mm
Facet Spacing: 0.76 mm
Clear Aperture (X): 89.4 mm
Clear Aperture (Y): Not Specified
Lenticular Length: Not Specified
Lenticular LN 629

Lenticular LN 629

The FRESNEL OPTICS LN 629 ist a lenticular by ORAFOL Fresnel Optics. Lenticulars are linear arrays of cylindrical lenses. Each groove has a tight radius. It provides multiple line images. Possible applications ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Radius: 0.483 mm
Facet Spacing: 0.381 mm
Clear Aperture (X): 114.3 mm
Clear Aperture (Y): 114.3 mm
Lenticular Length: 114.3 mm
Lenticular LN 663

Lenticular LN 663

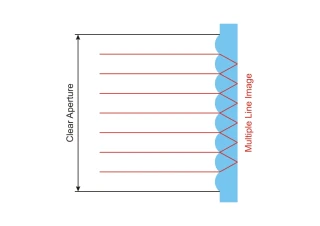

The FRESNEL OPTICS LN 663 ist a lenticular by ORAFOL Fresnel Optics. Lenticulars are linear arrays of cylindrical lenses. Each groove has a tight radius. It provides multiple line images. Possible applications ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Radius: 0.544 mm
Facet Spacing: 0.508 mm
Clear Aperture (X): 512.7 mm
Clear Aperture (Y): 422.1 mm
Lenticular Length: 512.7 mm
Lenticular LN 692

Lenticular LN 692

The FRESNEL OPTICS LN 662 ist a lenticular by ORAFOL Fresnel Optics. Lenticulars are linear arrays of cylindrical lenses. Each groove has a tight radius. It provides multiple line images. Possible applications ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Radius: 0.762 mm
Facet Spacing: 0.162 mm
Clear Aperture (X): 230.2 mm
Clear Aperture (Y): 180 mm
Lenticular Length: 180 mm
Lenticular LN 636

Lenticular LN 636

The FRESNEL OPTICS LN 636 ist a lenticular by ORAFOL Fresnel Optics. Lenticulars are linear arrays of cylindrical lenses. Each groove has a tight radius. It provides multiple line images. Possible applications ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Radius: 0.762 mm
Facet Spacing: 0.186 mm
Clear Aperture (X): 260.2 mm
Clear Aperture (Y): 259.2 mm
Lenticular Length: 259.2 mm
Lenticular LN 669

Lenticular LN 669

The FRESNEL OPTICS LN 669 ist a lenticular by ORAFOL Fresnel Optics. Lenticulars are linear arrays of cylindrical lenses. Each groove has a tight radius. It provides multiple line images. Possible applications ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Radius: 0.762 mm
Facet Spacing: 0.368 mm
Clear Aperture (X): 259 mm
Clear Aperture (Y): 258.3 mm
Lenticular Length: 258.3 mm
Lenticular LN 676

Lenticular LN 676

The FRESNEL OPTICS LN 676 ist a lenticular by ORAFOL Fresnel Optics. Lenticulars are linear arrays of cylindrical lenses. Each groove has a tight radius. It provides multiple line images. Possible applications ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Radius: 1.118 mm
Facet Spacing: 0.559 mm
Clear Aperture (X): 432 mm
Clear Aperture (Y): 429.1 mm
Lenticular Length: 429.1 mm
Lenticular LN 665

Lenticular LN 665

The FRESNEL OPTICS LN 665 ist a lenticular by ORAFOL Fresnel Optics. Lenticulars are linear arrays of cylindrical lenses. Each groove has a tight radius. It provides multiple line images. Possible applications ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Radius: 3.175 mm
Facet Spacing: 2.794 mm
Clear Aperture (X): 174.2 mm
Clear Aperture (Y): 121.9 mm
Lenticular Length: 174.2 mm

Did You Know?

Did you know that Lenticulars revolutionize visual storytelling? Featuring an array of cylindrical lenses, these optical marvels defy traditional flat imagery, unlocking immersive experiences in imaging and projectors. Popularized in advertising and product packaging, Lenticulars create dynamic displays, seamlessly transitioning between multiple images or producing captivating 3D effects. In projectors, they eliminate the need for 3D glasses, making educational presentations and entertainment more engaging. Their customizability allows for tailoring effects, from altering viewing angles to introducing mesmerizing motion. Beyond aesthetics, Lenticulars play a pivotal role in scientific visualization and innovative optical systems. Through their ability to manipulate light, Lenticulars are at the forefront of reshaping how we perceive and interact with visual content, making them indispensable in modern imaging technologies.

Frequently Asked Questions

Lenticulars are optical devices with an array of cylindrical lenses on one side. Unlike traditional lenses, they feature a series of closely spaced cylindrical elements, allowing for unique visual effects like 3D imaging and motion animation without the need for special glasses.

Lenticular Lenses: Enhancing Vision and Visual Experiences

Lenticular lenses are specialized optical components designed to address high refractive errors and create dynamic visual effects. By concentrating optical power in a central zone, these lenses provide effective solutions for individuals with severe vision impairments and are also utilized in various imaging applications.

Understanding Lenticular Lens Design

The unique structure of lenticular lenses features a high-power central region surrounded by a carrier zone with minimal or no prescription. This configuration reduces lens thickness and weight, making them more comfortable for users requiring strong prescriptions. The design minimizes peripheral distortion and enhances aesthetic appeal, often resembling a "fried egg" appearance due to the distinct central zone.

Applications in Vision Correction

Lenticular lenses are particularly beneficial for individuals with:

  • Aphakia: A condition where the eye's natural lens is absent, often post-cataract surgery.

  • High Myopia: Severe nearsightedness requiring substantial negative diopter correction.

  • Severe Hyperopia: Extreme farsightedness necessitating high positive diopter correction.

By focusing corrective power centrally, these lenses provide clear vision while maintaining a manageable lens profile.

Beyond Corrective Eyewear

Lenticular lens technology extends beyond vision correction into various industries:

  • 3D Displays: Utilized in screens to create depth perception without the need for special glasses.

  • Projection Screens: Enhance image brightness and viewing angles in projection systems.

  • Advertising: Employed in lenticular printing to produce images that change or move when viewed from different angles.

These applications leverage the lens's ability to direct light precisely, creating engaging visual effects.

Advantages of Lenticular Lenses

  • Weight Reduction: Concentrated power zones reduce overall lens mass.

  • Improved Aesthetics: Thinner lenses offer a more appealing appearance.

  • Versatility: Applicable in both medical and commercial imaging fields.

These benefits make lenticular lenses a preferred choice for specific high-power optical requirements.

Explore Lenticular Lens Options on FindLight

FindLight offers a curated selection of lenticular lenses suitable for various applications, from corrective eyewear to advanced imaging systems. Whether addressing severe refractive errors or seeking innovative visual solutions, our platform connects you with high-quality products to meet your optical needs.
