Description

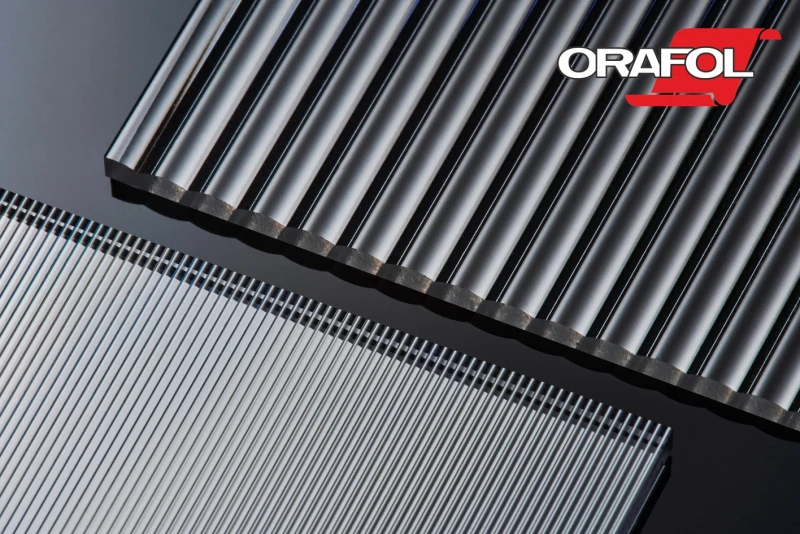

The FRESNEL OPTICS LN 663 ist a lenticular by ORAFOL Fresnel Optics.

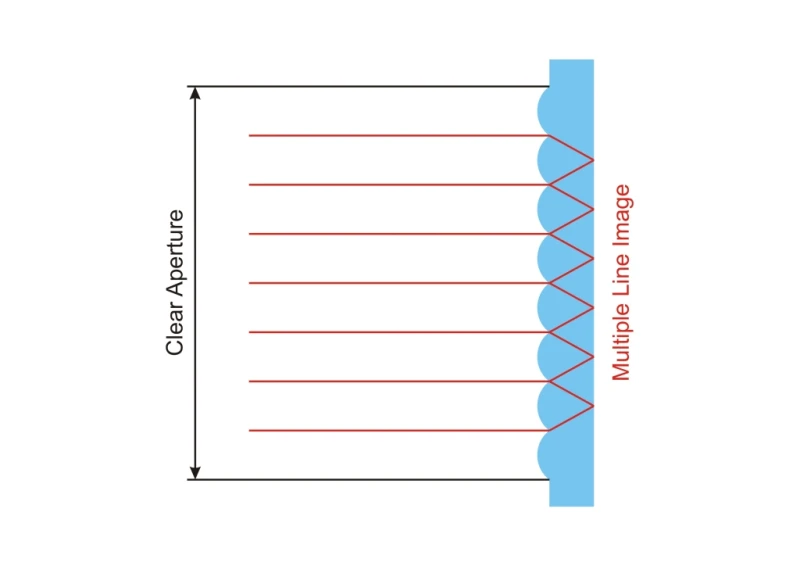

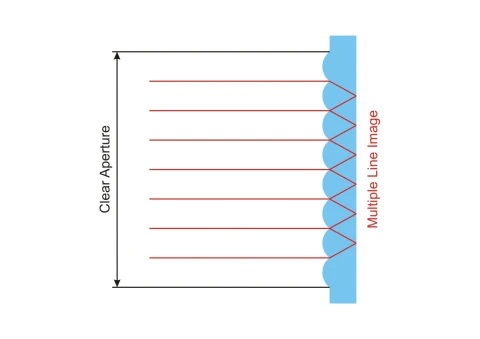

Lenticulars are linear arrays of cylindrical lenses. Each groove has a tight radius. It provides multiple line images. Possible applications include three-dimensional imaging, projection screens as well as sensor systems and specialized lighting solutions.
The LN 663 is made of PMMA or Polycarbonate ensuring high transmission, low weight and easy handling. Additionally the lenticular structure can be manufactured as a silicone-on-glass hybrid (SOG) for applications requiring the durability of a glass surface or higher operating temperatures. The specified thickness is a standard value that can be modified if required. It is manufactured with tight tolerances to ensure high quality of the optical images. Anti-reflective coatings and custom trimmings can be realized on request.
Lenticular LN 663
Specifications
| Radius: | 0.544 mm |
|---|---|
| Facet Spacing: | 0.508 mm |
| Clear Aperture (X): | 512.7 mm |
| Clear Aperture (Y): | 422.1 mm |
| Lenticular Length: | 512.7 mm |
| Thickness: | 2.5 mm |
Download Data Sheet
Features
- Customizable contours, fixture points and markings
- Optional optical coating for increased efficiency
- Lightweight and space saving design
- Combination with other FRESNEL OPTICS structures on plano side or as array
Applications
- Three-dimensional imaging
- Projection screens
- Sensor systems
- Lighting solutions
Frequently Asked Questions
What is the main application of the Lenticular Lens LN 663?
What material is the lens made from?
What is the maximum clear aperture of the lenticular?
Can the lens be customized?
How do I clean the lens without damaging it?
What kinds of optical coatings are available for the lenticular?
