Fresnel Cylindrical Lenses for Light Transport

Did You Know?

Did you know that Fresnel cylindrical lenses redefine optical design? These lenses, inspired by Augustin-Jean Fresnel's principles, feature a distinctive flat and lightweight structure, departing from traditional curved lenses. Their unique design allows for efficient focusing and manipulation of cylindrical light, making them instrumental in diverse applications such as laser line generation, barcode scanning, and astigmatism correction in vision devices. Fresnel cylindrical lenses bring versatility by minimizing weight, thickness, and cost while maintaining optical precision. This innovation has led to advancements in optical systems where space, weight, and performance are critical factors. Whether enhancing laser applications or optimizing vision devices, Fresnel cylindrical lenses exemplify a balance between compact design and optical excellence, showcasing their pivotal role in pushing the boundaries of modern optical technology.
Read more in our Blog

Frequently Asked Questions

Fresnel cylindrical lenses differ from traditional curved lenses with their flat and lightweight structure, inspired by Augustin-Jean Fresnel's principles. This departure allows for efficient manipulation of cylindrical light, offering a compact and versatile solution in various applications.

What Are Fresnel Cylindrical Lenses?

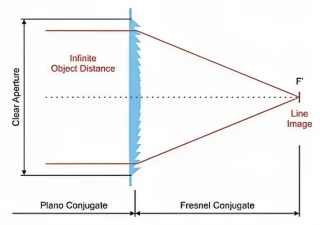

Fresnel Cylindrical lenses are linear optical elements that focus or collimate light in a single axis using a segmented (Fresnel) surface profile. Unlike full-thickness cylindrical lenses, a Fresnel Cylindrical lens approximates the curved surface with concentric grooves, significantly reducing thickness and weight while maintaining the desired focal behavior along one dimension.

In light transport systems, Fresnel Cylindrical components are used to compress, shape, or expand beams in one axis, enabling compact layouts in scanners, sensing heads, projectors, or illumination modules. Their thin profile makes them suitable for embedded or portable instruments where space and mass are constrained.

Typical Specifications on FindLight

On FindLight you will find Fresnel Cylindrical lenses with specifications such as:

  • Aperture and dimensions: Clear apertures from a few millimeters to several centimeters; rectangular or strip geometries for line focusing.
  • Focal length: Positive or negative focal lengths at a specified design wavelength, typically in the visible or NIR.
  • Groove structure: Groove pitch, groove depth, and profile type, which determine diffraction efficiency and scattering of the Fresnel Cylindrical surface.
  • Material: Commonly molded polymers (PMMA, polycarbonate) or glass variants, chosen according to wavelength range and environmental stability.
  • Surface quality and accuracy: Tolerances on focal length, groove alignment, and form error, important for precision light transport and beam shaping.
  • Coatings: Optional AR coatings to reduce Fresnel reflections and improve throughput in a given spectral band.

Use Cases and Buyer Guidance

Fresnel Cylindrical lenses are applied in barcode scanners, machine-vision line illumination, spectrometer input optics, sheet-beam formation, and compact laser line generators. When selecting a Fresnel Cylindrical element, compare focal length, wavelength range, aperture, and material compatibility with your source and detector geometry.

Evaluate whether the groove density and material of the Fresnel Cylindrical lens meet your requirements for aberration control, stray light, and thermal or UV exposure. For integration into multi-element light transport assemblies, review mechanical dimensions and mounting options.

On FindLight you can directly compare Fresnel Cylindrical product datasheets, then request quotes or technical clarifications from multiple suppliers without registration. This supports rapid iteration of your optical design, from prototype evaluation to series procurement.
