Description

The ORAFOL Fresnel Cylindrical Lens CY 575 is a high-performance optical component designed for a wide range of light management applications. Engineered with precision, this cylindrical lens offers exceptional light focusing and refraction capabilities, making it ideal for linear light concentration or expansion.

With its Fresnel design, the lens is lightweight, yet highly efficient, reducing material thickness without compromising optical performance. Manufactured from durable acrylic material, the CY 575 is built to withstand environmental changes, ensuring longevity and reliability in various conditions.

The ORAFOL Fresnel Cylindrical Lens CY 575 is optimized for applications requiring light collection, collimation, or focusing along a single axis. Its compact design and high transmission rate make it an excellent choice for projects that demand a balance of performance and portability.

Whether it's used in LED lighting systems, solar energy concentrators, or display technologies, this lens delivers superior optical clarity and precision. Its broad wavelength range further enhances versatility, making it suitable for both visible and near-infrared applications.

ORAFOL Fresnel Cylindrical Lens CY 575

Visit the ORAFOL Fresnel Optics Store

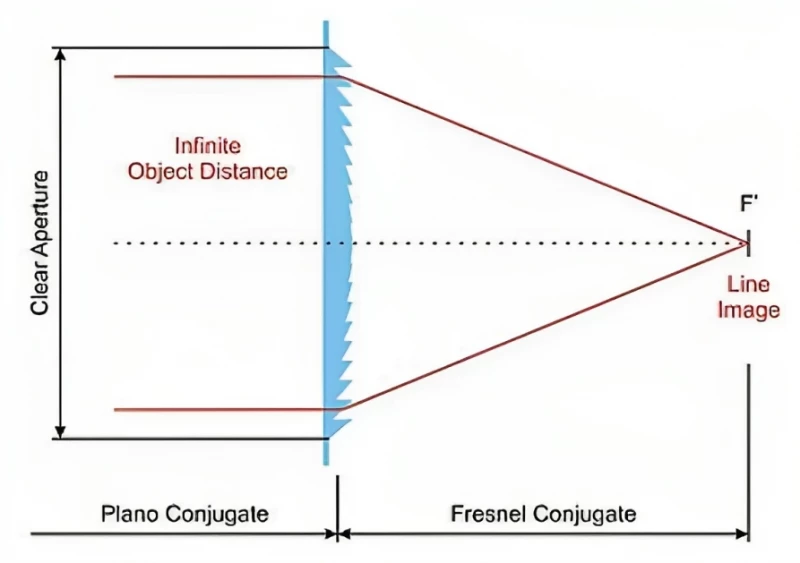

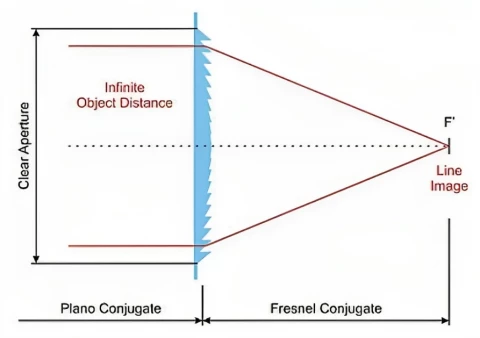

Specifications

Focal Length: 12.7 mm
Facet Spacing: 0.127 mm
Fresnel Conjugate: 12.7 mm
Plano Conjugate: Not Specified
Clear Aperture (X): 311.7 mm
Clear Aperture (Y): 13.2 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Cutting-Edge Fresnel Cylindrical Lens Technology
  • Linear Fresnel Structure for Directional Light Collection
  • Precision in Line Mapping for Enhanced Optical Performance
  • Lightweight Construction for Reduced Weight and Volume
  • Optimal Apertures and Optically Effective Surfaces

Applications

  • Laser Line Generators and Alignment Systems
  • Machine Vision and Imaging Technologies
  • Optical Measurement Instruments
  • Projection Systems and Displays
  • Specialized Lighting Applications

Frequently Asked Questions

What is the primary use of the ORAFOL Fresnel Cylindrical Lens CY 575?
It is primarily used for light management applications, such as light focusing, collimation, or expansion along a single axis.
What material is the lens made from?
The lens is made from durable acrylic material, designed to resist environmental wear and maintain long-term performance.
What wavelength range does the lens support?
The lens supports a broad wavelength range from 400 nm to 1000 nm, suitable for visible and near-infrared applications.
How much light transmission does the lens offer?
The Fresnel Cylindrical Lens CY 575 provides over 90% light transmission for enhanced clarity and brightness.
Can this lens be used in solar concentration systems?
Yes, it is ideal for solar concentration applications, enhancing light focusing efficiency for solar energy collection.
What are the lens's dimensions?
The dimensions of the lens are 150 mm in length and 50 mm in width, with a thickness of 2.5 mm.
Is the lens suitable for high-temperature environments?
Yes, it operates reliably in temperatures ranging from -30°C to +80°C.
How does the Fresnel design affect performance?
The Fresnel design reduces material thickness while maintaining high optical performance, making the lens lightweight and efficient.
Can this lens be used in LED lighting systems?
Yes, it is ideal for improving light collimation and distribution in LED lighting systems.
Does the lens offer good environmental resistance?
Yes, the acrylic material is resistant to environmental factors, ensuring durability and long-term use.

Got more questions? Use the inquiry form to ask the supplier directly.
