Description
The Fresnel Cylindrical Lens CY 570 from ORAFOL Fresnel Optics GmbH is a high-performance optical component designed to focus light into a line rather than a point, making it ideal for a wide range of applications. Constructed with the precision and expertise ORAFOL is known for, this lens features a lightweight design and compact form factor while maintaining the efficiency and quality of a traditional cylindrical lens.
The CY 570 lens provides excellent control over light direction and focus, ensuring high precision in beam shaping and alignment. Its Fresnel design reduces the amount of material needed, which in turn decreases weight and thickness without sacrificing optical performance. Whether you’re working with laser systems, optical instrumentation, or industrial automation, this lens is engineered for superior functionality. The lens also excels in environments that require energy efficiency and space-saving solutions, making it a perfect fit for cutting-edge optical systems where size and weight are critical factors.
With its ability to deliver outstanding performance even in high-power applications, the Fresnel Cylindrical Lens CY 570 is a versatile, reliable, and cost-effective solution for enhancing your optical systems.
ORAFOL Fresnel Cylindrical Lens CY 570
Specifications
Focal Length: | 138 mm |
---|---|
Facet Spacing: | 0.254 mm |

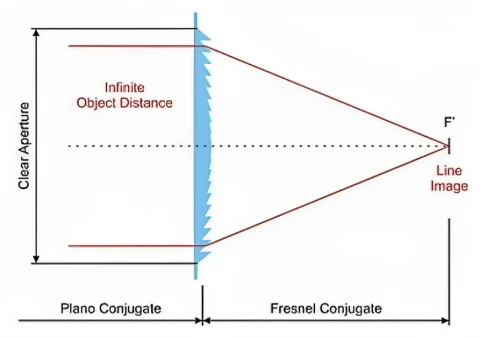

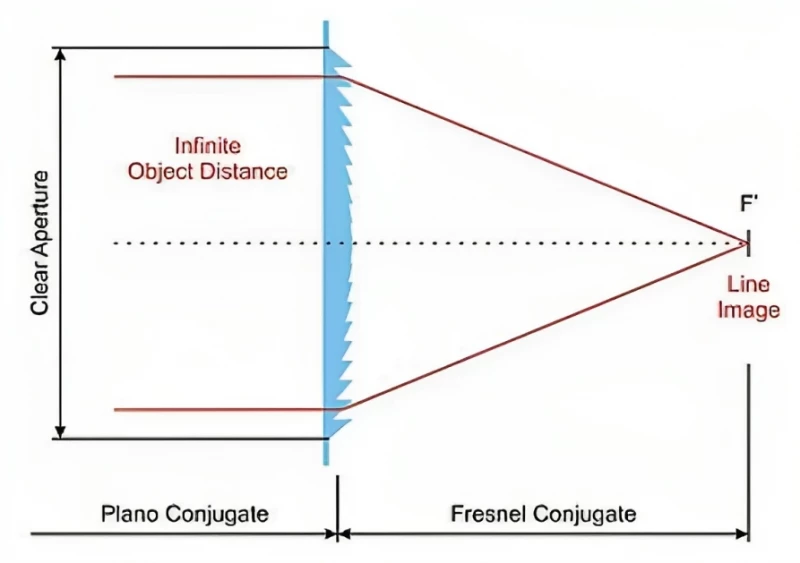

Fresnel Conjugate: | 390.5 mm |
Plano Conjugate: | 211.7 mm |
Clear Aperture (X): | 142.6 mm |
Clear Aperture (Y): | 117 mm |
Thickness: | 1.8 mm |
Features
- Cutting-Edge Fresnel Cylindrical Lens Technology
- Linear Fresnel Structure for Directional Light Collection
- Precision in Line Mapping for Enhanced Optical Performance
- Lightweight Construction for Reduced Weight and Volume
- Optimal Apertures and Optically Effective Surfaces
Applications
- Laser Line Generators and Alignment Systems
- Machine Vision and Imaging Technologies
- Optical Measurement Instruments
- Projection Systems and Displays
- Specialized Lighting Applications
Frequently Asked Questions
What is the main function of the Fresnel Cylindrical Lens CY 570? It focuses light into a line rather than a point, making it ideal for applications like laser scanning and optical sensing.
What materials are used to manufacture the lens?
Can the focal length of the lens be customized?
What industries typically use this lens?
How does the Fresnel design benefit this lens?
What is the typical transmission efficiency of this lens?
Is this lens suitable for high-power applications?
What temperature range can the lens operate in?
What is the advantage of using this lens in laser scanning systems?
Can this lens be used in medical imaging devices?
