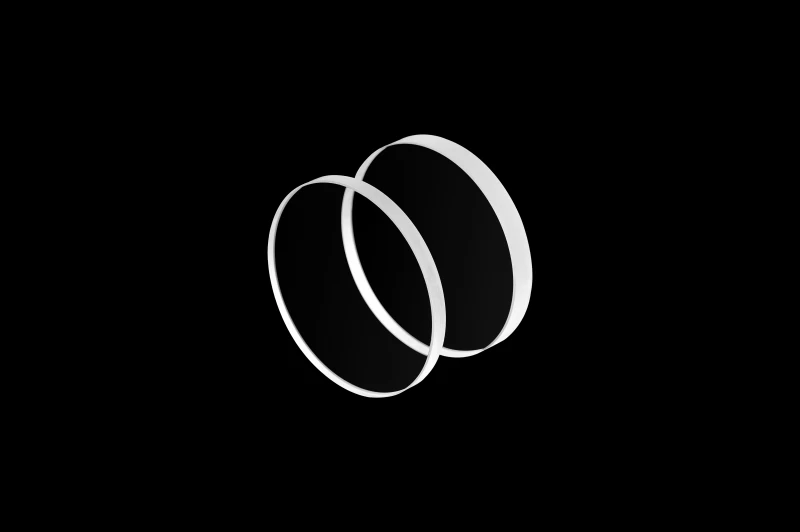

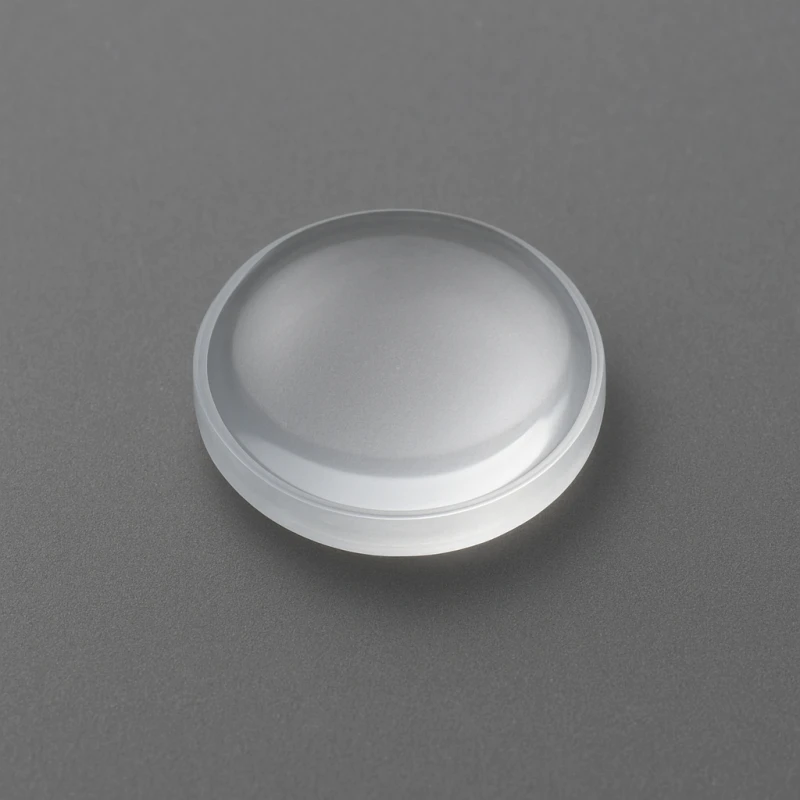

Factory Custom Optical Aspherical Lens

Description

Aspherical lens are lens with a specially designed surface that can correct spherical aberration and improve imaging quality. Compared with traditional spherical lens, aspherical lens can better control the propagation direction and focusing effect of light.Aspherical optical parts can well correct various aberrations in optical systems and improve imaging quality. It can replace spherical parts with one or several aspheric parts, thereby simplifying the instrument structure, reducing costs and effectively reducing the weight of the instrument.In optical systems, aspherical lens are widely used to eliminate spherical aberration, coma, astigmatism, distortion, etc. Compared with spherical lens, aspheric lens can achieve higher optical quality and imaging performance. Therefore, aspheric lens have been widely used in some applications with high imaging requirements, such as optical instruments, photographic lenses, telescopes, etc.

Specifications

Diameter:	2 mm
Material:	UVFS, CaF2, ZnSe, Ge
Effective Focal Length:	15 mm
Wavelength Range:	300 – 1600 nm

Download Data Sheet

Features

Correcting aberrations: The curvature radius of aspheric lens varies continuously from the centre to the edge, enabling superior correction of spherical aberration and chromatic aberration, thereby enhancing spot quality
Efficient imaging: Their specialised lens shape alters the propagation path of light rays, ensuring that light of different wavelengths converges at the same focal point for optimal imaging performance
Reduced optical element count: Employing aspheric lens diminishes the number of optical components required, thereby lowering production costs and system volume
Extensive applications: Aspheric lens find broad utilisation in barcode scanning, laser collimation, optical imaging, and related fields

Applications

Optical Assemblies: Ideal for use in various high-precision optical systems, ensuring sharp image quality
Laser Systems: Enhances performance in laser-based applications by reducing spherical aberrations
Medical Devices: Essential for medical imaging systems where clarity and precision are critical
Microscopy: Supports high-resolution imaging for advanced microscopy techniques
Optical Sensors: Improves sensor accuracy and performance in demanding environments
Telecommunication: Ensures high-performance light transmission for optical communication systems

Name

Work Email

Organization

How many do you need?

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Henan UM Optics Ltd

On FindLight:

since 2024

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the advantage of aspherical lens?

Compared with traditional spherical lens, aspherical lens can better control the propagation direction and focusing effect of light.

What materials can aspheric lens be made of?

Aspherical lens can be fabricated using a wide range of materials including CaF2、BaF2、MgF2、LiF、ZnSe、ZnS、Ge、Silicon、BK7 Glass.

Which substrate and coating should I choose for an aspherical lens used in UV laser focusing (355 nm)?

UV fused silica is ideal for 355 nm applications—it has high UV transmittance and low thermal expansion. Pair it with a UV broadband AR coating to reduce surface reflection.

What are aspherical lens primarily used for?

They correct spherical aberration in lasers, imaging systems, consumer electronics, medical devices, and optical instrumentation requiring high precision.

How are aspherical lens tested before dispatch?

All lens undergo rigorous testing in our advanced metrology lab, including surface profile and aberration checks. Post-testing, they are cleaned and inspected for surface imperfections by the QA team to ensure spec compliance.
