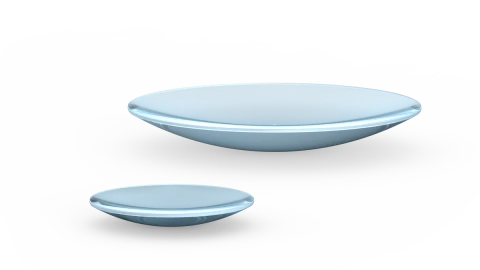

The OPTOMAN PCX-F150-UVFS-12.7-CT2.0-AR551-AR551 is a 12.7 mm diameter plano-convex lens manufactured from UV fused silica and designed for precision beam focusing in ultrafast laser systems. With a positive focal length of 150 mm and an anti-reflective coating optimized for 1030 nm, this lens provides efficient transmission while minimizing optical losses.

Its IBS AR coating delivers less than 0.1% reflectance at 1030 nm for normal incidence on both optical surfaces. The lens is manufactured with a surface quality of 20-10 and surface irregularity below λ/6 at 633 nm, making it suitable for demanding laser beam delivery and focusing applications.

The low-absorption optical design and ultrafast-laser-compatible coating make this convex lens particularly useful in femtosecond and picosecond systems where maintaining beam quality, pulse characteristics, and high damage-threshold performance is important.

PCX-F150-UVFS-12.7-CT2.0-AR551-AR551 150mm UVFS Plano-Convex Lens

Visit the Optoman Store

Specifications

Lens Type: Plano-Convex
Material: UVFS
Diameter: 12.7 mm
Focal Length: 150 mm
Edge Thickness, Te: 2 mm
Surface Quality, S1/S2 (scratch-dig): 20-10
Surface Irregularity, S1/S2: <= Lambda/6
Manufacturer Part Number (MPN): PCX-F150-UVFS-12.7-CT2.0-AR551-AR551
FindLight SKU: FL-24761

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 12.7 mm (+0/-0.1 mm) clear optical diameter
  • UV fused silica (UVFS) substrate for high-performance laser applications
  • +150 mm focal length with ±1% tolerance
  • 2.0 mm nominal center thickness

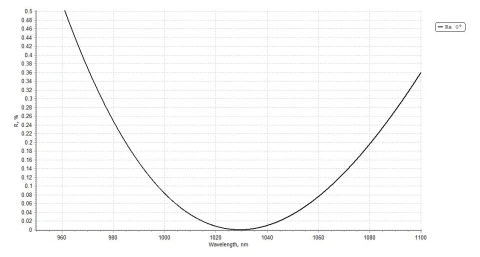

  • IBS anti-reflective coating with AR <0.1% at 1030 nm
  • AR coating applied to both optical surfaces
  • Designed for 1030 nm ultrafast laser operation
  • 20-10 surface quality according to MIL-PRF-13830B
  • Surface irregularity below λ/6 at 633 nm over the clear aperture
  • Minimum 10 mm centered clear aperture
  • Centration error below 3 arcmin
  • Suitable for high-peak-intensity femtosecond and picosecond laser systems

Applications

  • Focusing and beam delivery in 1030 nm ultrafast laser systems
  • Femtosecond laser beam focusing
  • Picosecond laser optics
  • Yb laser systems and first-harmonic beam paths
  • Precision laser processing and micromachining
  • Ultrafast laser beam routing and optical setup development
  • Laboratory laser systems and research instrumentation
  • Optical assemblies requiring low-reflection 1030 nm focusing optics

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.4000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What type of lens is the OPTOMAN PCX-F150-UVFS-12.7-CT2.0-AR551-AR551?
It is a plano-convex lens made from UV fused silica, featuring a 12.7 mm diameter and a positive 150 mm focal length. It is designed primarily for focusing and beam-control applications.
What wavelength is this lens optimized for?
The lens is optimized for 1030 nm operation. Both optical surfaces feature an IBS anti-reflective coating specified at less than 0.1% reflectance at 1030 nm and 0° angle of incidence.
Is this lens suitable for ultrafast lasers?
Yes. Its UV fused silica substrate and low-reflection coating make it suitable for femtosecond and picosecond laser applications, particularly 1030 nm Yb-based ultrafast systems.
What are the optical quality specifications?
The lens has a 20-10 surface quality specification over the clear aperture and surface irregularity of less than λ/6 at 633 nm. Its centration error is specified at less than 3 arcmin.
What is the focal length and lens diameter?
The lens has a nominal focal length of +150 mm with a ±1% tolerance and a diameter of 12.7 mm with a +0/-0.1 mm dimensional tolerance.
