Description

Calcium Fluoride (CaF₂) plano-concave lenses are high-purity single-crystal optical components featuring one flat surface and one inward-curving concave surface, professionally designed for beam divergence, optical beam expansion and focal length reduction applications. These lenses feature ultra-wide spectral transmission covering deep ultraviolet to mid-infrared bands, coupled with low dispersion and minimal intrinsic light absorption. Manufactured with high optical homogeneity and precise surface figuring, CaF₂ plano-concave lenses deliver stable and reliable negative optical power, effectively diverging incident laser and spectral beams without introducing extra background interference, ideal for high-precision broadband optical system beam adjustment.

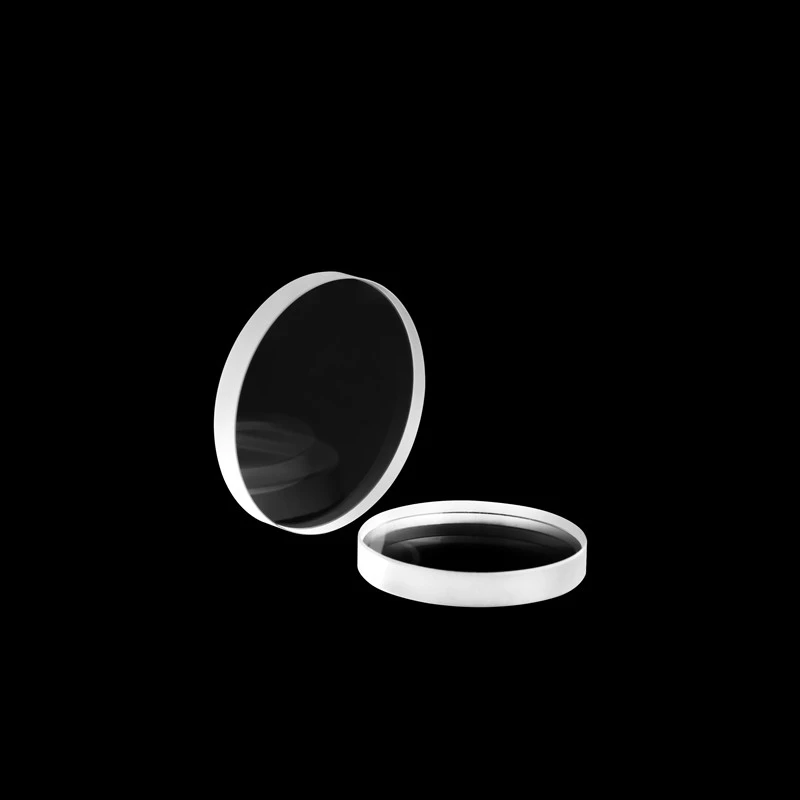

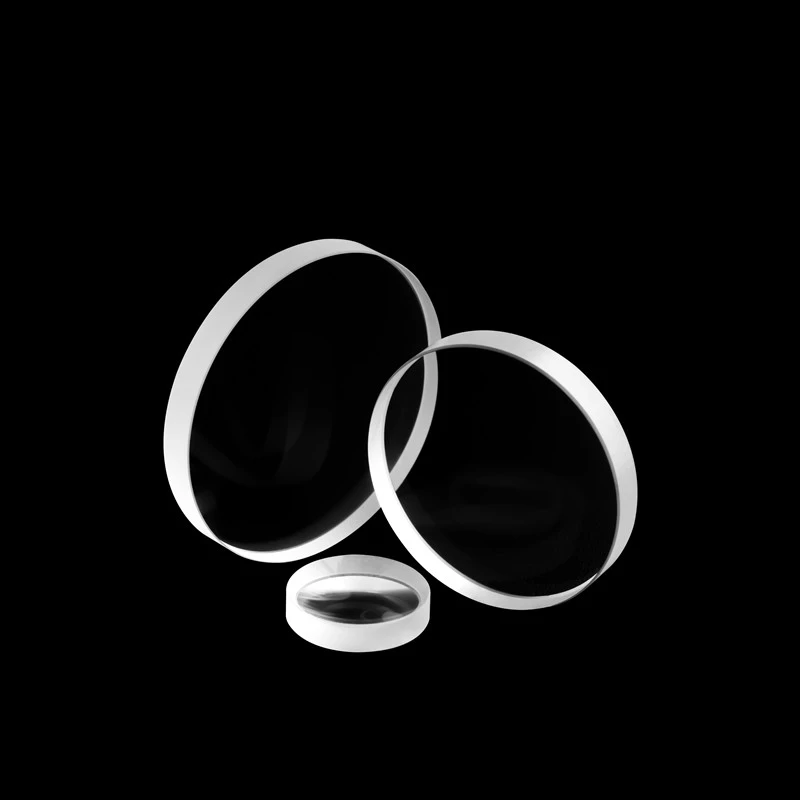

Manufacturer Supply Infrared Monocrystalline CaF2 Calcium Fluoride Plano Concave Lens for IR Light Sourse

Specifications

Lens Type: Plano-Concave
Material: CaF2
Diameter: custom
Thickness: custom
Dimension Tolerance: +0/-0.1mm
Surface Quality: 60-40,40-20,or better
Flatness: λ/4

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Negative Optical Power Design: Produces stable beam divergence to expand laser beams and shorten system effective focal length as required
  • Ultra-wide UV to IR Transmission: Maintains high transmittance across deep ultraviolet, visible and mid-infrared spectral working bands
  • Low Chromatic Dispersion: Effectively reduces chromatic aberration, ensuring consistent beam quality for broadband multi-wavelength optical systems
  • Low Intrinsic Fluorescence & Absorption: Generates no extra spectral background and reduces light energy loss for high-sensitivity optical testing
  • Excellent Structural & Thermal Stability: Maintains stable optical performance and surface shape under long-term light irradiation and temperature fluctuation
  • Superior Chemical Inertness: Resists moisture corrosion and chemical erosion, adapting to complex laboratory and industrial application environments

Applications

  • Laser Beam Divergence and Expansion: Core optical element for expanding laser beam diameter and adjusting laser beam divergence angle
  • Optical System Focal Length Matching: Used for shortening focal length and optimizing optical path structure in combined lens assemblies
  • UV and Infrared Spectroscopic Systems: Applied for beam diffusion and light path debugging in spectral detection and analytical instruments
  • Optical Correction and Aberration Compensation: Cooperates with convex lenses to eliminate system spherical aberration and optimize imaging quality
  • Scientific Research Optical Experiments: Suitable for laboratory beam shaping, optical parameter adjustment and special optical test platforms

Frequently Asked Questions

Why choose CaF₂ material instead of ordinary glass for plano-concave lenses?
CaF₂ offers wider deep UV to infrared transmission, lower dispersion and no fluorescence, avoiding spectral interference that ordinary glass produces during high-precision spectral and laser applications.
Does CaF₂ plano-concave lens need anti-reflection coating?
Uncoated lenses fit general broadband beam divergence use; customized AR coating can be added to reduce surface reflection and further improve light transmittance for specific single-wavelength laser equipment.
Can CaF₂ plano-concave lenses be used in high-sensitivity Raman and UV optical systems?
Yes, its ultra-low fluorescence and weak intrinsic spectral activity will not produce background noise, fully meeting the low-interference optical requirements of Raman and deep UV precision detection systems.

Got more questions? Use the inquiry form to ask the supplier directly.
