Description

Zinc Selenide (ZnSe) plano-concave lenses are professional infrared optical components featuring one flat surface and one concave curved surface. Manufactured from high-purity CVD-grown ZnSe material, this negative focal length lens possesses ultra-low infrared absorption and excellent mid-infrared transmittance. With stable internal uniformity and smooth polished surface, it is specially designed for infrared beam divergence, beam expansion and optical aberration compensation. It maintains reliable optical performance in long-term infrared laser operation, becoming an essential optical element for CO₂ laser equipment and mid-infrared optical systems.

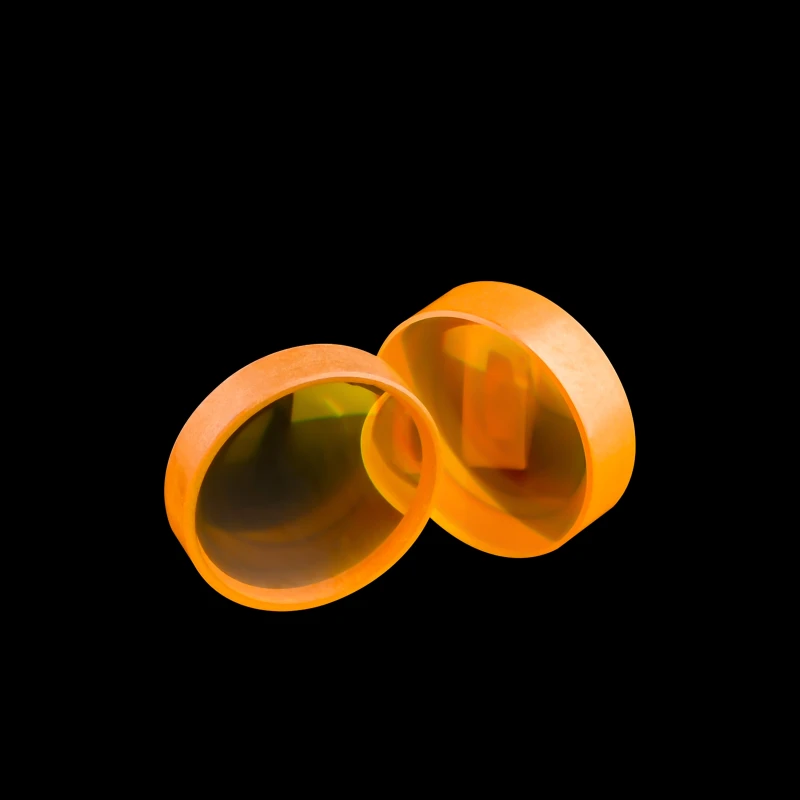

Custom High Transmission 8-12μm Zinc Selenide ZnSe Plano Concave Lens with Coating for Infrared FTIR Spectrometer

Specifications

Lens Type: Plano-Concave
Material: ZnSe
Size: custom
Dimension Tolerance: +0/-0.1mm
Surface Quality: 60-40,40-20,or better
Surface Flatness: 4/λ

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Superior Mid-infrared Transmittance: Low optical loss at 10.6μm, perfectly adapted for CO₂ laser working band
  • Ultra-low Bulk Absorption: Minimal heat accumulation to prevent thermal deformation under continuous laser irradiation
  • High Purity CVD Material: Few internal inclusions and defects to ensure uniform infrared beam transmission quality
  • Stable Thermal Optical Performance: Low thermal lensing effect to keep consistent optical parameters during long-time operation
  • Coating Compatibility: Supports customized infrared anti-reflection coating to reduce surface reflectivity

Applications

  • CO₂ Laser Beam Expansion: Used for expanding laser beam diameter in industrial laser marking and cutting equipment
  • Infrared Optical Assembly: Matches with convex lenses to eliminate system aberration and optimize infrared optical path
  • Mid-infrared Spectroscopy: Applied for beam diffusion and light path debugging in infrared gas detection instruments
  • Laser Calibration Systems: Suitable for infrared laser collimation adjustment and laser auxiliary focusing assembly
  • Infrared Scientific Research: Ideal for laboratory mid-infrared optical experiments and beam shaping platforms

Frequently Asked Questions

Why use ZnSe for infrared concave lens instead of other materials?
ZnSe has extremely low absorption at CO₂ laser wavelength, excellent internal uniformity and no thermal distortion, which is irreplaceable for low-loss infrared laser transmission.
Can ZnSe plano-concave lens work without coating?
It can be used uncoated for simple infrared optical paths; IR AR coating is strongly recommended for industrial CO₂ lasers to reduce reflection loss.
Is ZnSe plano-concave lens suitable for visible light system?
No. ZnSe has high absorption and yellow tint in visible range, exclusively designed for mid-infrared and CO₂ laser applications.

Got more questions? Use the inquiry form to ask the supplier directly.
