Description
BK7 Biconcave Lenses are precision negative focal length optical components with a symmetrical dual-concave structure—featuring two identical inward-curved spherical surfaces, which is the core structural characteristic that enables their light divergence function. Fabricated from high-quality N-BK7 borosilicate crown glass, these lenses boast key features including excellent optical homogeneity, low chromatic dispersion, high mechanical stability, low internal stress, and easy precision fabrication.Designed to diverge collimated light to a virtual focal point, they are widely applied in various fields: beam expansion systems (paired with plano-convex lenses in Galilean beam expanders), optical instrumentation (spectrometers, interferometers, OCR systems), imaging systems (cameras, microscopes, projectors), laser systems (laser marking, cutting, medical lasers), and scientific research laboratory setups, serving as essential components for beam modulation, aberration correction, and focal length adjustment in multi-element optical assemblies.

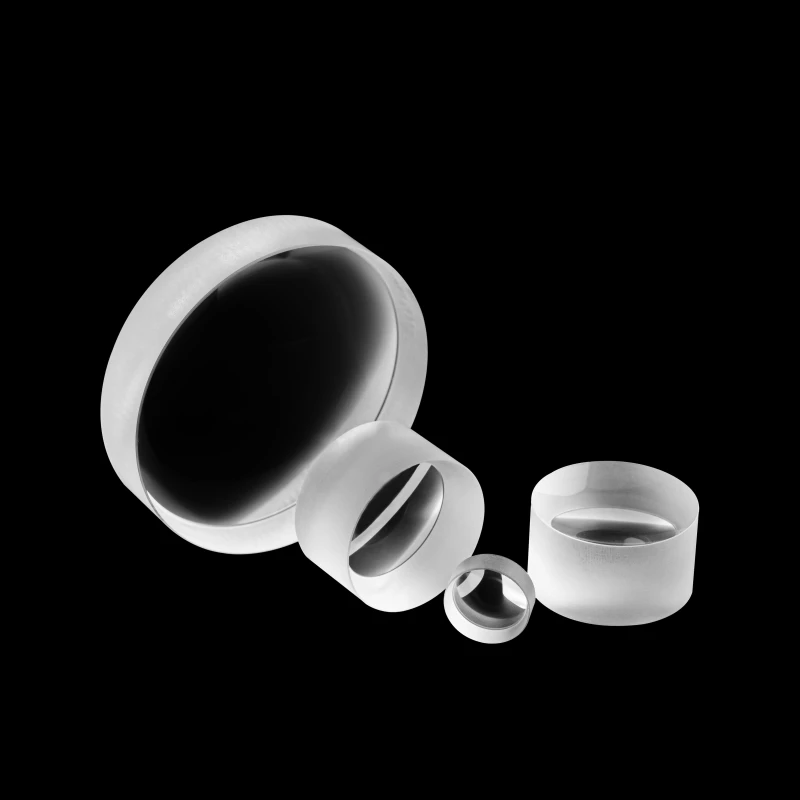

Factory Custom Optical Glass BK7 Double Concave Lens for Imaging System
Specifications
| Material: | BK7 |
|---|---|
| Diameter: | 15 mm |
| Focal Length: | -30 mm |
| Edge Thickness, Te: | 4 mm |
| Lens Type: | Bi-Concave |
| Dimension Tolerance: | +0/-0.1mm |
| Surface Quality: | 60-40,40-20,or better |
| Flatness: | 1/4λ |
Features
- Optimal Visible-NIR Transmission: Spectral transmission range of 350–2200 nm
- High-Quality BK7 Substrate: Fabricated from N-BK7 borosilicate crown glass with excellent optical homogeneity, low bubble and inclusion content, low internal stress, and high chemical stability
- Low Chromatic Dispersion: Abbe number Vd = 64.17,minimizing chromatic aberration and ensuring consistent performance across the visible spectrum, ideal for imaging and beam control systems
- Robust Mechanical Performance: High hardness (Knoop hardness ~520), good scratch resistance, and low thermal expansion coefficient (7.1×10⁻⁶/°C), ensuring stable performance in varying environmental temperatures
- Cost-Effective & Easy to Fabricate: Lower cost compared to crystalline optical materials (e.g., BaF₂, ZnSe), with easy precision machining and polishing, suitable for high-volume production
Applications
- Beam Expansion & Divergence: Core component in Galilean laser beam expanders, used to diverge collimated laser beams for applications such as laser marking, cutting, and LiDAR systems
- Optical Instrumentation: Integrated into spectrometers, interferometers, optical character recognition (OCR) systems, and observation equipment for light dispersion, beam shaping, and aberration correction
- Imaging & Vision Systems: Used in camera lenses, microscopes, projectors, and machine vision systems to correct spherical aberration, adjust focal lengths, and optimize image quality in multi-element assemblies
- Laser Systems: Incorporated into low-to-medium power visible-NIR laser systems (e.g., 633nm, 1064nm) for beam delivery, alignment, and divergence control; suitable for medical lasers, laser pointers, and laser measurement equipment
- Scientific Research & Laboratory Setups: Applied in photonics research, experimental optics, and educational laboratories for controlled beam manipulation, virtual image formation, and optical path adjustment
- Industrial Optics: Used in optical sensors, detectors, and industrial inspection equipment for light divergence, alignment, and optical path correction in manufacturing and quality control processes
- Consumer Optics: Integrated into binoculars, telescopes, and optical toys, leveraging cost-effectiveness and reliable performance for general optical functions
