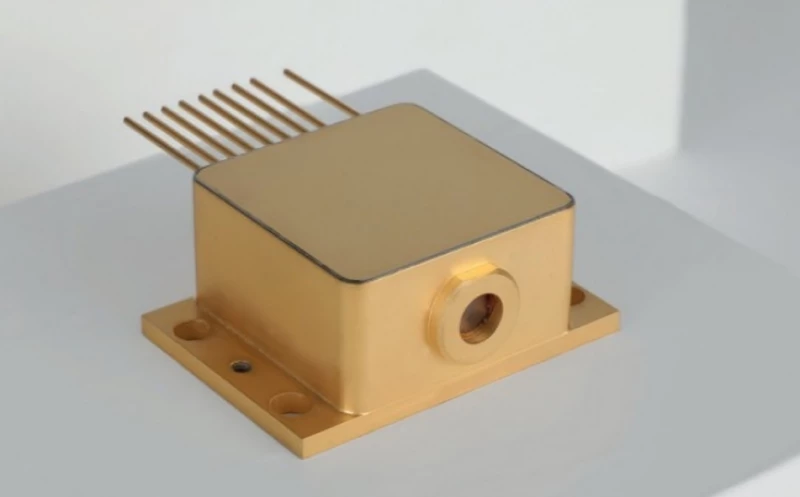

Thumbnail of PW4000090HCNA: PowerMir 4.0um High Power Pulsed Quantum Cascade Laser 100mW HHL Package Circular Beam photo 1

Description

The PowerMir 4.0 μm High-Power Pulsed Quantum Cascade Laser is an advanced mid-infrared laser solution engineered for demanding applications. Encased in a robust High Heat Load (HHL) package, this quantum cascade laser (QCL) boasts built-in thermoelectric cooling and collimated optics to ensure precise and stable performance even in harsh environments. With a hermetically sealed design and nitrogen gas fill, it offers exceptional reliability and longevity.

The integrated thermoelectric cooler (TEC) allows for efficient temperature control, while the built-in collimated lens enhances beam quality for accurate targeting and measurement. Operating at peak currents ranging from 1 to 4 Amps, and with a wall-plug efficiency of 5 to 10%, this laser delivers consistent and powerful performance. Whether used for gas sensing, environmental monitoring, or industrial processes, the PowerMir 4.0μm QCL offers unmatched versatility and reliability in mid-infrared laser technology.

PW4000090HCNA: PowerMir 4.0um High Power Pulsed Quantum Cascade Laser 100mW HHL Package Circular Beam

Visit the RPMC Lasers, Inc. Store

Specifications

Output Power (avg): 0.1 W
Wavelength: 4 um
Pulse Duration: 1 – 1 ns
Tuning Range Around Center Wavelength: Not Applicable
Packaging: Hermetically sealed HHL package with nitrogen gas fill
Thermoelectric Cooler (TEC): Imax = 5.2A, Vmax = 17.5V
Collimated Lens: Built-in
Wall-plug Efficiency: 5 to 10 %
Temperature Sensor: Built-in thermistor
Laser Peak Current: Typically 1 - 4 A
Operational Temperature Range: -20 to +30 °C
Laser Voltage: 10-20 V
Weight: 120 g

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-power 4 µm mid-infrared quantum cascade laser system designed for demanding MIR applications including gas sensing, infrared spectroscopy, industrial monitoring, defense sensing, and scientific research.
  • Central wavelength: 4 µm ± 0.1 µm, with maximum average optical power specified across the 3.85 µm to 4.15 µm spectral band.
  • Quasi-CW QCW operation with high-duty-cycle pulsed performance for improved wall-plug efficiency and reduced thermal dissipation compared with conventional high-heat pulsed laser operation.
  • High average optical power options available in configurations of >1 W, <500 mW, or <100 mW, supporting both high-performance laboratory use and export-sensitive OEM integration needs.
  • Pulse frequency greater than 500 kHz enables fast modulation, high-speed measurement, and efficient pulsed MIR laser operation.
  • ITAR-free MIR laser technology proudly manufactured in France, simplifying international procurement and system integration for many commercial and research users.
  • Fabry-Perot quantum cascade laser architecture based on proprietary high-performance QCL technology for robust mid-infrared emission around 4 microns.
  • Multiple system configurations available, including plug-and-play benchtop turnkey systems, OEM driver plus laser modules, and compact HHL-packaged QCL lasers.
  • Excellent beam quality with a TM00 Gaussian far-field beam profile, supporting efficient coupling into optical systems and MIR instrumentation.
  • Standard beam divergence of <6 mrad horizontal and <4 mrad vertical full angle in the far field, with a slightly elliptical beam shape.
  • Optional circular beam output helps reduce the need for external beam-shaping optics and simplifies integration into spectroscopy, sensing, and optical alignment setups.
  • Typical standard beam size at window output: approximately 3 mm vertical × 2 mm horizontal.
  • Typical circular beam size at window output: <3 mm, offering a more symmetric beam profile for easier optical system design.
  • Vertically linear polarized output with polarization purity >98%, ideal for polarization-sensitive MIR optical setups.
  • Reliable high-power MIR laser source with reported reliability of >3500 hours, supporting long-term operation in laboratory and industrial environments.
  • Reproducible manufacturing specifications make the laser platform suitable for series production, OEM deployment, and repeatable system builds.
  • Efficient thermal performance from QCW operation reduces cooling burden and supports stable operation when the HHL package base plate is regulated, typically at +20°C.
  • Optimized for OEM and turnkey integration, allowing users to choose between complete ready-to-use laser systems or component-level QCL modules for embedded MIR applications.
  • Robust chip-level circular beam option provides improved beam circularity directly from the laser design, offering a more durable and compact alternative to external optical correction components.
  • Ideal 4 µm QCL source for mid-infrared absorption spectroscopy, trace gas detection, chemical analysis, environmental monitoring, process control, and advanced photonics research.

Applications

  • Mid-infrared gas sensing and trace gas analysis: High-power 4 µm QCW QCL source for absorption-based detection of gases with spectral features in the 3.85 µm to 4.15 µm region, supporting industrial, laboratory, and environmental monitoring applications.
  • Photoacoustic spectroscopy: Ideal MIR laser source for photoacoustic gas detection systems requiring high peak power, high duty-cycle pulsed operation, and improved wall-plug efficiency.
  • Quartz-enhanced photoacoustic spectroscopy: Suitable for QEPAS and other compact trace gas sensing platforms where stable mid-IR emission, high optical power, and narrow wavelength targeting improve detection sensitivity.
  • Industrial process monitoring: Enables real-time monitoring of chemical processes, exhaust streams, reactor gases, and production environments in petrochemical, semiconductor, pharmaceutical, and advanced manufacturing facilities.
  • Environmental emissions monitoring: Used in mid-IR sensing instruments for greenhouse gas studies, air quality monitoring, stack emissions analysis, combustion diagnostics, and atmospheric research.
  • Leak detection systems: High-power 4 µm quantum cascade laser technology supports remote and in-line leak detection for industrial gases, fuel systems, chemical plants, pipelines, and safety-critical infrastructure.
  • Standoff chemical detection: Applicable to long-range detection of hazardous chemicals, vapors, and industrial compounds using active mid-infrared illumination and spectroscopy techniques.
  • Defense and security sensing: ITAR-free MIR QCL systems are suitable for security screening, perimeter monitoring, chemical threat detection, and deployment in defense-adjacent applications where export-friendly technology is required.
  • MWIR LiDAR and active illumination: The high average power and QCW pulsed operation make the laser suitable for mid-wave infrared LiDAR, active imaging, range-resolved sensing, and target illumination.
  • Infrared countermeasure and sensor evaluation: Can be used in controlled test environments for MWIR detector characterization, seeker testing, infrared signature simulation, and electro-optical system validation.
  • MWIR camera testing and calibration: Provides a high-power 4 µm source for evaluating mid-wave infrared cameras, focal plane arrays, thermal imaging sensors, and optical assemblies.
  • Hyperspectral imaging: Suitable illumination source for active MIR hyperspectral imaging systems used in materials identification, chemical mapping, remote sensing, and laboratory analysis.
  • Free-space optical communication: The 4 µm spectral region is relevant for mid-infrared free-space optical links, especially where atmospheric transmission, eye safety considerations, and reduced background noise are important.
  • Combustion diagnostics: Useful for analyzing combustion byproducts, flame chemistry, exhaust composition, and high-temperature gas environments in engines, turbines, burners, and propulsion research.
  • Aerospace testing and atmospheric research: Supports airborne, ground-based, and laboratory instruments for mid-infrared spectroscopy, atmospheric composition measurement, and optical propagation studies.
  • Biomedical and breath analysis research: Can be integrated into MIR sensing platforms for non-invasive breath analysis and detection of selected biomarkers or respiratory gases with absorption features near the 4 µm wavelength range.
  • Chemical identification and molecular spectroscopy: Fabry-Perot QCL emission around 4 µm is useful for mid-infrared molecular spectroscopy, fingerprint-region analysis, and laboratory studies of gases and vapors.
  • Nonlinear optics and MIR photonics research: High-power pulsed operation makes the laser suitable for nonlinear mid-IR experiments, frequency conversion studies, MIR waveguide testing, and photonic component characterization.
  • Materials analysis and inspection: Enables active mid-infrared inspection of coatings, polymers, thin films, composites, and specialty materials that exhibit absorption or thermal response in the MWIR spectral region.
  • OEM integration into MIR instruments: Available as turnkey system, OEM driver with laser module, or HHL-packaged laser, making it suitable for integration into compact analytical instruments, field-deployable sensors, and production-ready spectroscopy platforms.
  • Export-friendly high-power MIR laser systems: ITAR-free manufacturing supports global deployment in research, industrial, environmental, aerospac

Frequently Asked Questions

What is the mirSense PowerMir 4 µm QCW QCL laser?
The PowerMir 4 µm QCW QCL is a high-power mid-infrared quantum cascade laser system emitting around 4 µm, with a central wavelength of 4 µm ± 0.1 µm. It is a pulsed Fabry-Perot QCL designed for quasi-CW high-duty-cycle operation, offering high average power, improved wall-plug efficiency, and reduced thermal dissipation.
What output power is available from the 4 µm QCW quantum cascade laser?
The laser is available in multiple average power classes, including versions above 1 W, below 500 mW, and below 100 mW. The specified power is the total average optical power across the 3.85 µm to 4.15 µm spectral band. The
Is the 4 µm PowerMir QCL ITAR-free?
Yes. The mirSense PowerMir 4 µm QCW QCL is manufactured in France and is described as ITAR-free. This can simplify procurement and international integration compared with some high-power mid-IR laser sources subject to stricter export controls.
What does QCW operation mean for this mid-infrared QCL?
QCW, or quasi-continuous-wave operation, means the laser operates in high-duty-cycle pulsed mode rather than true continuous wave. For this 4 µm QCL, QCW operation supports pulse frequencies above 500 kHz while improving wall-plug efficiency and reducing thermal load compared with lower-efficiency high-power operation.
What beam quality, divergence, and polarization does the 4 µm QCW QCL provide?
The laser provides a TM00 Gaussian far-field beam with linear vertical polarization greater than 98%. With the standard beam option, the full-angle far-field divergence is less than 6 mrad horizontally and less than 4 mrad vertically, with a slightly elliptical beam profile. Typical window-output beam size is about 3 mm vertical by 2 mm horizontal.
Is a circular beam option available for the 4 µm QCL laser?
Yes. A circular beam option is available with a typical output beam diameter below 3 mm. Instead of relying only on external beam-shaping optics, the circular beam option uses a specially manufactured laser chip designed to emit a more circular beam, which can simplify optical integration.
What system configurations are available for the PowerMir 4 µm QCW QCL?
The 4 µm PowerMir QCL can be supplied as a plug-and-play benchtop turnkey system, an OEM laser-and-driver module, or as an HHL-packaged laser. This allows users to choose between fast laboratory deployment, embedded system integration, or custom driver and thermal-management implementation.

Got more questions? Use the inquiry form to ask the supplier directly.
