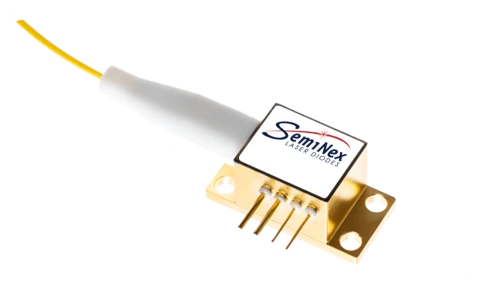

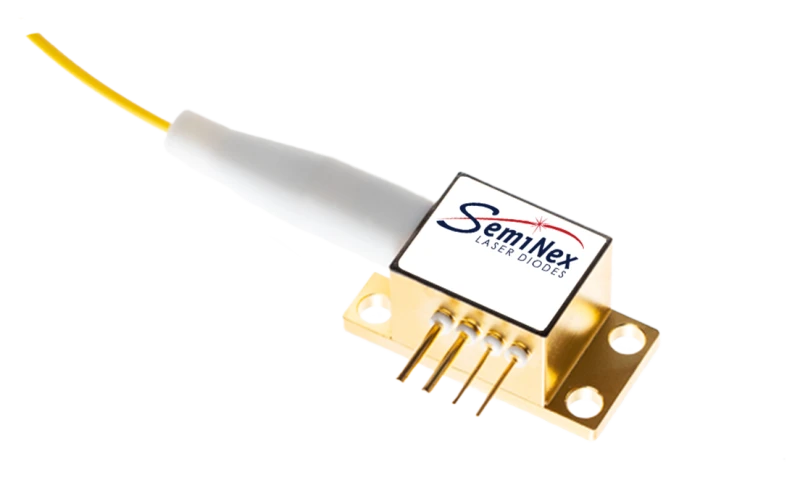

SemiNex SMX1550 Laser Diode 4PN-108
Description
The SemiNex SMX1550 Laser Diode offers cutting-edge performance in the infrared spectrum, providing exceptional power and efficiency. Engineered with precision, this 4-pin fiber-coupled laser module is meticulously designed to meet the diverse demands of various industries. Whether it's for OEM medical devices, DPSS pump sources, LiDAR systems, free space communications, or military/aerospace applications, the SMX1550 stands out for its versatility and reliability. Its customizable wavelength options and robust construction make it an ideal choice for both research and industrial settings.
With a standard low-cost package and optimized design for volume applications, the SMX1550 ensures consistent and precise laser output, driving efficiency and productivity. Whether you're exploring cutting-edge medical technologies or pushing the boundaries of aerospace engineering, the SemiNex SMX1550 Laser Diode is your trusted partner for delivering superior performance and reliability in every application.
SemiNex SMX1550 Laser Diode 4PN-108
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW), Modulated |
| Fiber Type: | Multi-Mode |
| Wavelength: | 1550 nm |
| Output Power: | 3300 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | -- um |
| Spectral Width (δλ): | 10 nm 3dB |
| Slope Efficiency (η°): | 0.3 W/A |
| Power Conversion Eff. (η): | 16 % |
| Threshold Current (Ith): | 0.5 A |
| Operating Current: | 12 A |
| Operating Voltage: | 1.7 V |
| Lead Soldering Temp.: | 250 °C |
| Weight: | 25 g |
| Operating Temp.: | -40 to +60 °C |
| Storage Temp.: | -40 to +80 °C |
| Fiber Length: | 1.5 m |
| Connector: | SMA905 |
Features
- Cost-effective and efficient design
- High output power and efficiency
- Customizable wavelength options
- Standard low-cost package
- Designed for volume applications
- Robust and reliable construction
Applications
- OEM Medical Equipment
- DPSS Pump Sources
- LiDAR Systems
- Free Space Communications
- Military/Aerospace Technologies
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The SMX1550 Laser Diode operates within the wavelength range of 1530 nm to 1570 nm, with a precision of ±20 nm.
The output power of the SMX1550 Laser Diode is 3.30 watts (±10%) when operating continuously (CW).
This laser diode is commonly used in various applications, including OEM medical equipment, DPSS pump sources, LiDAR systems, free space communications, and military/aerospace technologies.
The electrical power conversion efficiency of the SMX1550 Laser Diode is rated at 16.00%.
The SMX1550 Laser Diode can operate within a temperature range of -40°C to 60°C, with storage temperatures ranging from -40°C to 80°C.
No, the 4-pin laser package is not electrically isolated. The package body serves as the anode connection. Care should be taken during mounting and installation to avoid electrical issues.
The typical spectral width of the SMX1550 Laser Diode is 10 nm at the 3dB point.
