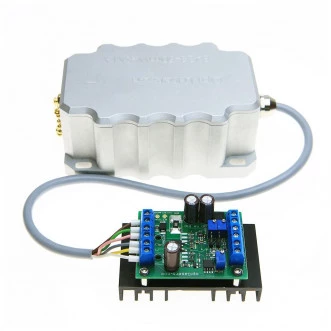

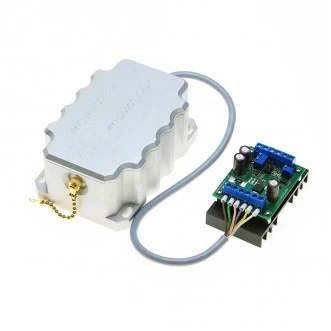

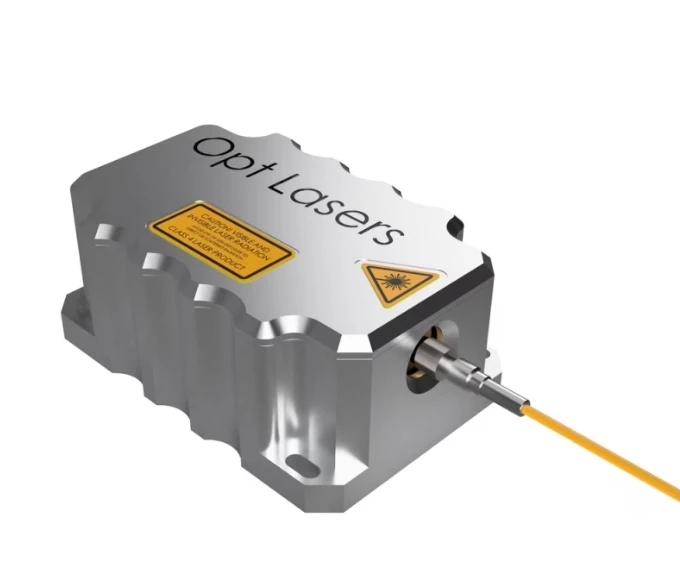

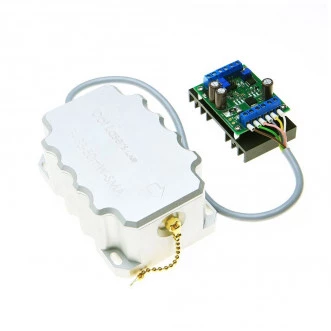

SW-G520-800-SMA 520nm 0.8W Fiber Coupled Laser Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Poland
-
Sold by:
-
On FindLight:
since 2021
Description
Introducing the SW-G520-800-SMA Fiber Coupled Laser Module, a part of the renowned SW-Series Laser Modules. This series is designed to deliver high-performance laser solutions with a single wavelength fiber coupled into a multimode fiber. The SW-Series is known for its use of high-power visible laser diodes, ensuring robust and reliable performance across various applications. Available in wavelengths of 405nm, 450nm, 520nm, and 638nm, these modules cater to a wide range of power levels, making them versatile for different needs.
The SW-G520-800-SMA model specifically offers a wavelength of 520nm and an output power of 0.8W, making it ideal for precision tasks that require a stable and powerful light source. The module features a fiber core of 100um and a numerical aperture (NA) ranging from 0.15 to 0.22, ensuring efficient light transmission and minimal loss. With a fiber length exceeding 1 meter and a high-power SMA-905 fiber type, this module is engineered for optimal performance and durability.
Designed with a compact and robust structure, the SW-G520-800-SMA module incorporates active cooling and thermal protection, ensuring long-lasting operation even under demanding conditions. Its detachable fiber and metal jacket provide added convenience and protection, making it a reliable choice for professionals seeking high-quality laser solutions. Whether for lightening, illumination, or specialized applications, this fiber coupled laser module stands out as a top-tier choice in the industry.
SW-G520-800-SMA 520nm 0.8W Fiber Coupled Laser Module
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 405 nm |
| Wavelength: | 520nm |
| Output Power: | 0.8W |
| Fiber Core: | 100um |
| Fiber NA: | 0.15 - 0.22 |
| Fiber Length: | >1m |
| Fiber Type: | High-Power SMA-905 |
| Supply Voltage: | 7.5VDC |
| Typ. Power Consumption: | 55W |
| Mod. Bandwidth: | 30 kHz |
| Modulation Type: | Analog/TTL 0 - 5V |
| Cooling: | Active / TEC (requires heatsink) |
Features
- High-Power Output: Delivers an impressive 0.8W of power at a wavelength of 520nm, ideal for demanding applications.
- Compact Design: Engineered for space efficiency, making it suitable for integration into various systems.
- Detachable Fiber: Features a detachable high-power SMA-905 fiber with a metal jacket for enhanced durability and flexibility.
- Active Cooling: Equipped with active cooling and TEC (Thermoelectric Cooling) for optimal performance and longevity.
- Long Lifetime: Designed for extended use, ensuring reliability and consistent performance over time.
- Thermal Protection: Built-in thermal protection safeguards the module from overheating, enhancing safety and durability.
- Versatile Applications: Perfect for lightening and illumination, phosphor illumination, medical and therapeutic uses, and forensic applications.
- Modulation Capabilities: Supports analog/TTL modulation with a bandwidth of 30 kHz, offering flexibility in various applications.
- Efficient Power Consumption: Operates at a typical power consumption of 55W with a supply voltage of 7.5VDC.
Applications
- Lighting & Illumination: Bright and uniform green light for optical systems.
- Phosphor Excitation: Ideal for phosphor-based applications and displays.
- Medical & Therapeutic Use: Supports precision therapeutic and diagnostic procedures.
- Forensic Analysis: Reliable source for lab and investigative optical applications.
Frequently Asked Questions
The SW-Series Fiber Coupled Laser Module is used for lightening and illumination, phosphor illumination, medical and therapeutics, and forensic applications.
The SW-Series Laser Modules are available in 405nm, 450nm, 520nm, and 638nm wavelengths.
The SW-Series Laser Modules are available at various power levels.
The key features of the SW-Series Fiber Coupled Laser Module include high power, compact design, detachable fiber, active cooling, long lifetime, high-power SMA fiber with metal jacket, and thermal protection.
Yes, the SW-Series Fiber Coupled Laser Module is designed to be coupled into a multimode fiber.
