Description
The 7W 976nm 105μm Fiber Coupled Power Diode Laser (GK-WS976007105) offers high-performance and reliability for various industrial and scientific applications. This diode laser provides a robust 7 watts of output power at a central wavelength of 976 nm, ensuring consistent and precise laser performance. With a fiber coupling diameter of 105μm and a numerical aperture of 0.22, it achieves effective light delivery and high coupling efficiency.
This diode laser features a spectral width (FWHM) of 2.0 nm, allowing for narrow-band applications. The laser's compact design and efficient heat dissipation make it suitable for integration into diverse systems requiring high-power laser sources. Additionally, it maintains a stable wavelength with a typical variation of ±0.5 nm, ensuring reliable operation over extended periods.
This fiber-coupled laser is designed with a wavelength stabilization feature and offers conversion efficiency of up to 10.0%. The operating parameters include a current range of 1.2 A to 2.0 A and an operating voltage of 10.0 V, making it adaptable to various power and voltage requirements.

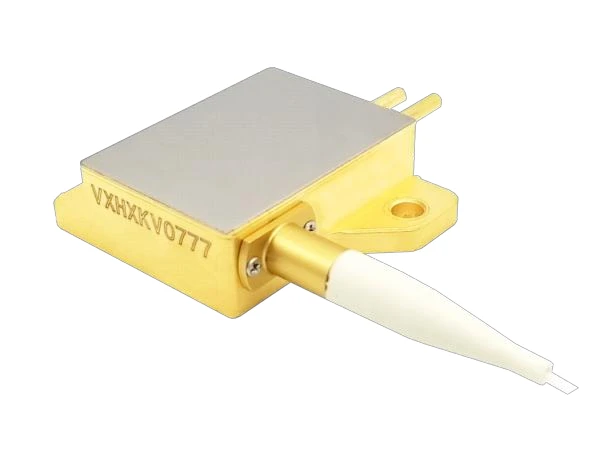

7W 976nm 105μm Fiber Coupled Diode Laser
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 7000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | Not Specified |
| Output Power: | 7 W |
| Center Wavelength: | 976 nm |
| Spectral Width(FWHM): | Typ:0.5 Max:1.0 nm |
| 95% Power NA: | 0.12 - |
| Core Diameter: | Min:102 Typ:105 Max:108 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | 1.2 m |
| Operating Current: | 10.0 A |
| Operating Voltage: | 2.0 V |
| Conversion Efficiency: | 45 % |
| Wavelength Stabilized Current Range: | Min:5.0 Max:10.0 A |
Download Data Sheet
Features
- High Output Power: Delivers up to 7 watts of output power for demanding applications
- Central Wavelength: Operates at a precise wavelength of 976 nm
- Fiber Coupling Diameter: Equipped with a 105μm fiber coupling for efficient light transfer
- Spectral Width (FWHM): Narrow spectral width of 2.0 nm for targeted applications
- Numerical Aperture: Features a numerical aperture of 0.22 for optimal beam focusing
- Wavelength Stability: Maintains wavelength stability with a typical variation of ±0.5 nm
- Conversion Efficiency: High conversion efficiency of up to 10.0%
- Compact Design: Suitable for integration into various systems with effective heat dissipation
Applications
- Industrial Processing: Ideal for high-power laser applications in materials processing and cutting
- Scientific Research: Useful in scientific experiments requiring precise and stable laser sources
- Medical Devices: Suitable for use in medical laser equipment where high power and accuracy are essential
- Telecommunications: Applicable in optical communication systems needing robust and stable laser sources
Frequently Asked Questions
What is the maximum output power of this diode laser?
What is the central wavelength of this fiber-coupled diode laser?
What is the spectral width of this diode laser?
What is the diameter of the fiber coupling?
What is the numerical aperture of the fiber?
How stable is the wavelength of the laser?
What is the conversion efficiency of the laser?
What is the operating current range?
What is the operating voltage of the laser?
Is the wavelength stabilized?
