Description
The GKER Photonics 60W 976nm 105μm Fiber Coupled Diode Laser (GK-WS976060105) is a high-performance, wavelength-stabilized laser designed for precision applications in industries such as medical, scientific research, and industrial material processing. With a maximum output power of 60W, this laser delivers reliable performance with minimal spectral width for enhanced accuracy. The 105μm fiber core provides efficient power delivery, making it ideal for high-precision tasks.
This laser is equipped with a 976nm center wavelength and a numerical aperture (NA) of 0.22, ensuring excellent beam quality. It features a 2-meter fiber pigtail for easy integration into systems requiring flexible setups. Its robust design allows for stable operation with a typical operating voltage of 45V and conversion efficiency of up to 13.5%, making it energy efficient.
The GKER Photonics diode laser is ideal for demanding applications requiring high stability, power, and precision. Its wavelength stabilization ensures consistent performance, making it a preferred choice for laser pumping, medical treatments, and industrial processing.

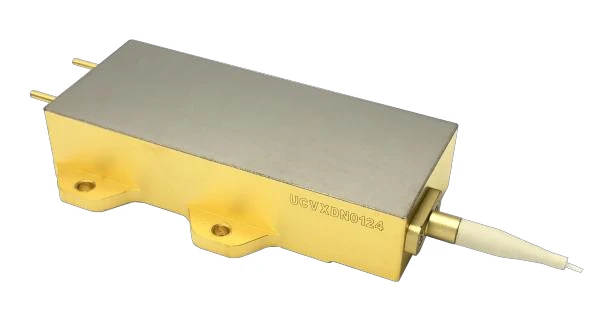

60W 976nm 105μm Fiber Coupled Power Diode Laser
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 60000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | Not Specified |
| Output Power: | 60 W |
| Center Wavelength: | 976 nm |
| Spectral Width(FWHM): | Typ:0.5 Max:1.0 nm |
| 95% Power NA: | 0.16 - |
| Core Diameter: | Min:102 Typ:105 Max:108 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | 1.2 m |
| Operating Current: | 10.0 A |
| Operating Voltage: | 13.5 V |
| Conversion Efficiency: | 45 % |
| Wavelength Stabilized Current Range: | Min:5.0 Max:10.0 A |
Download Data Sheet
Features
- 60W Maximum Output Power: Provides high-power output for industrial and medical applications
- 976nm Center Wavelength: Wavelength-stabilized for consistent, high-precision performance
- 105μm Fiber Core Diameter: Ensures efficient power delivery and enhanced focus ability
- 0.22 Numerical Aperture (NA): Offers excellent beam quality and focusing capabilities
- 1.0nm Spectral Width: Minimal spectral width for precise wavelength control.
- 2-Meter Pigtail Length: Allows for flexible system integration
- High Conversion Efficiency: Achieves up to 13.5% efficiency for energy-saving performance
- Typical Operating Voltage of 45V: Stable voltage for reliable operation
Applications
- Laser Pumping: Ideal for optical pumping in solid-state lasers
- Medical Procedures: Suitable for precision surgical and therapeutic laser applications
- Industrial Material Processing: Used for applications like cutting and welding with high precision
Frequently Asked Questions
What is the maximum output power of the laser?
What is the center wavelength of the laser?
What is the core diameter of the fiber?
What is the numerical aperture (NA) of the fiber?
What is the typical spectral width of the laser?
How long is the pigtail fiber?
What is the typical operating voltage?
What is the conversion efficiency of the laser?
Is the laser suitable for medical applications?
What are the typical industrial uses for this laser?
