Description

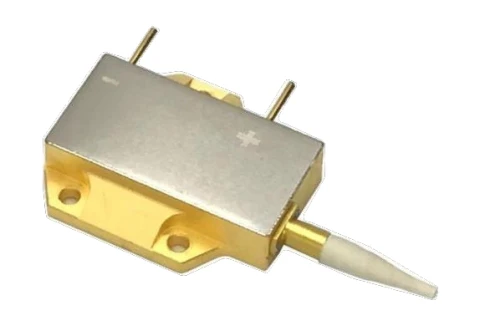

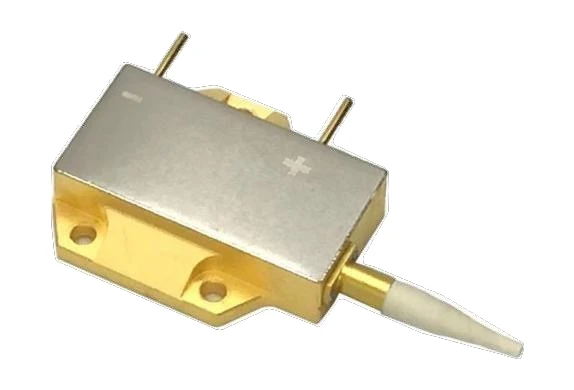

The GKER Photonics 30W 915nm 105μm Fiber Coupled Power Diode Laser (GK-915V30105) delivers high power output and exceptional beam quality, making it ideal for applications in industrial, medical, and research settings. This diode laser provides a maximum output power of 30 watts and operates at a center wavelength of 915nm, ensuring precision and reliability in demanding environments.
The laser features a 105μm fiber core diameter with a numerical aperture of 0.22, enabling efficient light transmission and minimal signal loss. With a 95% Power Numerical Aperture (NA) of 0.20, it guarantees superior beam focus, making it suitable for material processing, optical communications, and various medical procedures.
This diode laser is designed with a typical operating voltage of 1.0V and a maximum operating current of 18.5A, providing high energy efficiency and long-term performance stability. The pigtail length of 1.2 meters offers convenient integration into existing optical systems, and the typical conversion efficiency of 18.5% ensures optimal power management. Built to withstand challenging environments, the GK-915V30105 is a powerful and versatile solution for high-precision applications requiring consistent and efficient performance.
30W 915nm 105μm Fiber Coupled Power Diode Laser
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 915 nm |
| Output Power: | 30000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | Not Specified |
| Output Power: | 30 W |
| Center Wavelength: | 900 nm |
| 95% Power NA: | 0.16 - |
| Core Diameter: | Min:102 Typ:105 Max:108 μm |
| Numerical Aperture: | Min:0.2 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.0 Typ:1.2 - |
| Operating Current: | 18.5 A |
| Operating Voltage: | 4.0 V |
| Conversion Efficiency: | 48 % |
Download Data Sheet
Features
- High Output Power: Delivers up to 30W of optical power for high-performance applications
- Center Wavelength of 915nm: Ideal for industrial and medical uses requiring specific wavelength accuracy
- Fiber Core Diameter: Features a 105μm core for efficient light transmission and minimized loss
- Numerical Aperture: 0.22 NA provides focused beam quality
- High Conversion Efficiency: Typical efficiency of 18.5% for optimal energy use
- Compact Design: Pigtail length of 1.2m allows for easy system integration
Applications
- Optical Communications: Ensures reliable and efficient wavelength transmission in communication networks
- Material Processing: Provides precise power control for cutting, welding, and engraving applications
- Medical Treatments: Suitable for laser-based therapeutic and diagnostic procedures
Frequently Asked Questions
What is the maximum output power of this diode laser?
What is the center wavelength of this laser?
What is the fiber core diameter of this product?
What is the numerical aperture of the fiber?
How long is the pigtail on this laser?
What is the typical operating voltage?
What is the typical operating current?
What is the conversion efficiency of this laser?
What applications is this diode laser suited for?
What is the 95% power NA value?
