Description
The 30W 878.6nm 200μm Fiber Coupled Power Diode Laser (GK-WS878030200S) is a high-performance diode laser designed for precision applications across various industries, including scientific research, industrial processing, and medical technologies. With a maximum output power of 30W and a stabilized wavelength of 878.6nm, this diode laser provides consistent and reliable performance in demanding environments.
The laser is engineered with a spectral width of 1nm (FWHM) to ensure minimal signal distortion, and the 200μm fiber core delivers precise power transmission with a numerical aperture (NA) of 0.22. Its highly efficient design allows for optimal power conversion, reaching up to 48% efficiency, while maintaining stability with an operating voltage of 7.5V and a current range of 5-10A.
This fiber-coupled diode laser is ideal for applications such as pumping solid-state lasers, material processing, and medical procedures, where accuracy and efficiency are critical. The device is equipped with a robust SC/SMA905 connector for secure and easy integration into existing systems, and the 2-meter pigtail length ensures flexibility during installation.

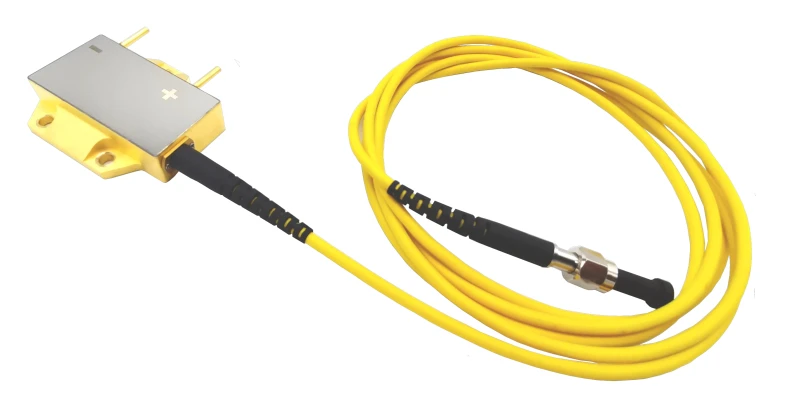

30W 878.6nm 200μm Fiber Coupled Power Diode Laser
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 878.6 nm |
| Output Power: | 30000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | Not Specified |
| Output Power: | 30 W |
| Center Wavelength: | 878.6 nm |
| Spectral Width(FWHM): | Typ:0.5 Max:1.0 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | 2.0 m |
| Connector: | SC/SMA905 - |
| Operating Current: | 10.0 A |
| Operating Voltage: | 7.5 V |
| Conversion Efficiency: | 48 % |
| Wavelength Stabilized Current Range: | Min:5.0 Max:10.0 A |
Download Data Sheet
Features
- High Output Power: Delivers up to 30W of optical power for high-performance applications
- 878.6nm Wavelength Stabilized: Offers precision and reliability with a narrow spectral width of 1nm
- 200μm Fiber Core: Provides accurate power delivery with a high numerical aperture of 0.22
- Efficient Power Conversion: Achieves up to 48% conversion efficiency, optimizing energy use
- Wide Current Range: Operates within a range of 5A to 10A for flexible power management
- SC/SMA905 Connector: Ensures secure fiber connection for easy system integration
- Compact and Durable: Built for industrial and medical environments requiring durability and consistent output
Applications
- Pumping Solid-State Lasers: Ideal for high-power laser pumping in industrial and scientific settings
- Material Processing: Suitable for precision tasks such as cutting, welding, and surface treatment
- Medical Applications: Enables high-precision laser therapies in medical procedures
- Scientific Research: Useful in various research applications requiring stable and reliable laser performance
Frequently Asked Questions
What is the maximum optical output power of this diode laser?
What is the center wavelength of this fiber-coupled diodelaser?
What is the numerical aperture of the fiber?
How long is the fiber pigtail?
What type of connector does the laser use?
What is the spectral width (FWHM) of this laser?
What is the operating current range?
What is the power conversion efficiency?
What are typical applications of this laser?
What is the core diameter of the fiber?
