Description
The GKER Photonics 15W 915nm Fiber Coupled Power Diode Laser (GK-915V15105) is a high-performance solution designed for precision applications that require consistent power output and reliable wavelength stability. With a maximum output power of 15W and a center wavelength of 915nm, this laser is ideal for industrial, medical, and research purposes.
The fiber-coupled design, featuring a 105μm core diameter and a numerical aperture (NA) of 0.22, ensures efficient light delivery with minimal loss. Its typical operating current of 1.9A and operating voltage of 1.0V make it energy-efficient, while the pigtail length of 1.2 meters allows easy integration into various systems.
This diode laser offers excellent conversion efficiency, ensuring that the input power is effectively converted to optical output. It also operates with a 95% power numerical aperture of 0.20, ensuring focused beam output for precision tasks. Designed with reliability in mind, the GK-915V15105 is suitable for applications in optical communications, material processing, and more. With high environmental stability and efficient power handling, this product is a versatile and dependable tool for various advanced applications.

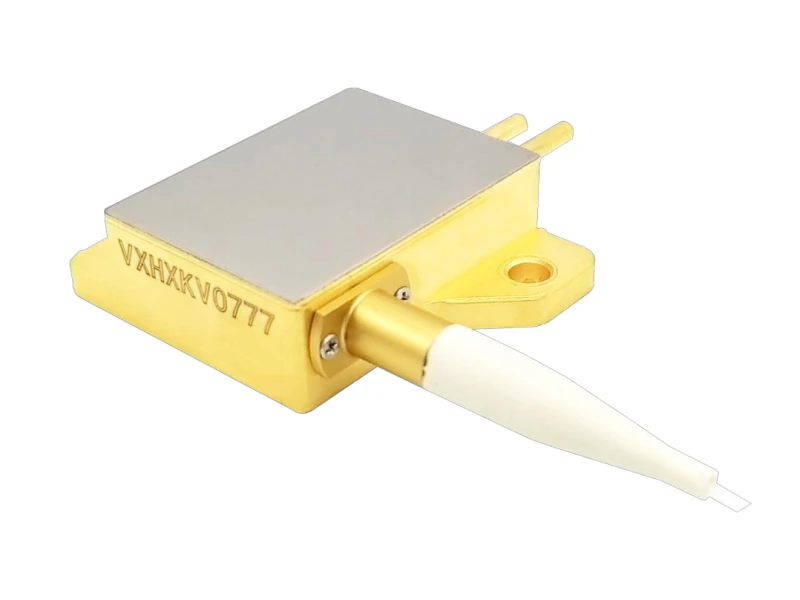

15W 915nm 105μm Fiber Coupled Power Diode Laser
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 915 nm |
| Output Power: | 15000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | Not Specified |
| Output Power: | 15 W |
| Center Wavelength: | 915 nm |
| 95% Power NA: | 0.14 - |
| Core Diameter: | Min:102 Typ:105 Max:108 μm |
| Numerical Aperture: | Min:0.2 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.0 Typ:1.2 m |
| Operating Current: | 18.5 A |
| Operating Voltage: | 1.9 V |
| Conversion Efficiency: | 48 % |
Download Data Sheet
Features
- 15W Output Power: Provides stable and reliable 15W power for demanding applications
- 915nm Center Wavelength: Ensures optimal performance for industrial, medical, and research uses
- 105μm Core Diameter: Guarantees efficient light transmission with minimal loss
- Numerical Aperture (NA) of 0.22: Delivers focused beam output for precision tasks
- 1.2m Pigtail Length: Offers easy integration into various optical systems
- Low Operating Current and Voltage: Energy-efficient operation with typical values of 1.9A and 1.0V
- High Conversion Efficiency: Maximizes power utilization for optimal performance
Applications
- Optical Communications: Ideal for integration into optical network systems for signal transmission
- Material Processing: Suitable for precision cutting, engraving, and other industrial laser processes
- Medical Laser Applications: Effective in medical treatments requiring precise wavelength control and power stability
- Research and Development: Supports advanced experimentation and testing in scientific laboratories
Frequently Asked Questions
What is the maximum output power of the 15W 915nm Fiber Coupled Power Diode Laser?
What is the center wavelength of this diode laser?
What is the core diameter of the fiber?
What is the numerical aperture (NA) of the fiber?
What is the typical operating current and voltage?
What is the pigtail length of the fiber?
How efficient is the power conversion?
What are the typical applications for this diode laser?
What is the 95% power NA for the laser?
Is the laser suitable for integration into optical systems?
