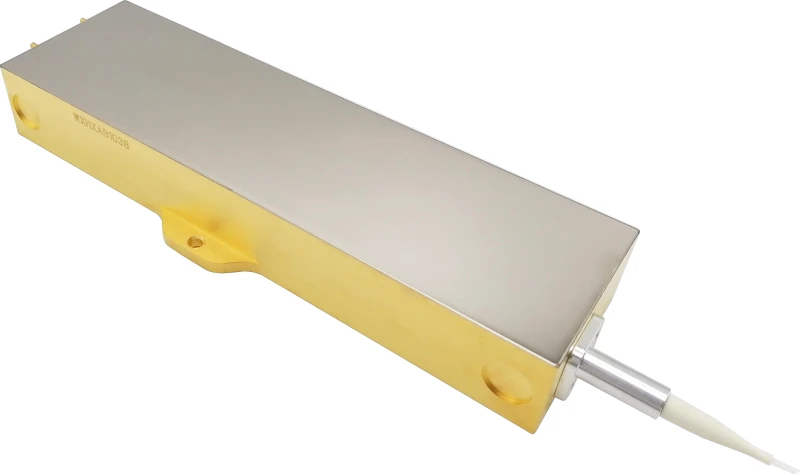

130W 808nm 200μm Fiber Coupled Diode Laser

Name: 130W 808nm 200μm Fiber Coupled Diode Laser
Brand: GKER Photonics
Availability: InStock

Description

The 130W 808nm 200μm Fiber Coupled Diode Laser is a high-performance fiber-coupled power diode laser designed to deliver robust and stable laser output for demanding applications. With an impressive output power of 130 watts and a center wavelength of 808 nm, this diode laser is ideal for use in various industrial, biomedical, and research settings. Its narrow spectral width of 5 nm (FWHM) ensures precise wavelength stability and performance consistency.

The laser features a core diameter of 200 μm and a numerical aperture (NA) of 0.22, optimizing light coupling and transmission efficiency. The pigtail length of 2.0 meters provides flexibility in system integration. Equipped with SC/SMA905 connectors, the GK-808130200S integrates seamlessly with existing optical systems.

This diode laser operates with a typical current of 10.0 A and voltage of 48 V, and boasts a conversion efficiency of 31%, making it an efficient choice for applications requiring high optical power and efficiency. This diode laser is engineered for reliability, delivering excellent performance across a range of applications.

Specifications

Laser Type:	Continuous Wave (CW)
Fiber Type:	Multi-Mode
Wavelength:	808 nm
Output Power:	130000 mW
Fiber Core Diamater:	200 um
Fiber Cladding Diameter:	Not Specified
Output Power:	130 W
Center Wavelength:	808 nm
Spectral Width(FWHM):	5 nm
95% Power NA:	0.17 -
Core Diameter:	Min:196 Typ:200 Max:204 μm
Numerical Aperture:	Min:0.20 Typ:0.22 Max:0.24 -
Pigtail Length:	2.0 m
Connector:	SC/SMA905 -
Operating Current:	10.0 A
Operating Voltage:	31 V
Conversion Efficiency:	48 %

Download Data Sheet

Features

High Output Power: Delivers up to 130 watts for demanding applications

Precise Wavelength: Center wavelength of 808 nm for targeted performance

Narrow Spectral Width: 5 nm FWHM for stable and accurate wavelength control

Efficient Light Coupling: Core diameter of 200 μm and NA of 0.22

Flexible Integration: 2.0-meter pigtail length for versatile system setup

Robust Connectivity: SC/SMA905 connectors for reliable optical coupling

Efficient Operation: Conversion efficiency of 31% for optimal power utilization

Applications

Industrial Processing: Ideal for high-power laser cutting, welding, and material processing

Biomedical Research: Suitable for applications such as phototherapy and laser-induced fluorescence

Scientific Instrumentation: Useful in spectroscopy and other research applications requiring high-intensity light

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

GKER Photonics

On FindLight:

since 2024

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the maximum output power of this diode laser?

The laser can deliver up to 130 watts of optical power, making it suitable for high-power applications requiring robust performance.

What is the center wavelength of this fiber-coupled diode laser?

The laser operates at a center wavelength of 808 nanometers (nm), which is ideal for various medical and industrial applications.

What is the spectral width (FWHM) of the laser?

The laser features a spectral width (Full Width at Half Maximum, FWHM) of 5 nanometers (nm), ensuring a narrow emission band for precise wavelength control.

What is the core diameter of the fiber?

The fiber used with this laser has a core diameter of 200 micrometers (μm), which facilitates efficient power delivery and compatibility with various fiber optic systems.

What is the numerical aperture of the fiber?

The fiber has a numerical aperture (NA) of 0.22, allowing for good light collection and coupling efficiency, which is crucial for maintaining high performance.

What is the pigtail length of the laser?

The pigtail length of the laser is 2.0 meters, providing flexibility in system integration and ensuring adequate distance for optimal placement.

What type of connector is used?

The laser is equipped with SC/SMA905 connectors, ensuring compatibility with standard fiber optic interfaces and simplifying integration into existing setups.

What is the operating current?

The laser operates with a current of 10.0 amperes (A), which should be taken into account for power supply and cooling requirements.

What is the operating voltage?

The operating voltage of the laser is 48 volts (V), which should be matched with appropriate power supplies for stable operation.

What is the conversion efficiency of the laser?

The laser has a conversion efficiency of 31%, indicating how effectively electrical power is converted into optical power. This efficiency is crucial for minimizing energy losses and optimizing performance.
