Description

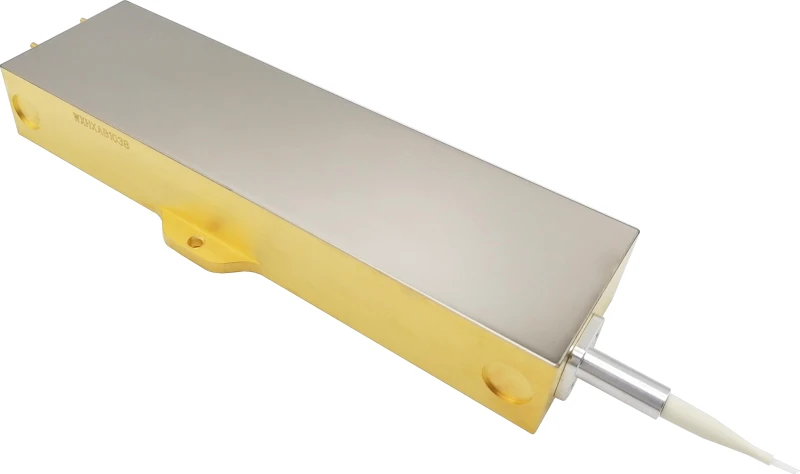

The 120W 888nm 200μm Fiber-Coupled Power Diode Laser is engineered for high-performance applications requiring efficient and reliable laser sources. Operating at a wavelength of 888 nm, this diode laser delivers up to 120 watts of continuous-wave optical power through a 200 μm core fiber with a numerical aperture (NA) of 0.22. Its design ensures optimal coupling efficiency and stability, making it an ideal choice for demanding industrial and scientific applications.
120W 888nm 200μm Fiber Coupled Power Diode Laser
Specifications
Laser Type: | Continuous Wave (CW) |
---|---|
Fiber Type: | Multi-Mode |
Wavelength: | 888 nm |
Output Power: | 120000 mW |
Fiber Core Diamater: | 200 um |
Fiber Cladding Diameter: | Not Specified |
Output Power: | 120 W |
Center Wavelength: | 888 nm |
Spectral Width(FWHM): | Typ:0.5 Max:1.0 nm |
95% Power NA: | 0.16 - |
Core Diameter: | Min:196 Typ:200 Max:204 μm |
Numerical Aperture: | Min:0.20Typ:0.22 Max:0.24 - |
Pigtail Length: | 2.0 m |
Connector: | SC/SMA905 - |
Operating Current: | 10.0 A |
Operating Voltage: | 26.5 V |
Conversion Efficiency: | 48 % |
Wavelength Stabilized Current Range: | Min:5.0 Typ:10.0 A |
Features
- High Output Power: Delivers up to 120W of continuous-wave optical power, suitable for demanding applications.
- Optimized Wavelength: Operates at 888 nm, ideal for efficient pumping of neodymium-doped solid-state lasers.
- Fiber-Coupled Design: Equipped with a 200 μm core diameter fiber and 0.22 numerical aperture, facilitating easy integration into various optical systems.
- Feedback Protection: Incorporates protection mechanisms against back reflections in the 1020–1200 nm range, enhancing reliability.
- Compact and Robust Construction: Designed for stability and durability in industrial environments.
Applications
- Solid-State Laser Pumping: Efficiently pumps Nd:YAG and other neodymium-doped lasers for industrial and medical applications.
- Ultrafast Laser Systems: Serves as a reliable pump source for ultrafast lasers used in precision machining and scientific research.
- Medical Laser Equipment: Supports high-power laser systems employed in medical procedures requiring precise energy delivery.
- Industrial Processing: Suitable for applications like laser cutting, welding, and engraving where high power and stability are essential.
