1064 Single-Frequency DBR Fiber-Coupled Optically Packaged IsoBragg

Name: 1064 Single-Frequency DBR Fiber-Coupled Optically Packaged IsoBragg
Brand: Photodigm Inc.
Availability: InStock

Description

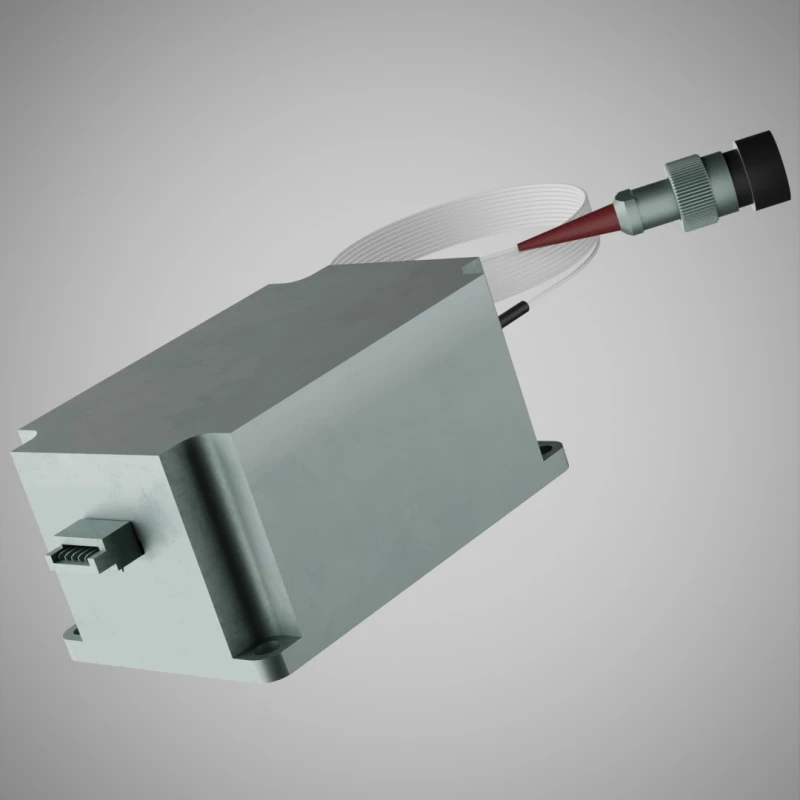

The Photodigm IsoBragg™ 1064nm is an advanced fiber-coupled, optically isolated Distributed Bragg Reflector (DBR) laser diode package, designed for high stability, precision, and superior power performance. It features single-frequency operation with a single spatial mode beam, ensuring excellent spectral purity and low noise for demanding applications.

Built on Photodigm’s proprietary Gallium Arsenide (GaAs) DBR laser technology, the IsoBragg™ incorporates a ≥30 dB optical isolator, significantly reducing back reflections and improving performance in sensitive environments. The output is efficiently coupled into a 1-meter-long polarization-maintaining (PM) fiber, terminated with an FC/APC male connector for seamless integration.

This DBR diode laser offers a power range of 50 to 200 mW, a low numerical aperture (NA) of 0.12, and precision temperature control via an integrated TEC module. Its compact aluminum 6061 housing (58.0 x 27.0 x 20.0 mm) ensures durability while maintaining portability.

Ideal for applications such as high-resolution spectroscopy, quantum optics, and metrology, this NIR 1064nm DBR laser diode is a powerful solution for researchers and engineers requiring high stability, low noise, and superior optical isolation.

Specifications

Laser Type:	Continuous Wave (CW)
Fiber Type:	Single Mode
Wavelength:	1064 nm
Output Power:	50 mW
Fiber Core Diamater:	Not Specified
Fiber Cladding Diameter:	Not Specified
Optical Isolation:	≥ 30 dB
Fiber Bend Radius:	25 mm
Fiber Numerical Aperture:	0.12
Dimensions:	58.0 x 27.0 x 20.0 mm
Nominal Laser Linewidth @ LIV Current:	500 kHz

Download Data Sheet

Features

Fiber-Coupled Single-Frequency Diode Laser: This NIR diode laser ensures high spectral purity and stability with a single spatial mode beam

Integrated Optical Isolation (≥30 dB): Reduces back reflections and enhances performance in precision applications

Compact and Robust Aluminum Housing: 58.0 x 27.0 x 20.0 mm package ensures durability and portability

High Power Output (50–200 mW): Adjustable power range for flexible application requirements

Polarization-Maintaining Fiber (PMF): 1-meter fiber length with an FC/APC connector for stable polarization

Integrated Thermoelectric Cooler (TEC): Precision temperature control for enhanced laser stability

Low Numerical Aperture (NA 0.12): Provides a well-controlled and focused beam output

Applications

High-Resolution Spectroscopy: This 1064nm laser diode module delivers ultra-stable and narrow-linewidth output for accurate spectroscopic measurements

Quantum Optics & Atomic Physics: Enables precise optical experiments in cold atom trapping and manipulation

Metrology & Precision Sensing: Used in interferometry, laser-based measurements, and high-accuracy instrumentation

Laser Communications: Provides a stable and coherent light source for free-space and fiber-optic communication systems

Biomedical Imaging & Diagnostics: Supports high-resolution imaging techniques requiring narrow-linewidth, low-noise lasers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Photodigm Inc.

On FindLight:

since 2019

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the primary function of the Photodigm IsoBragg™ 1064nm diode laser?

The Photodigm IsoBragg™ 1064nm DBR diode laser is designed to provide single-frequency, high-stability laser output for applications that require precise, low-noise performance. It features optical isolation (≥30 dB) to minimize back reflections, ensuring reliable operation in sensitive systems like spectroscopy, metrology, and quantum optics.

What is the power output range of the IsoBragg™ 1064nm diode laser?

The IsoBragg™ 1064nm DBR diode laser offers an adjustable power range from 50 mW to 200 mW, allowing flexibility for a variety of precision applications. The power range is dependent on the chosen device architecture and wavelength, providing tailored solutions for different experimental setups.

How is the IsoBragg™ laser diode coupled to the fiber?

The IsoBragg™ 1064nm laser diode is coupled into a 1-meter-long polarization-maintaining (PM) fiber, which ensures the preservation of polarization during transmission. The fiber is terminated with an FC/APC male connector, facilitating easy integration with external systems.

What are the handling precautions for the IsoBragg™ laser diode module?

The IsoBragg™ DBR laser diode module is sensitive to electrostatic discharge (ESD), so it should be handled in a grounded work area using an anti-static wrist strap. Additionally, it must be stored in an antistatic container with all leads shorted together to protect the device from damage.

What are the key benefits of the optical isolator in the IsoBragg™ DBR diode laser?

The integrated optical isolator in the IsoBragg™ diode laser provides ≥30 dB of isolation, effectively blocking any back reflections from the laser output. This minimizes interference with the laser's performance, improves signal integrity, and enhances the overall stability of sensitive optical systems, making it ideal for high-precision applications.
