Description
The GKER Photonics Co., Ltd 1000W 976nm Fiber Coupled Power Diode Laser (GK-9761000250) is a high-performance laser designed for demanding industrial and scientific applications. With an impressive output power of 1000W, this diode laser delivers exceptional performance and reliability. It operates at a center wavelength of 976nm, ensuring precise and effective wavelength-specific applications.
This diode laser features a large 250μm fiber core diameter and a numerical aperture (NA) of 0.22, optimizing the coupling efficiency and beam quality. The 95% power NA of 0.20 enhances the laser's ability to deliver consistent power with minimal divergence. The unit's pigtail length is 1.5 meters, offering flexibility in system integration.
With a high typical conversion efficiency of 48%, the laser provides energy-efficient operation. It operates reliably at a current of 33A and a voltage of 78V, making it suitable for continuous use in high-demand environments. This diode laser is ideal for applications such as high-power fiber laser pumping, material processing, and advanced research requiring high stability and precision.
Designed for both industrial and research environments, the GK-9761000250 offers robust performance and reliability, making it a versatile choice for a variety of high-power laser applications.

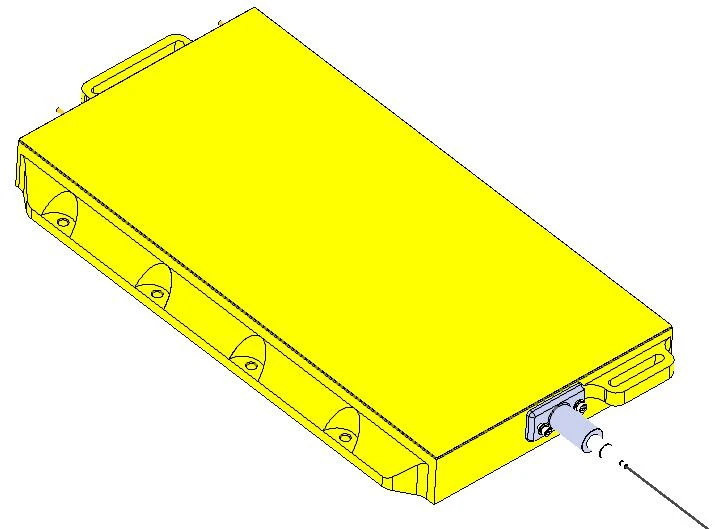

1000W 976nm 250μm Fiber Coupled Power Diode Laser
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 976 nm |
| Output Power: | 1000000 mW |
| Fiber Core Diamater: | 250 um |
| Fiber Cladding Diameter: | Not Specified |
| Output Power: | 1000 W |
| Center Wavelength: | 976 nm |
| 95% Power NA: | 0.185 NA |
| Core Diameter: | Min:245 Typ:250 Max:255 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 NA |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 33 A |
| Operating Voltage: | 78 V |
| Conversion Efficiency: | 48 % |
Download Data Sheet
Features
- High Output Power: Provides a robust 1000W maximum output for demanding applications
- Precise Wavelength Control: Operates at a center wavelength of 976nm for targeted energy delivery
- Efficient Fiber Coupling: Features a 250μm fiber core diameter and a numerical aperture (NA) of 0.22
- Enhanced Beam Quality: Achieves a 95% power NA of 0.20 for consistent and stable beam performance
- Energy-Efficient Operation: High typical conversion efficiency of 48% for reduced energy consumption
- Robust Electrical Design: Operates at 33A current and 78V voltage, ensuring reliability in continuous use
Applications
- Fiber Laser Pumping: Ideal for powering high-performance fiber lasers in various industrial and research settings
- Material Processing: Suitable for precision tasks such as cutting, welding, and surface treatment
- Advanced Research: Supports cutting-edge research applications requiring high-power and stability
- Medical Devices: Designed for high-power applications in medical technology and treatments
Frequently Asked Questions
What is the maximum output power of this diode laser?
At what center wavelength does this laser operate?
What is the core diameter of the fiber?
What is the numerical aperture (NA) of the fiber?
What is the 95% power numerical aperture?
What is the typical conversion efficiency of the laser?
What is the operating current for this diode laser?
What is the operating voltage?
How long is the fiber pigtail?
What are the key applications for this diode laser?
