Description
The HL8337MG/38MG is a high-performance GaAlAs laser diode designed to deliver exceptional infrared lasing capabilities. Operating at a typical wavelength of 830nm, this laser diode is engineered to provide a consistent optical output power of 50mW. Its robust construction allows it to function efficiently within a wide temperature range of -10°C to +60°C, making it suitable for various demanding environments. The laser diode is housed in a compact φ5.6mm package, ensuring ease of integration into diverse systems.
One of the standout features of the HL8337MG/38MG is its low operating voltage, with a maximum of 2.4V. This efficiency is complemented by its single transverse mode and TE mode oscillation, which contribute to its reliable performance. The laser diode's beam divergence is well-controlled, with parallel and perpendicular junctions exhibiting divergence angles of 6-12° and 18-26° respectively, ensuring precise and focused beam delivery.
Designed with versatility in mind, the HL8337MG/38MG is an ideal choice for applications requiring a stable and powerful infrared light source. Its capabilities make it suitable for use in sensor applications, night vision, machine vision, and as a light source for various optical equipment. The laser diode's reliability and performance are backed by rigorous quality standards, ensuring it meets the demands of high-quality and high-reliability applications.

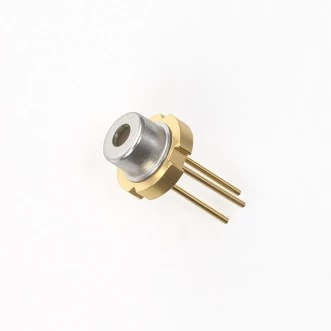

USHIO HL8337MG/HL8338MG 830nm 50mW GaAlAs Laser Diode
Specifications
| Center Wavelength: | 0.83 um |
|---|---|
| Output Power: | 50 mW |
| Operation Temperature: | -10~+60°C |
| Operating Voltage: | 2.4V Max. |
| Package: | φ5.6mm |
| Optical Output Power (Absolute Maximum Ratings): | 50mW |
| LD Reverse Voltage: | 2V |
| PD Reverse Voltage: | 30V |
| Operating Temperature: | -10 ~ +60°C |
| Storage Temperature: | -40 ~ +85°C |
| Threshold Current: | 20-40mA |
| Operating Current: | 75-100mA |
| Operating Voltage: | 1.9-2.4V |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- High Optical Output: Provides up to 50mW CW at 830nm for reliable infrared applications.
- Wide Operating Temperature: Functions efficiently between -10°C and +60°C.
- Low Voltage Operation: Requires a maximum of 2.4V for energy-efficient performance.
- Compact Package: φ5.6mm design for easy integration into optical systems.
- Single Transverse Mode: Ensures high beam quality and TE mode oscillation for precision.
- Low Beam Divergence: Parallel: 6–12°, Perpendicular: 18–26°, enabling focused illumination.
Applications
- Sensor Applications: Ideal for optical sensors requiring stable infrared sources.
- Night Vision Systems: Suitable for infrared illumination in low-light conditions.
- Machine Vision: Provides consistent illumination for automated optical inspection.
- Optical Equipment Light Source: Compatible with laboratory and industrial optical instruments.
Frequently Asked Questions
What are some applications for the USHIO HL8337MG/HL8338MG laser diode?
What is the lasing wavelength of the laser diode?
What is the operating temperature range for the USHIO HL8337MG/HL8338MG laser diode?
What is the optical output power of the laser diode?
What is the package size of the laser diode?
Got more questions? Use the inquiry form to ask the supplier directly.
