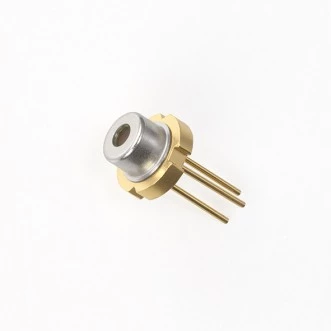

USHIO HL63193MG 638nm 700mW AlGaInP Laser Diode
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2020
Description
The HL63193MG is a high-performance laser diode designed to deliver exceptional visible light output at a typical wavelength of 638nm. This laser diode is engineered with advanced AlGaInP technology, ensuring robust and reliable performance. With an impressive optical output power of 700mW in continuous wave (CW) mode, the HL63193MG is suitable for a variety of demanding applications.
Its multi-transverse mode operation enhances the beam quality, making it ideal for precision tasks. Encased in a compact 5.6mm package, the HL63193MG is designed for ease of integration into various systems. Its small form factor does not compromise its performance, as it maintains a high level of efficiency and stability. The laser diode operates efficiently within a temperature range of -10°C to +40°C, ensuring consistent performance across different environmental conditions. This makes it a versatile choice for both indoor and outdoor applications.
The HL63193MG is particularly well-suited for use in laser projectors and show lasers, where high visibility and precision are paramount. Additionally, it serves as a reliable light source for optical equipment, providing consistent and high-quality illumination. Its TM mode oscillation further enhances its performance, ensuring that it meets the rigorous demands of professional and industrial applications. With its combination of power, precision, and compact design, the HL63193MG is a standout choice for those seeking a high-quality laser diode solution.
USHIO HL63193MG 638nm 700mW AlGaInP Laser Diode
Specifications |
|
|---|---|
| Center Wavelength: | 0.638 um |
| Output Power: | 700 mW |
| Small Package: | φ 5.6 mm |
| Optical Output Power (1): | 700 mW |
| Operating Temperature: | -10 ~ +40 °C |
| Storage Temperature: | -40 ~ +85 °C |
| Threshold Current: | 200 - 250 mA |
| Operating Current: | 820 - 1000 mA |
| Operating Voltage: | 2.2 - 2.6 V |
| Beam Divergence Parallel To The Junction: | 19 - 20 ° |
| Beam Divergence Perpendicular To The Junction: | 35 - 45 ° |
Features
- Visible Light Output: 638nm (Typ.) for clear and precise visibility.
- High Optical Output Power: 700mW (Continuous Wave) for robust performance.
- Multi Transverse Mode: Ensures versatile application capabilities.
- Compact Design: Small package with a diameter of 5.6mm for easy integration.
- TM Mode Oscillation: Provides stable and efficient laser operation.
Applications
- Laser Projector: Ideal for use in laser projection systems due to its high optical output power and visible light output.
- Show Laser: Suitable for show laser applications, providing bright and vibrant red light.
- Light Source of Optical Equipments: Can be used as a reliable light source in various optical devices and equipment.
