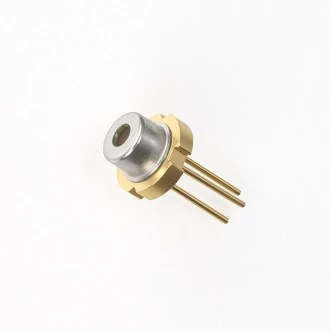

USHIO HL40085G 405nm 1000mW Laser Diode
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2020
Description
The HL40085G is a high-performance violet laser diode designed to deliver exceptional optical output power of 1,000mW at a typical wavelength of 405nm. This laser diode is engineered for precision and efficiency, making it an ideal choice for applications requiring high-intensity violet light. Its robust design ensures reliable performance, with a low operating current of 1,000mA and a maximum operating voltage of 5.0V. The built-in monitor photodiode enhances its functionality by providing real-time feedback on the laser's performance, ensuring optimal operation.
Encased in a compact 9.0mm package, the HL40085G is designed for versatility and ease of integration into various systems. Its multiple transverse modes and TE mode oscillation contribute to its superior beam quality, making it suitable for a wide range of industrial and scientific applications. The laser diode's ability to produce direct imaging for printed circuit boards (PCBs) highlights its precision and adaptability in complex environments.
With its advanced optical and electrical characteristics, the HL40085G stands out as a reliable component for industries that demand high-quality laser performance. Its ability to maintain stable operation across a range of temperatures, from 0 to +30°C, ensures consistent output even in challenging conditions. This makes it an excellent choice for applications in display technology, bio-medical fields, and other sectors where precision and reliability are paramount.
USHIO HL40085G 405nm 1000mW Laser Diode
Specifications |
|
|---|---|
| Center Wavelength: | 0.405 um |
| Output Power: | 1000 mW |
| Operating Voltage: | 5.0 V |
| Package: | 9.0mm |
| Optical Output Power (Max): | 1,100 mW |
| LD Reverse Voltage: | 2 V |
| Operating Temperature: | 0 ~ +30 °C |
| Storage Temperature: | -40 ~ +85 °C |
| Threshold Current: | 320 mA |
| Beam Divergence Parallel: | 13° |
| Beam Divergence Perpendicular: | 42° |
| Monitor Current: | 1.3 mA |
Features
- High Optical Power: Delivers up to 1,000 mW continuous-wave output for intense violet light applications.
- 405 nm Wavelength: Precise violet lasing suitable for imaging and display applications.
- Low Operating Current & Voltage: Efficient operation at 1,000 mA typical current and 5 V max voltage.
- Built-in Monitor PD: Enables accurate monitoring and control of output power.
- Compact Package: 9 mm diameter package supports easy integration into systems.
- Multiple Transverse Modes: Provides flexibility for various laser applications.
- TE Mode Oscillation: Ensures stable laser emission characteristics.
Applications
- Direct PCB Imaging: Suitable for high-precision circuit board marking and imaging.
- Industrial Processing: Ideal for applications requiring high-intensity violet light.
- Display Technologies: Enables advanced display systems with precise color output.
- Bio & Medical Applications: Supports biomedical instrumentation requiring compact, high-power violet lasers.
Frequently Asked Questions
The USHIO HL40085G laser diode can be used for direct imaging for PCB, industry, display, bio & medical applications.
The USHIO HL40085G laser diode has a built-in Monitor PD.
The lasing wavelength of the USHIO HL40085G laser diode is 405nm Typ.
The optical output power of the USHIO HL40085G laser diode is 1,000mW (CW).
The typical operating current of the USHIO HL40085G laser diode is 1,000mA Typ.
